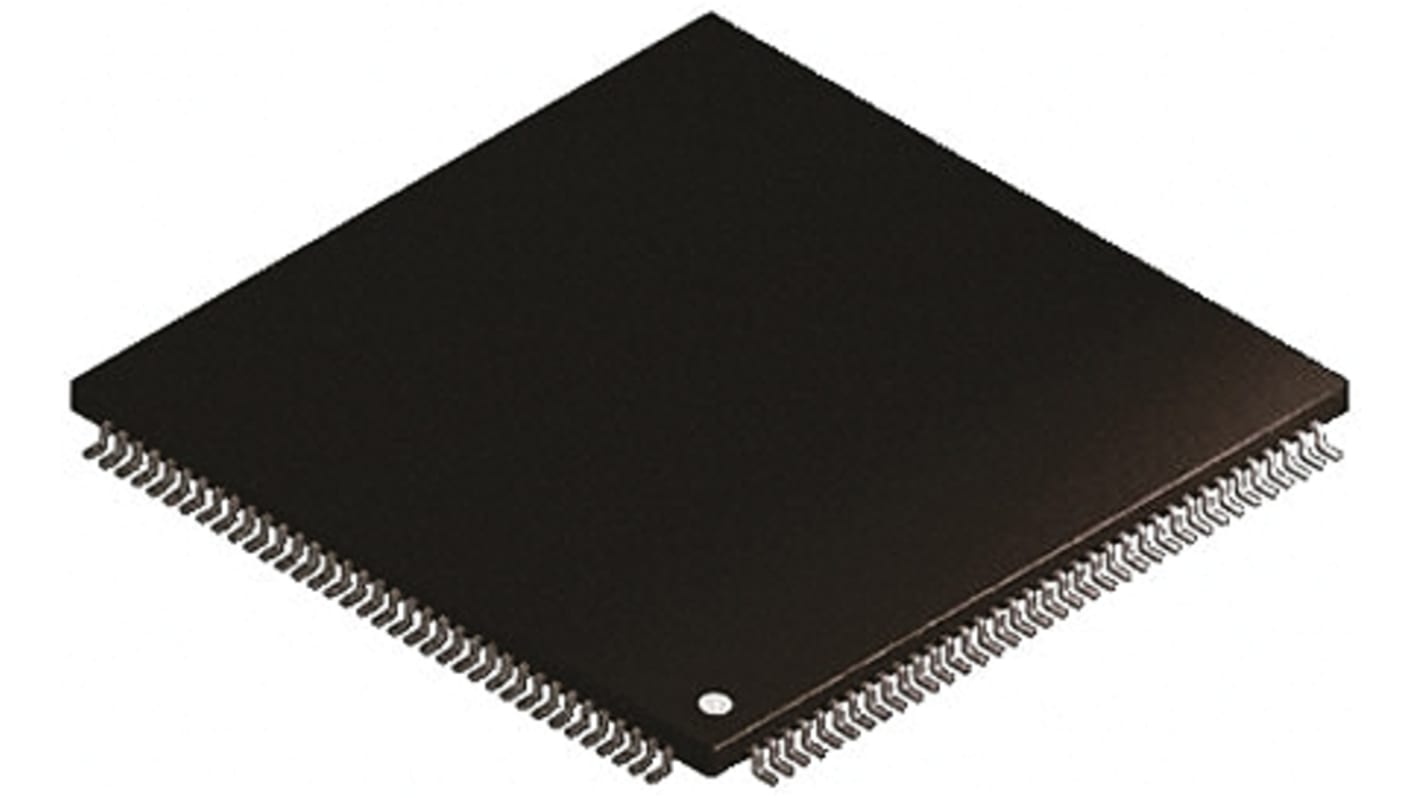

STMicroelectronics, 32bit ARM Cortex M3, STM32F2 Microcontroller, 120MHz, 512 kB Flash, 144-Pin LQFP

Brand

STMicroelectronics

Family Name

STM32F2

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Device Core

ARM Cortex M3

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

120MHz

RAM Size

128 + 4 kB

USB Channels

1 x OTG

Number of PWM Units

1 x 16 bit

Number of SPI Channels

3

Number of UART Channels

2

Number of I2C Channels

3

Typical Operating Supply Voltage

1.8 → 3.6 V

Number of CAN Channels

2

Number of USART Channels

4

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

RISC

Length

20.2mm

Program Memory Type

Flash

Height

1.45mm

Number of LIN Channels

0

Width

20.2mm

Number of PCI Channels

0

Number of Ethernet Channels

0

Maximum Operating Temperature

+85 °C

Number of ADC Units

3

Pulse Width Modulation

1 (6 x 16 bit)

Dimensions

20.2 x 20.2 x 1.45mm

Maximum Number of Ethernet Channels

0

ADCs

24 x 12 bit
