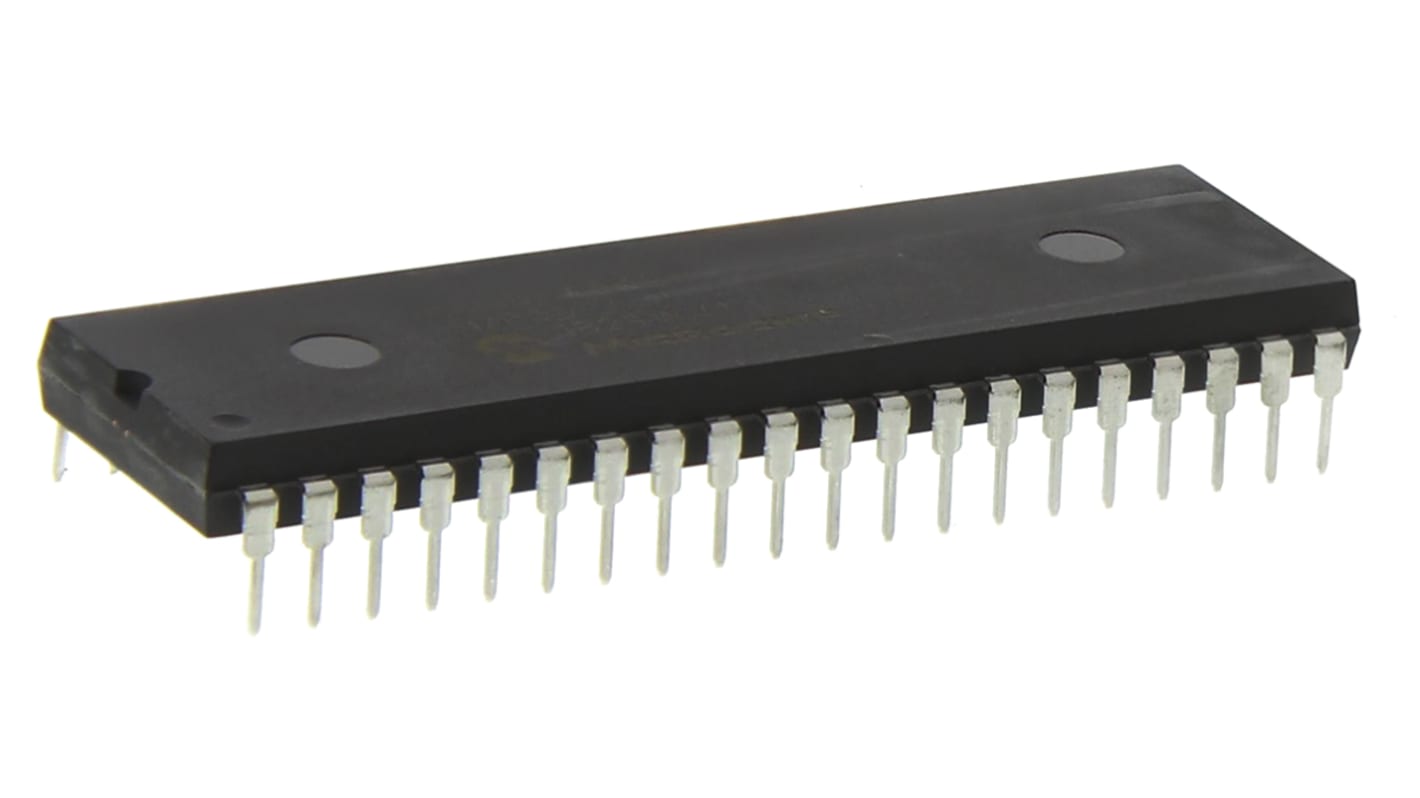

Microchip, 8bit PIC, PIC18F Microcontroller, 64MHz, 32 kB, 256 B Flash, 40-Pin PDIP

Brand

Microchip

Family Name

PIC18F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

40

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

32 kB, 256 B

Maximum Frequency

64MHz

RAM Size

1.536 kB

USB Channels

0

Number of PWM Units

2

Number of SPI Channels

1

Number of UART Channels

0

Number of CAN Channels

0

Number of USART Channels

1

Typical Operating Supply Voltage

1.8 → 3.6 V

Number of I2C Channels

1

Instruction Set Architecture

RISC

Maximum Number of Ethernet Channels

0

Dimensions

2.095 x 0.58 x 0.195in

ADCs

14 x 10 bit

Length

53.21mm

Pulse Width Modulation

1 (CCP), 1 (ECCP)

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Width

0.58in

Minimum Operating Temperature

-40 °C

Height

4.95mm

Program Memory Type

Flash

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0
