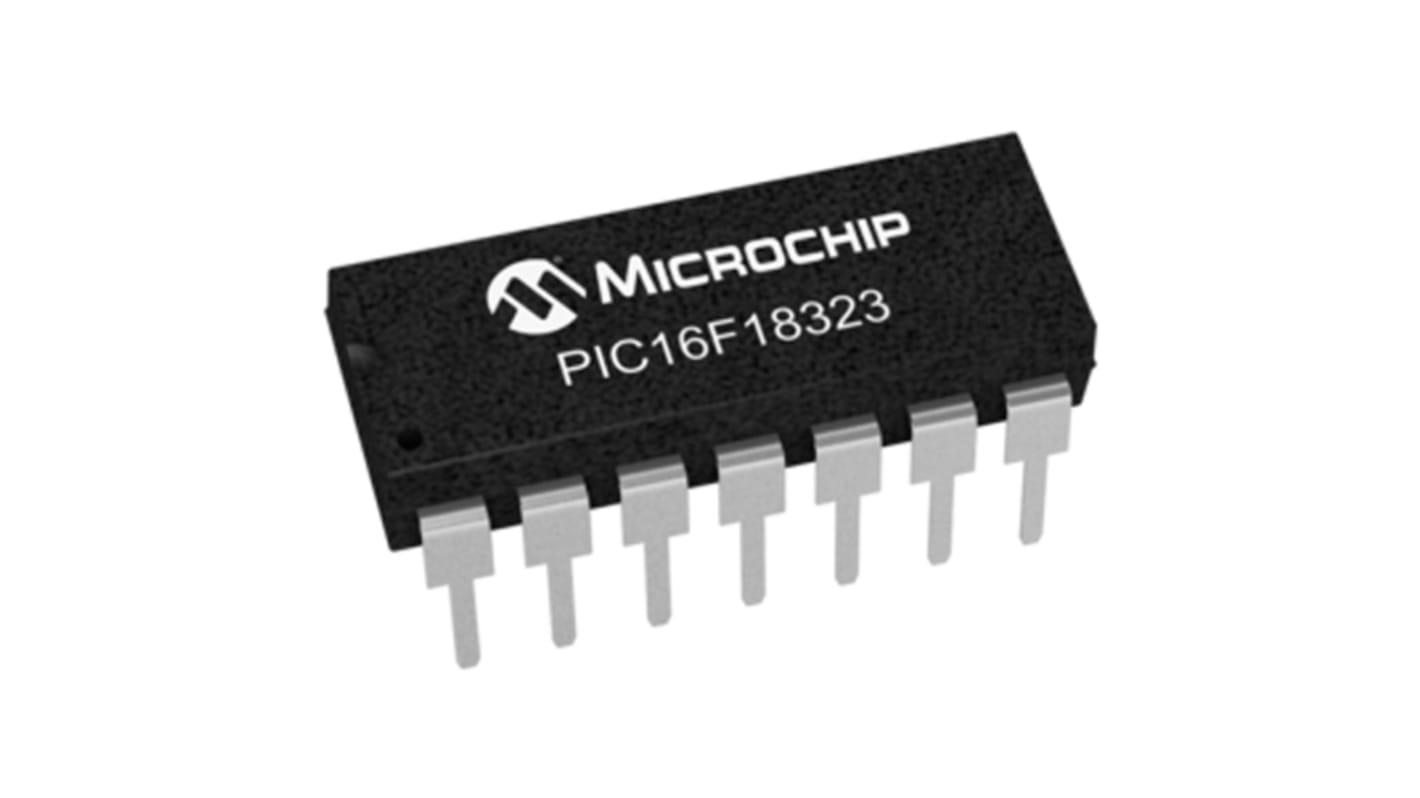

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 3.5 kB Flash, 14-Pin PDIP

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า

ดู Microcontrollers ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
RS Stock No.:
165-4142
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
PIC16F18323-I/P
ผู้ผลิต:
Microchip
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Microchip

Family Name

PIC16F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

14

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

3.5 kB

Maximum Frequency

32MHz

RAM Size

256 B

USB Channels

0

Number of PWM Units

1 x 10 bit

Number of SPI Channels

1

Number of CAN Channels

0

Number of I2C Channels

1

Number of UART Channels

1

Number of USART Channels

1

Typical Operating Supply Voltage

2.3 → 5.5 V

Dimensions

0.77 x 0.28 x 0.21in

Width

0.28in

Pulse Width Modulation

1 (2 x 10 bit)

Number of Ethernet Channels

0

Number of LIN Channels

1

Height

5.33mm

Number of PCI Channels

0

Length

19.56mm

Program Memory Type

Flash

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

RISC

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Minimum Operating Temperature

-40 °C

ADCs

11 x 10 bit

COO (Country of Origin):
TH

PIC16F18313/18323 8-Bit Microcontrollers


The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture in various pin and package options.

PIC16F18313/18323 Microcontrollers are based on Microchip’s Enhanced Mid-Range core and include new Low-Power features. IDLE and DOZE modes have been added along with Peripheral Module Disable, this allows peripherals to be removed from the power rail and clock tree for zero power leakage.

Microcontroller Features


32 MHz Max. CPU Speed
49 Instructions
16 Level Hardware Stack
Interrupt Capability
Internal Oscillator
6 or 12 I/O Pins
Power-On Reset (POR)
Configurable Power-Up Timer (PWRTE)
Brown-Out Reset (BOR) and Low-Power Brown-Out Reset (LPBOR)
Windowed Watchdog Timer (WWDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Low voltage Programming (LVP)
Peripheral Pin Select (PPS)

Power-Saving Features


Peripheral Module Disable (PMD) – Ability to disable unused peripherals for minimal power consumption
SLEEP, IDLE and DOZE Low-Power Modes
Sleep mode: 50 nA @ 1.8 V (typical)
Watchdog Timer: 500 nA @ 1.8 V (typical)
Secondary Oscillator: 500 nA @ 32 kHz
Operating Current: 8 μA @ 32 kHz 1.8 V (typical)

Peripheral Features


10-bit Analogue-to-Digital Converter – 5 or 11 channels depending on model
5-Bit Digital-to-Analogue Converter (DAC)
Two Comparators (COMP) - 1 or 2 depending on model
Voltage Reference
Two Configurable Logic Cells (CLC)
Complementary Waveform Generator (CWG)
Two Capture/Compare/PWM (CCP) modules
Two 10-bit PWMs
Numerically Controlled Oscillator (NCO)
EUSART – RS-232, RS-485 and LIN compatible
Master Synchronous Serial Port (MSSP) – I2C, SMBus, PMBus compatible
Data Signal Modulator (DSM)
Two 8-bit Timers with Hardware Limit Timer (HLT)
One 16-bit Timer

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
