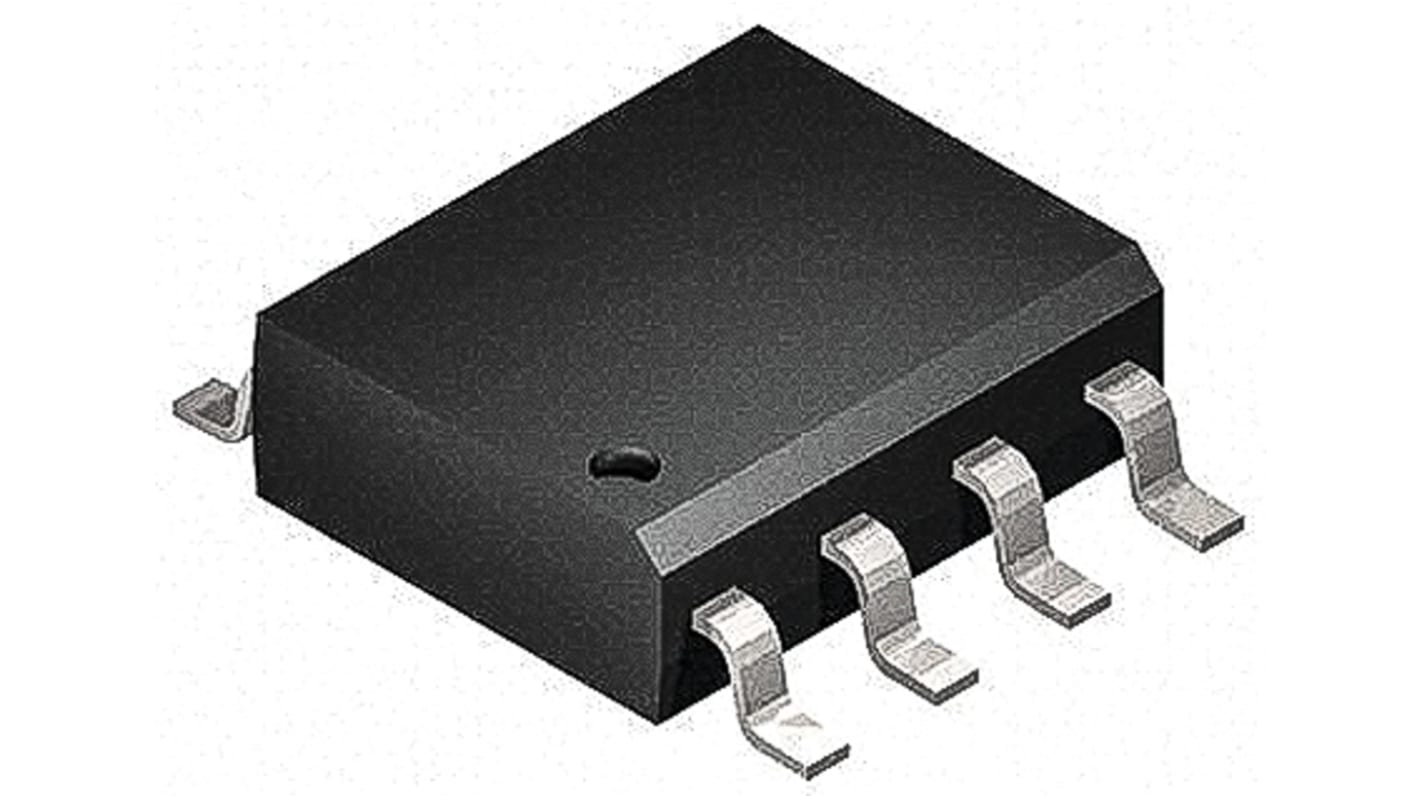

STMicroelectronics, 8bit STM8, STM8S Microcontroller, 16MHz, 8 kB Flash, 8-Pin SOIC
- RS Stock No.:
- 163-7340
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8S001J3M3TR
- ผู้ผลิต:
- STMicroelectronics
ยอดรวมย่อย (1 รีล รีลละ 2500 ชิ้น)*
THB45,922.50
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB49,137.50
(รวมภาษีมูลค่าเพิ่ม)
ชิ้น | ต่อหน่วย | ต่อม้วน* |
|---|---|---|
| 2500 - 2500 | THB18.369 | THB45,922.50 |
| 5000 - 7500 | THB17.965 | THB44,912.50 |
| 10000 + | THB17.579 | THB43,947.50 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 163-7340
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM8S001J3M3TR
- ผู้ผลิต:
- STMicroelectronics
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Family Name | STM8S | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Device Core | STM8 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 8 kB | |
| Maximum Frequency | 16MHz | |
| RAM Size | 1 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 1 | |
| Typical Operating Supply Voltage | 2.95 → 5.5 V | |
| Number of USART Channels | 0 | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 0 | |
| Instruction Set Architecture | Harvard | |
| Dimensions | 5 x 4 x 1.5mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| ADCs | 1 x 10 bit | |
| Length | 5mm | |
| Minimum Operating Temperature | -40 °C | |
| Number of ADC Units | 1 | |
| Height | 1.5mm | |
| Maximum Operating Temperature | +125 °C | |
| Number of PCI Channels | 0 | |
| Width | 4mm | |
| Program Memory Type | Flash | |
| Number of LIN Channels | 1 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Family Name STM8S | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Device Core STM8 | ||
Data Bus Width 8bit | ||
Program Memory Size 8 kB | ||
Maximum Frequency 16MHz | ||
RAM Size 1 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 1 | ||
Number of UART Channels 1 | ||
Typical Operating Supply Voltage 2.95 → 5.5 V | ||
Number of USART Channels 0 | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 0 | ||
Instruction Set Architecture Harvard | ||
Dimensions 5 x 4 x 1.5mm | ||
Maximum Number of Ethernet Channels 0 | ||
Number of Ethernet Channels 0 | ||
ADCs 1 x 10 bit | ||
Length 5mm | ||
Minimum Operating Temperature -40 °C | ||
Number of ADC Units 1 | ||
Height 1.5mm | ||
Maximum Operating Temperature +125 °C | ||
Number of PCI Channels 0 | ||
Width 4mm | ||
Program Memory Type Flash | ||
Number of LIN Channels 1 | ||
Flexible clock control, 3 master clock sources
External clock input
Internal, user-trimmable 16 MHz RC
Internal low-power 128 kHz RC
Clock security system with clock monitor
Power management
Low-power modes (wait, active-halt, halt)
Switch-off peripheral clocks individually
Permanently active, low-consumption power-on and power-down reset
Interrupt management
Nested interrupt controller with 32 interrupts
Up to 5 external interrupts
Timers
