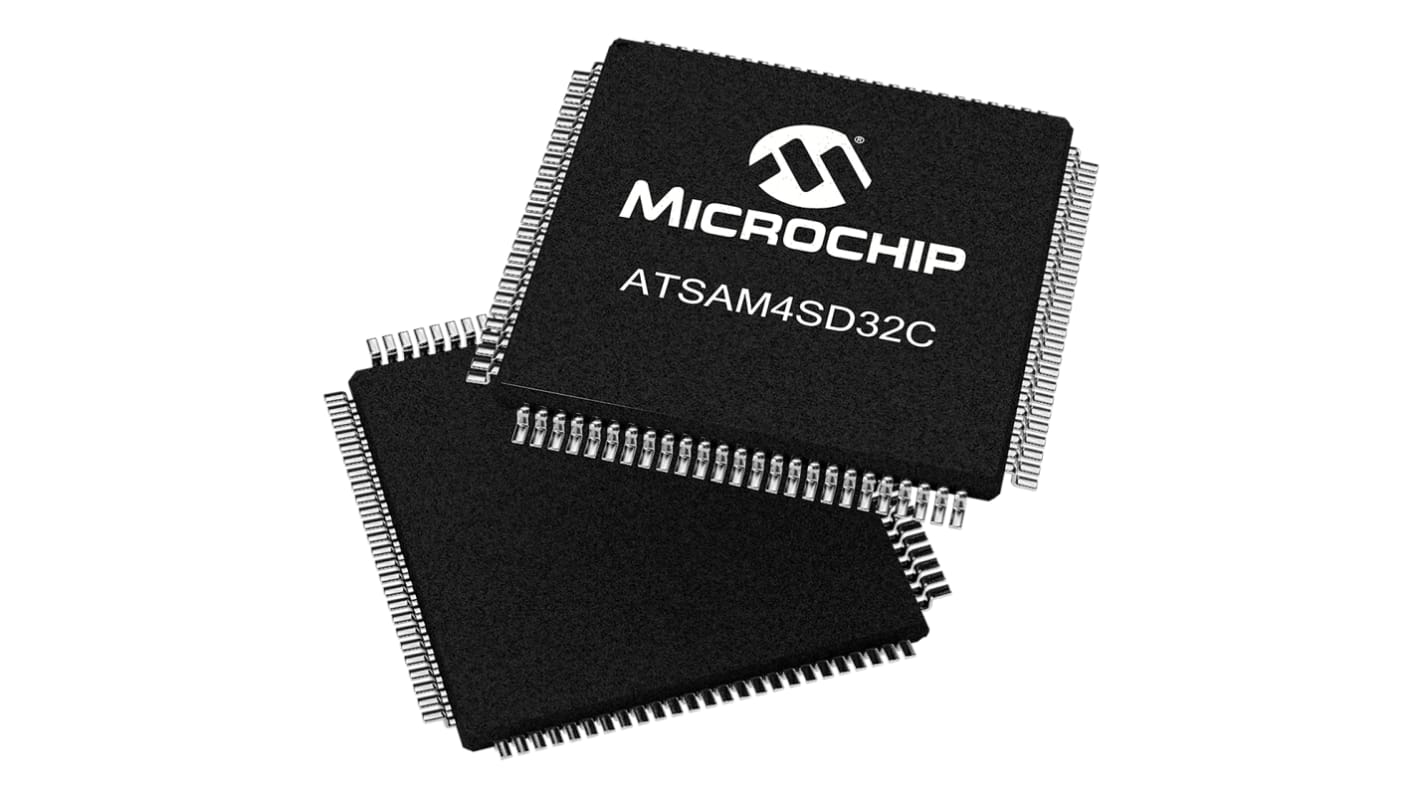

Microchip, 32bit ARM Cortex M4, SAM4S Microcontroller, 120MHz, 2.048 MB Flash, 100-Pin LQFP
- RS Stock No.:
- 133-0935
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAM4SD32CA-AU
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 ชิ้น)*
THB429.88
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB459.97
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- จะส่งได้หลังจากวันที่ 29 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB429.88 |
| 10 - 24 | THB421.28 |
| 25 - 99 | THB412.85 |
| 100 + | THB404.60 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 133-0935
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAM4SD32CA-AU
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAM4S | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | ARM Cortex M4 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 2.048 MB | |
| Maximum Frequency | 120MHz | |
| RAM Size | 160 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 3 | |
| Number of UART Channels | 2 | |
| Number of I2C Channels | 2 | |
| Typical Operating Supply Voltage | 1.2 V | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 2 | |
| Height | 1.45mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| ADCs | 16 x 12 bit | |
| Width | 14mm | |
| Dimensions | 14 x 14 x 1.45mm | |
| Pulse Width Modulation | 1 (4 x 16 bit) | |
| Length | 14mm | |
| Number of LIN Channels | 0 | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name SAM4S | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core ARM Cortex M4 | ||
Data Bus Width 32bit | ||
Program Memory Size 2.048 MB | ||
Maximum Frequency 120MHz | ||
RAM Size 160 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 3 | ||
Number of UART Channels 2 | ||
Number of I2C Channels 2 | ||
Typical Operating Supply Voltage 1.2 V | ||
Number of CAN Channels 0 | ||
Number of USART Channels 2 | ||
Height 1.45mm | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
ADCs 16 x 12 bit | ||
Width 14mm | ||
Dimensions 14 x 14 x 1.45mm | ||
Pulse Width Modulation 1 (4 x 16 bit) | ||
Length 14mm | ||
Number of LIN Channels 0 | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
SMART SAM4S ARM® Cortex-M3 Microcontrollers
Features & Benefits of the SAM4S Microcontrollers
•Excellent support for capacitive touch applications (QTouch® library software available)
•Tamper detection
•120 MHz maximum speed
•Up to 2048 KB of flash
•Up to 160 KB of SRAM
•Real Time Clock
•Temperature Sensor
•MCI for SDIO/SD/MMC
•External bus interface with a static memory controller that connects to SRAM, PSRAM, NOR Flash, LCD Module, NAND Flash, 2 USARTs, 2 UARTs, 2 TWIs, 3 SPIs, 1 I2S, PWM timer, 30channel 16-bit timers, 12-bit ADC and 12-bit DAC
•3 low power modes
•Suitable for 1.62 V to 3.6 V power supply
