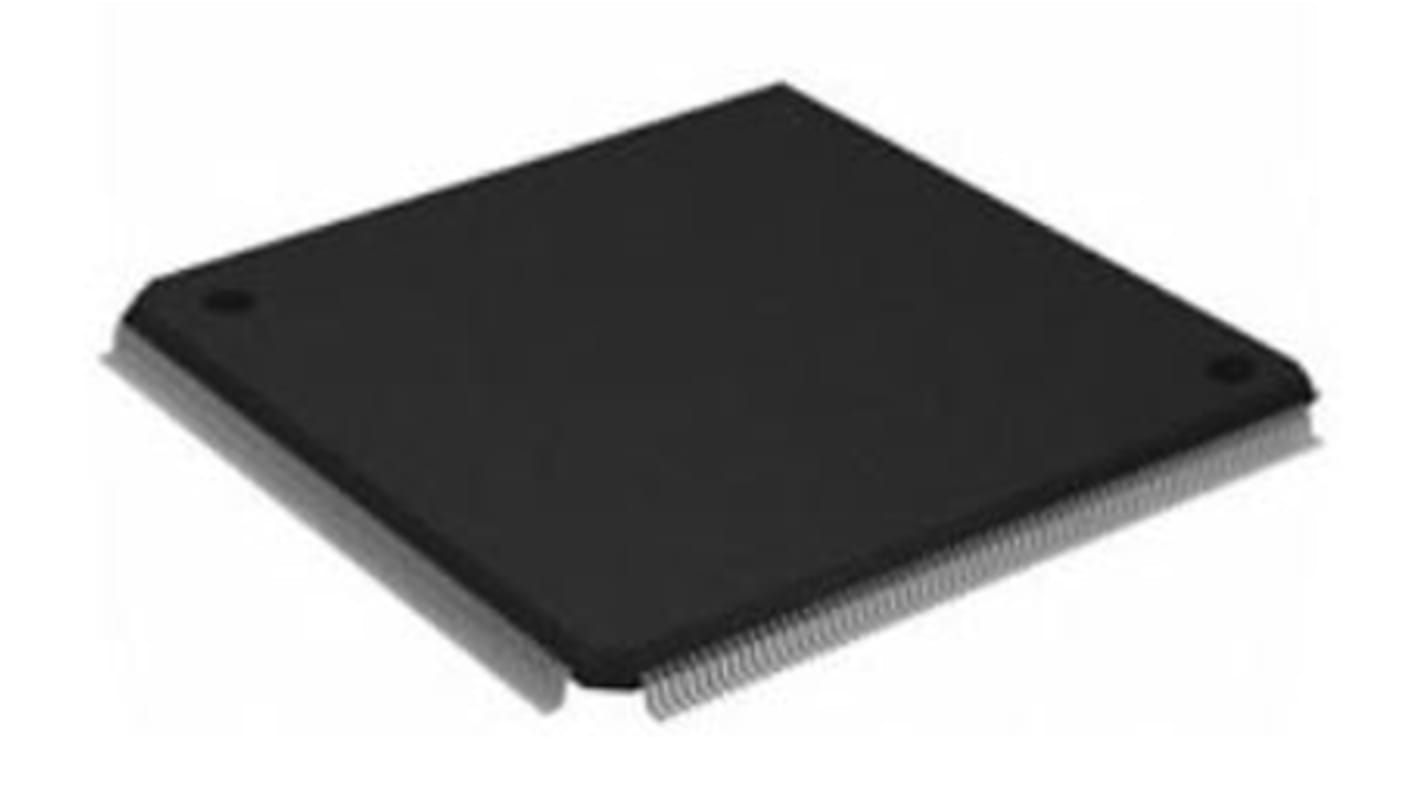

Renesas Electronics, 32bit SH2A-FPU, SuperH Microcontroller, 266MHz ROMLess, 256-Pin LFQFP
- RS Stock No.:
- 121-6895P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R5S72690P266FP#VZ
- ผู้ผลิต:
- Renesas Electronics
ยอดรวมย่อย 1 ชิ้น (จัดส่งในถาด)*
THB1,126.39
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,205.24
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB1,126.39 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 121-6895P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- R5S72690P266FP#VZ
- ผู้ผลิต:
- Renesas Electronics
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | SuperH | |
| Package Type | LFQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 256 | |
| Device Core | SH2A-FPU | |
| Data Bus Width | 32bit | |
| Maximum Frequency | 266MHz | |
| RAM Size | 2.5 MB | |
| USB Channels | 1 x Host | |
| Number of PWM Units | 0 | |
| Typical Operating Supply Voltage | 3 → 3.6 V | |
| Height | 1.55mm | |
| ADCs | 1 (8 x 10 bit) | |
| Length | 28.1mm | |
| Number of ADC Units | 1 | |
| Program Memory Type | ROMLess | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 28.1 x 28.1 x 1.55mm | |
| Instruction Set Architecture | RISC | |
| Width | 28.1mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name SuperH | ||
Package Type LFQFP | ||
Mounting Type Surface Mount | ||
Pin Count 256 | ||
Device Core SH2A-FPU | ||
Data Bus Width 32bit | ||
Maximum Frequency 266MHz | ||
RAM Size 2.5 MB | ||
USB Channels 1 x Host | ||
Number of PWM Units 0 | ||
Typical Operating Supply Voltage 3 → 3.6 V | ||
Height 1.55mm | ||
ADCs 1 (8 x 10 bit) | ||
Length 28.1mm | ||
Number of ADC Units 1 | ||
Program Memory Type ROMLess | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 28.1 x 28.1 x 1.55mm | ||
Instruction Set Architecture RISC | ||
Width 28.1mm | ||
- COO (Country of Origin):
- JP
SH Family Microcontrollers, Renesas
The Renesas SuperH device family of Microcontrollers presents an embedded RISC 32-bit architecture. The operating systems allow better efficiency in their development. They can be used in a wide range of applications including Inverters, graphical user Interfaces and high definition video surveillance. The SuperH family supports device families offering upward scalability and re-useable software. Renesas Super H controller Flash type is suitable for a fast real-time response for instance in high-speed applications and the SuperH controller ROMless series is designed for more general purpose real time connectivity.
· Flash device: 16kB to 1MB of integrated MONOS Flash
· ROMless device: does not have an MMU making them suitable for running RTOS and Linux
· ROMless device: does not have an MMU making them suitable for running RTOS and Linux
SuperH Family Microcontrollers, Renesas Electronics
