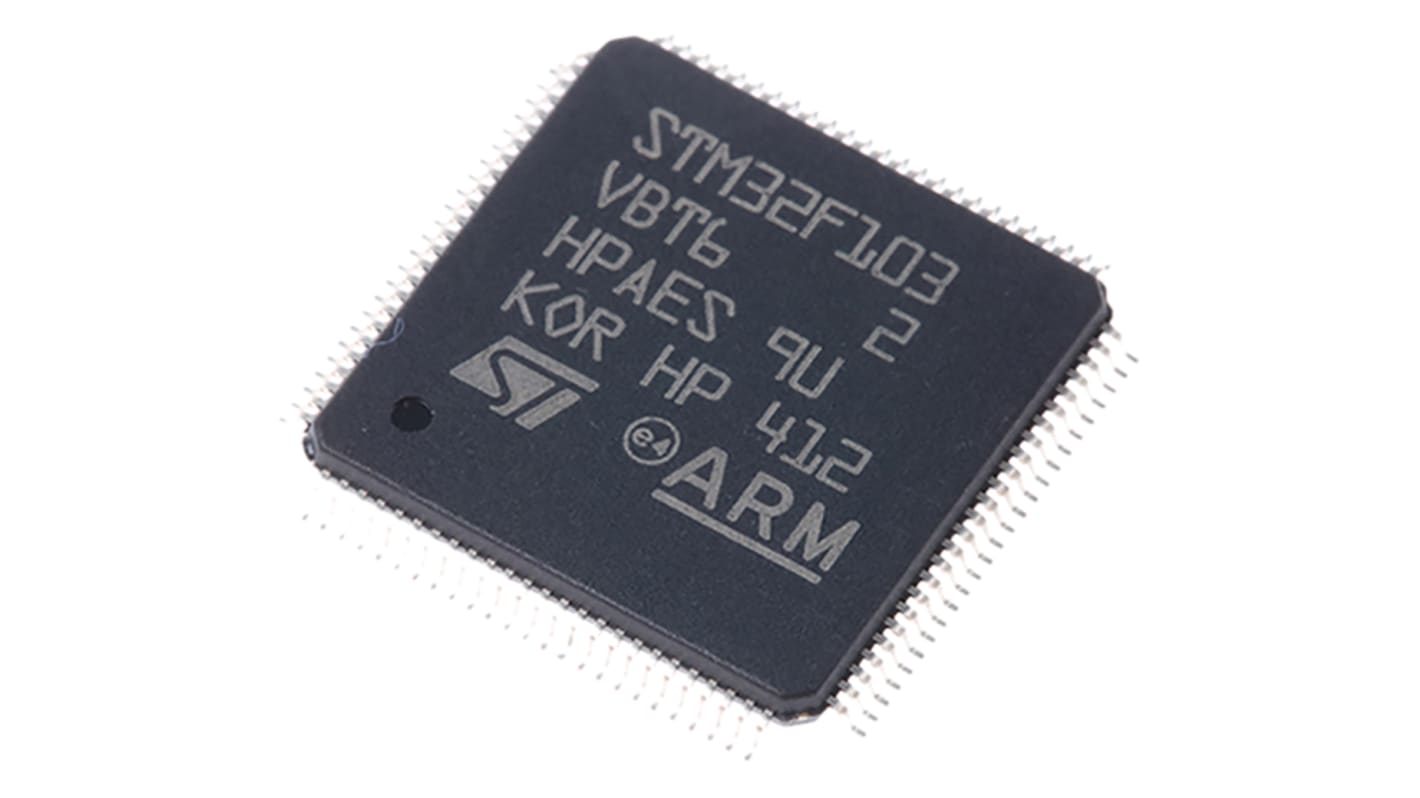

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 128 kB Flash, 100-Pin LQFP

RS Stock No.:: 402-245
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: STM32F103VBT6
ผู้ผลิต / Manufacturer:: STMicroelectronics

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 128 kB Flash, 100-Pin LQFP

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each**

THB328.31

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB351.29

(รวมภาษีมูลค่าเพิ่ม)

431 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

เช็คสต็อกแบบเรียลไทม์ / Real time qty checker

ชิ้น	ต่อหน่วย
1 - 22	THB328.31
23 - 44	THB320.09
45 +	THB315.17

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 402-245
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: STM32F103VBT6
ผู้ผลิต / Manufacturer:: STMicroelectronics

STM32F103 Series Microcontrollers, STMicroelectronics

STMicroelectronics devices STM32F103 Cortex-M3 core with 72 MHz CPU speed and up to 1 MB of Flash. Comprising of motor control peripherals plus CAN and USB full speed interfaces. The STM32 series ARM Cortex-M3 32 bit Flash microcontroller operates low power, low voltage and combines great performance with real time capabilities. In a range of package types available for your embedded application. The MCU architecture has an easy to use STM32 platform and will work in applications including motor drives; PC and gaming; HVAC and Industrial applications.

32-bit RISC
Pin to pin software compatible
SRAM up to 96 Kb
Flash up to 1MB
Power Supply: 2 V to 3.6 V
Temperature ranges: -40 to +85 °C or -40 to +105 °C

The STMicroelectronics STM32F103xx medium-density performance line family incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces up to two I2Cs and SPIs, three USARTs, an USB and a CAN. It operate from a 2.0 to 3.6 V power supply. They are available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

Dual-sample and hold capability
2 watchdog timers
CRC calculation unit, 96-bit unique ID
7-channel DMA controller
Single-cycle multiplication and hardware division

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

STM32F1 Series 32-Bit ARM® Cortex®-M3 Microcontrollers, STMicroelectronics

The STM32 family of 32-bit Flash Microcontrollers is based on the breakthrough ARM Cortex™-M3 core - a core specifically developed for embedded applications. The STM32 family benefits from the Cortex™-M3 architectural enhancements including the Thumb-2 instruction set to deliver improved performance with better code density, significantly faster response to interrupts, all combined with industry leading power consumption.

Benefits
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	STMicroelectronics
	Family Name	STM32F1
	Package Type	LQFP
	Mounting Type	Surface Mount
	Pin Count	100
	Device Core	ARM Cortex M3
	Data Bus Width	32bit
	Program Memory Size	128 kB
	Maximum Frequency	72MHz
	RAM Size	20 kB
	USB Channels	1 x Device
	Number of PWM Units	1 x 16 bit
	Number of SPI Channels	2
	Number of I2C Channels	2
	Typical Operating Supply Voltage	2 → 3.6 V
	Number of USART Channels	3
	Number of UART Channels	0
	Number of CAN Channels	1
	Pulse Width Modulation	1(16 bit) (Motor Control)
	Maximum Number of Ethernet Channels	0
	Width	14.2mm
	ADCs	2(16 x 12 bit)
	Number of ADC Units	2
	Minimum Operating Temperature	-40 °C
	Instruction Set Architecture	RISC
	Maximum Operating Temperature	+85 °C
	Length	14.2mm
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	1.45mm
	Dimensions	14.2 x 14.2 x 1.45mm
	Number of PCI Channels	0
	Program Memory Type	Flash

	เลือกทั้งหมด
	Brand STMicroelectronics
	Family Name STM32F1
	Package Type LQFP
	Mounting Type Surface Mount
	Pin Count 100
	Device Core ARM Cortex M3
	Data Bus Width 32bit
	Program Memory Size 128 kB
	Maximum Frequency 72MHz
	RAM Size 20 kB
	USB Channels 1 x Device
	Number of PWM Units 1 x 16 bit
	Number of SPI Channels 2
	Number of I2C Channels 2
	Typical Operating Supply Voltage 2 → 3.6 V
	Number of USART Channels 3
	Number of UART Channels 0
	Number of CAN Channels 1
	Pulse Width Modulation 1(16 bit) (Motor Control)
	Maximum Number of Ethernet Channels 0
	Width 14.2mm
	ADCs 2(16 x 12 bit)
	Number of ADC Units 2
	Minimum Operating Temperature -40 °C
	Instruction Set Architecture RISC
	Maximum Operating Temperature +85 °C
	Length 14.2mm
	Number of Ethernet Channels 0
	Number of LIN Channels 0
	Height 1.45mm
	Dimensions 14.2 x 14.2 x 1.45mm
	Number of PCI Channels 0
	Program Memory Type Flash

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 72MHz, 128 kB Flash, 100-Pin LQFP
