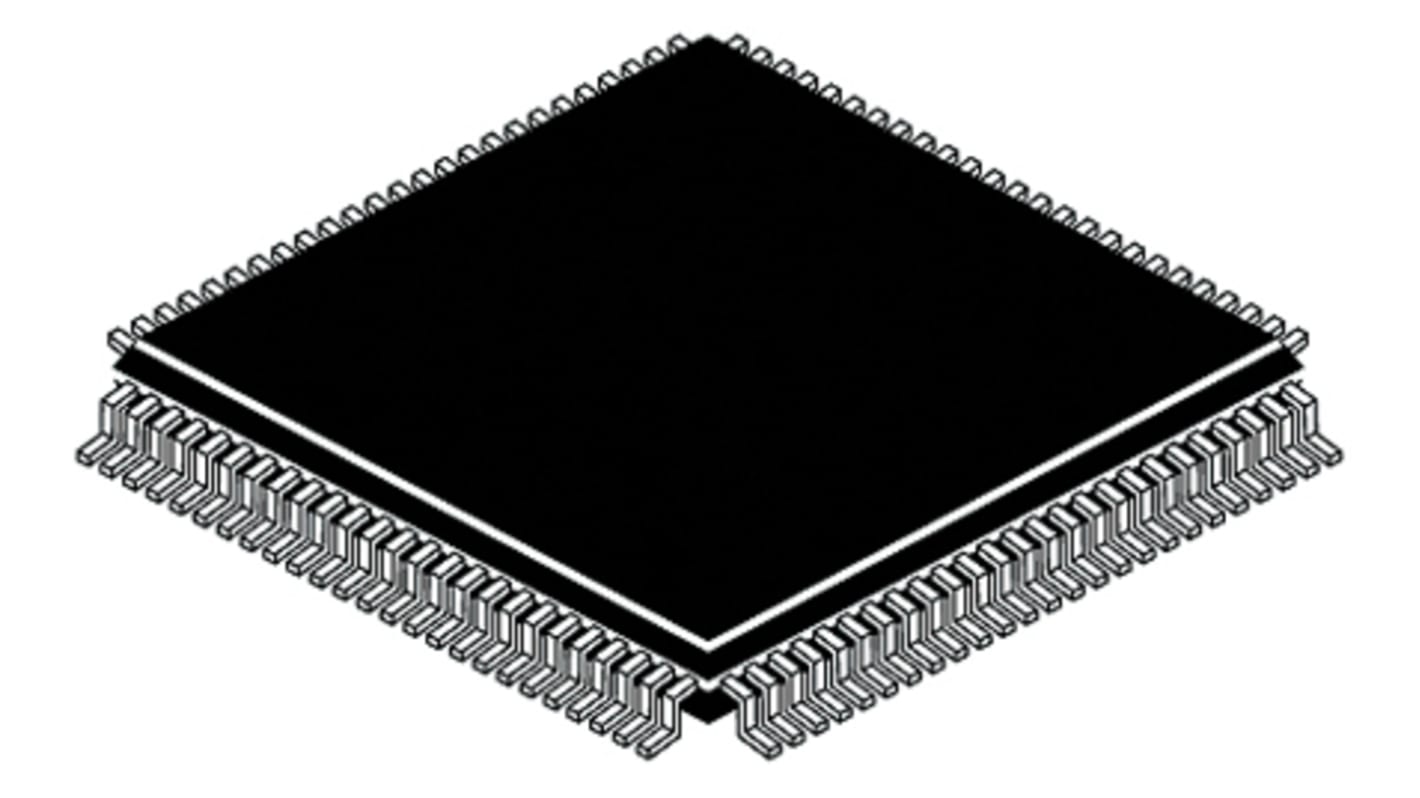

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 8MHz, 256 B, 60 kB Flash, 100-Pin LQFP
- RS Stock No.:
- 218-315
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MSP430F449IPZ
- ผู้ผลิต:
- Texas Instruments
ยอดรวมย่อย (1 ชิ้น)*
THB871.56
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB932.57
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 340 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB871.56 |
| 10 - 49 | THB845.42 |
| 50 - 99 | THB820.06 |
| 100 - 249 | THB801.85 |
| 250 + | THB784.44 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 218-315
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MSP430F449IPZ
- ผู้ผลิต:
- Texas Instruments
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Texas Instruments | |
| Family Name | MSP430 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 100 | |
| Device Core | MSP430 | |
| Data Bus Width | 16bit | |
| Program Memory Size | 256 B, 60 kB | |
| Maximum Frequency | 8MHz | |
| RAM Size | 2 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 2 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 0 | |
| Typical Operating Supply Voltage | 1.8 → 3.6 V | |
| Number of UART Channels | 1 | |
| Number of USART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Number of ADC Units | 1 | |
| Length | 14.2mm | |
| ADCs | 8 x 12 bit | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Instruction Set Architecture | RISC | |
| Width | 14.2mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Pulse Width Modulation | 3 x 16 bit, 7 x 16 bit | |
| Height | 1.45mm | |
| Number of LIN Channels | 0 | |
| Dimensions | 14.2 x 14.2 x 1.45mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Texas Instruments | ||
Family Name MSP430 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core MSP430 | ||
Data Bus Width 16bit | ||
Program Memory Size 256 B, 60 kB | ||
Maximum Frequency 8MHz | ||
RAM Size 2 kB | ||
USB Channels 0 | ||
Number of PWM Units 2 x 16 bit | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 0 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Number of UART Channels 1 | ||
Number of USART Channels 1 | ||
Number of CAN Channels 0 | ||
Number of ADC Units 1 | ||
Length 14.2mm | ||
ADCs 8 x 12 bit | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Instruction Set Architecture RISC | ||
Width 14.2mm | ||
Maximum Number of Ethernet Channels 0 | ||
Pulse Width Modulation 3 x 16 bit, 7 x 16 bit | ||
Height 1.45mm | ||
Number of LIN Channels 0 | ||
Dimensions 14.2 x 14.2 x 1.45mm | ||
MSP430F4x Ultra-Low-Power Microcontrollers with LCD Controller, Texas Instruments
Up to 120KB Flash
Up to 8KB RAM
1.8V to 3.6V operation
Unique peripheral mix, ideal for low power metering and medical applications
Features integrated LCD controllers
5 ultra-low power modes of operation
0.1μA RAM retention
0.7μA real-time clock mode
200μA / MHz active
Fast Wake-Up From Standby Mode in < 6μs
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
