เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Classification	Development Board
	Kit Name	PIC32MM Curiosity
	Technology	MCU
	Device Core	MIPS® MicroAptiv™
	Processor Family Name	PIC
	Processor Part Number	PIC32MM
	Processor Type	MCU

	เลือกทั้งหมด
	Brand Microchip
	Classification Development Board
	Kit Name PIC32MM Curiosity
	Technology MCU
	Device Core MIPS® MicroAptiv™
	Processor Family Name PIC
	Processor Part Number PIC32MM
	Processor Type MCU

PIC32MM XLP Curiosity Board datasheet

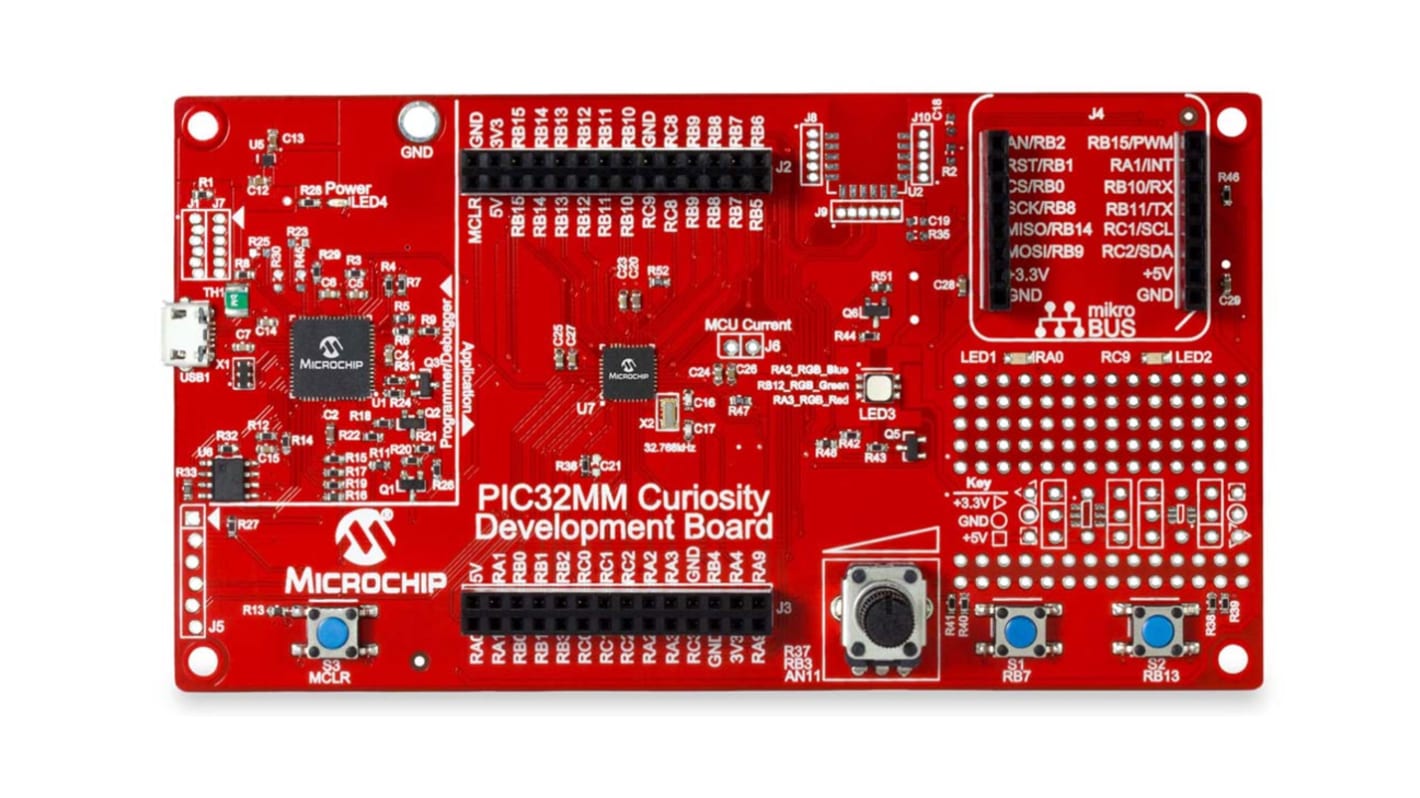

PIC32MM0064GPL036 Curiosity Board

The PIC32MM Curiosity Development Board features the eXtreme Low-Power (XLP), PIC32MM “GPL” family of low-cost microcontrollers. The board is a simple and easy to use platform that facilitates quick PIC32MM evaluation, experimentation and application prototyping.

• 25MHz PIC32MM0064GPL036 32-bit microcontroller with 64KB ECC Flash memory, 8KB RAM

• PICkit On-Board (PKOB) programmer/debugger circuit

• USB micro-B socket for PKOB connection to host PC

• On-board MIC5528 +3.3V LDO regulator

• 3 x User LEDs

• User RGB LED

• 2 x User pushbuttons

• MCLR reset pushbutton

• 10kΩ potentiometer for analogue input

• Prototyping area

• ICSP header for external debugger such as MPLAB REAL ICE or ICD 3/4

• MikroBUS socket for Click expansion board

• 2 x 28-pin GPIO expansion socket headers

• Footprint for optional BM71 Bluetooth LE radio module

• Powered from USB connection

• Full compatibility with MPLAB X IDE, XC32 Compiler and MPLAB Code Configurator

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

PIC32 Development Tools

Microchip PIC32MM Curiosity MCU Development Board DM320101

PIC32MM0064GPL036 Curiosity Board

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
