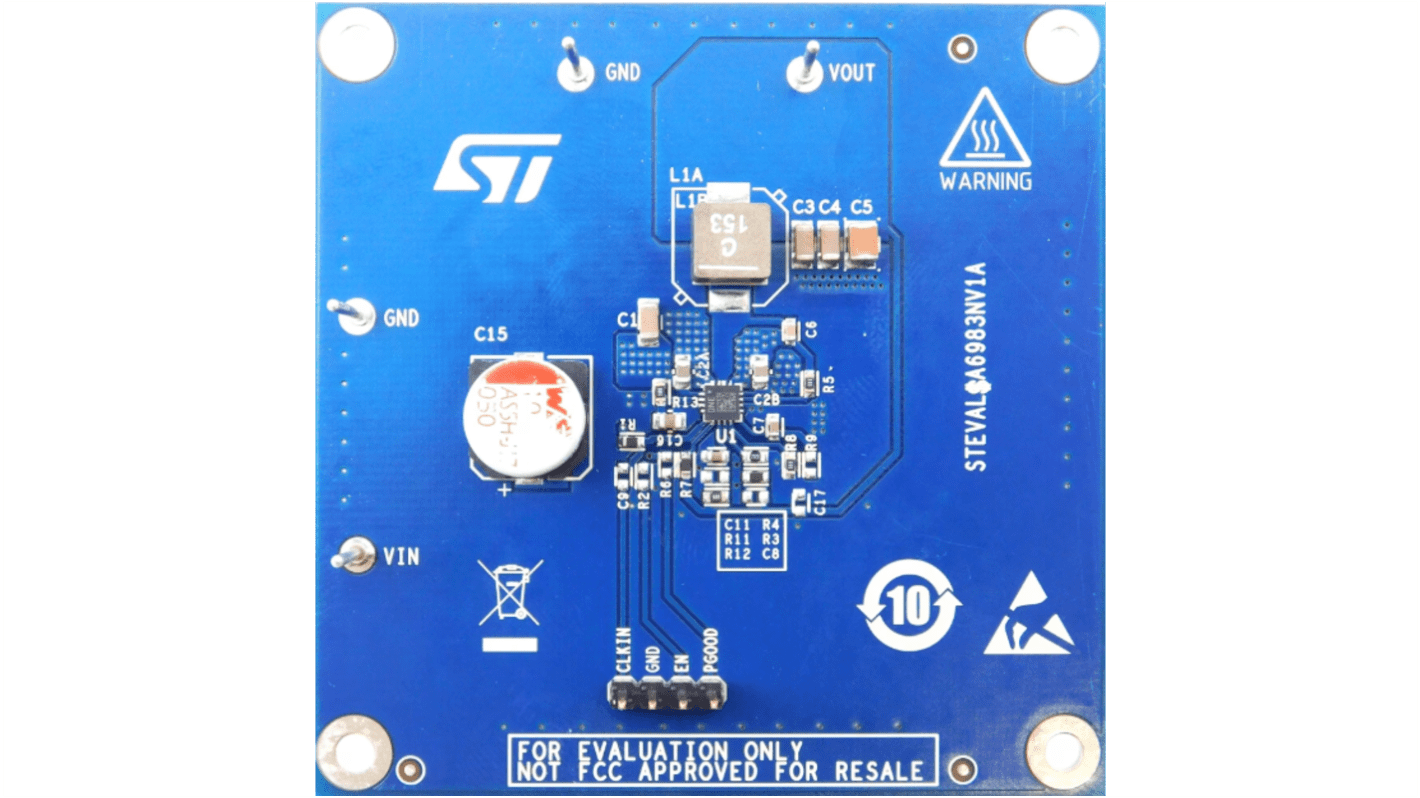

STMicroelectronics Evaluation Board Based On DC-DC Converter Buck Regulator A6983NQTR Evaluation Board Evaluation Board

The STMicroelectronics Evaluation Board based on DC-DC converter buck regulator. This synchronous monolithic step-down regulator is capable of delivering up to 3 A DC to the load. With a wide input voltage range of 3.5 V to 38 V, the device is suitable for a broad range of applications. It features a peak current mode architecture and is packaged in a compact QFN16 with internal compensation, minimizing design complexity and size. It is designed for applications active during car parking, maximizing efficiency at light loads with controlled output voltage ripple.

Internal compensation network
Noise sensitive applications
Internal soft start
High voltage VIN compatible enable
Output overvoltage protection
Output voltage sequencing
Thermal protection
