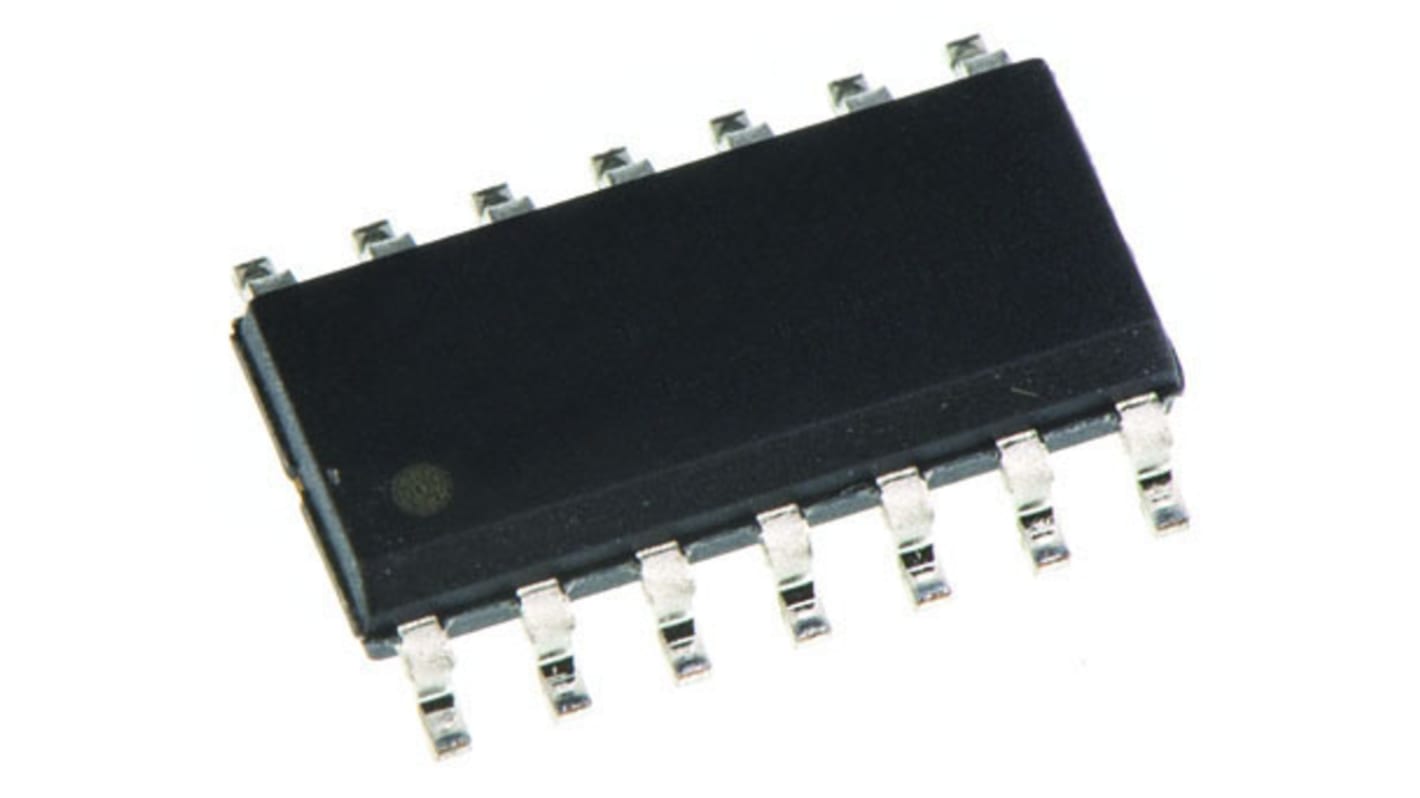

Texas Instruments CD74HC11M96, Triple 3-Input AND Logic Gate, 14-Pin SOIC

Brand

Texas Instruments

Logic Function

AND

Mounting Type

Surface Mount

Number of Elements

3

Number of Inputs per Gate

3

Schmitt Trigger Input

No

Package Type

SOIC

Pin Count

14

Logic Family

HC

Maximum Operating Supply Voltage

6 V

Maximum High Level Output Current

-5.2mA

Maximum Propagation Delay Time @ Maximum CL

100 ns @ 2 V, 17 ns @ 6 V, 20 ns @ 4.5 V

Minimum Operating Supply Voltage

2 V

Maximum Low Level Output Current

5.2mA

Height

1.58mm

Length

8.65mm

Minimum Operating Temperature

-55 °C

Width

3.91mm

Propagation Delay Test Condition

50pF

Dimensions

8.65 x 3.91 x 1.58mm

Maximum Operating Temperature

+125 °C
