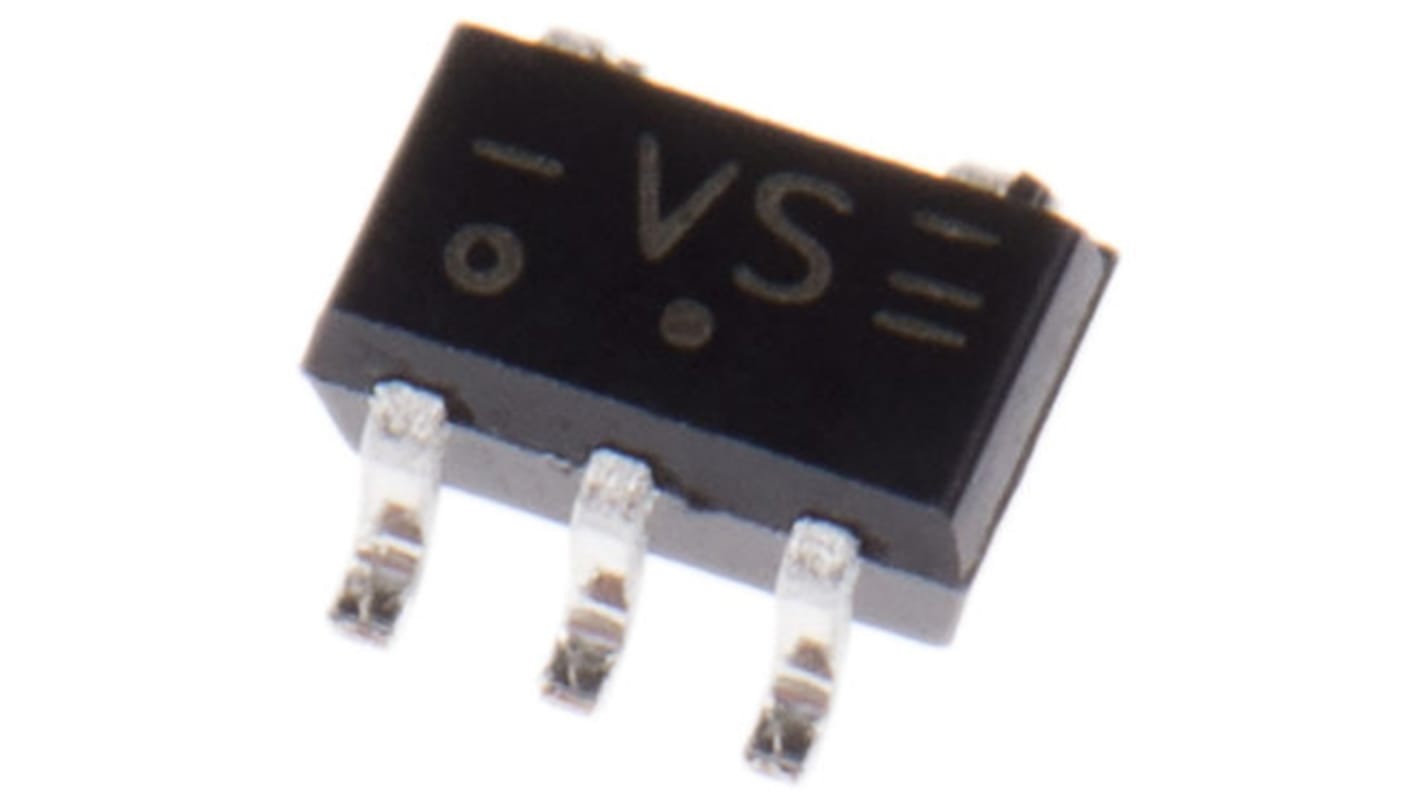

Nexperia 74AHC1G32GW,125 2-Input OR Logic Gate, 5-Pin TSSOP

Brand

Nexperia

Logic Function

OR

Mounting Type

Surface Mount

Number of Elements

1

Number of Inputs per Gate

2

Schmitt Trigger Input

No

Package Type

TSSOP

Pin Count

5

Logic Family

AHC

Maximum Operating Supply Voltage

5.5 V

Maximum High Level Output Current

-8mA

Maximum Propagation Delay Time @ Maximum CL

11.4 ns @ 3 V → 3.6 V, 7.5 ns @ 4.5 V → 5.5 V

Minimum Operating Supply Voltage

2 V

Maximum Low Level Output Current

8mA

Maximum Operating Temperature

+125 °C

Length

2.25mm

Minimum Operating Temperature

-40 °C

Dimensions

2.25 x 1.35 x 1mm

Width

1.35mm

Height

1mm

Propagation Delay Test Condition

50pF
