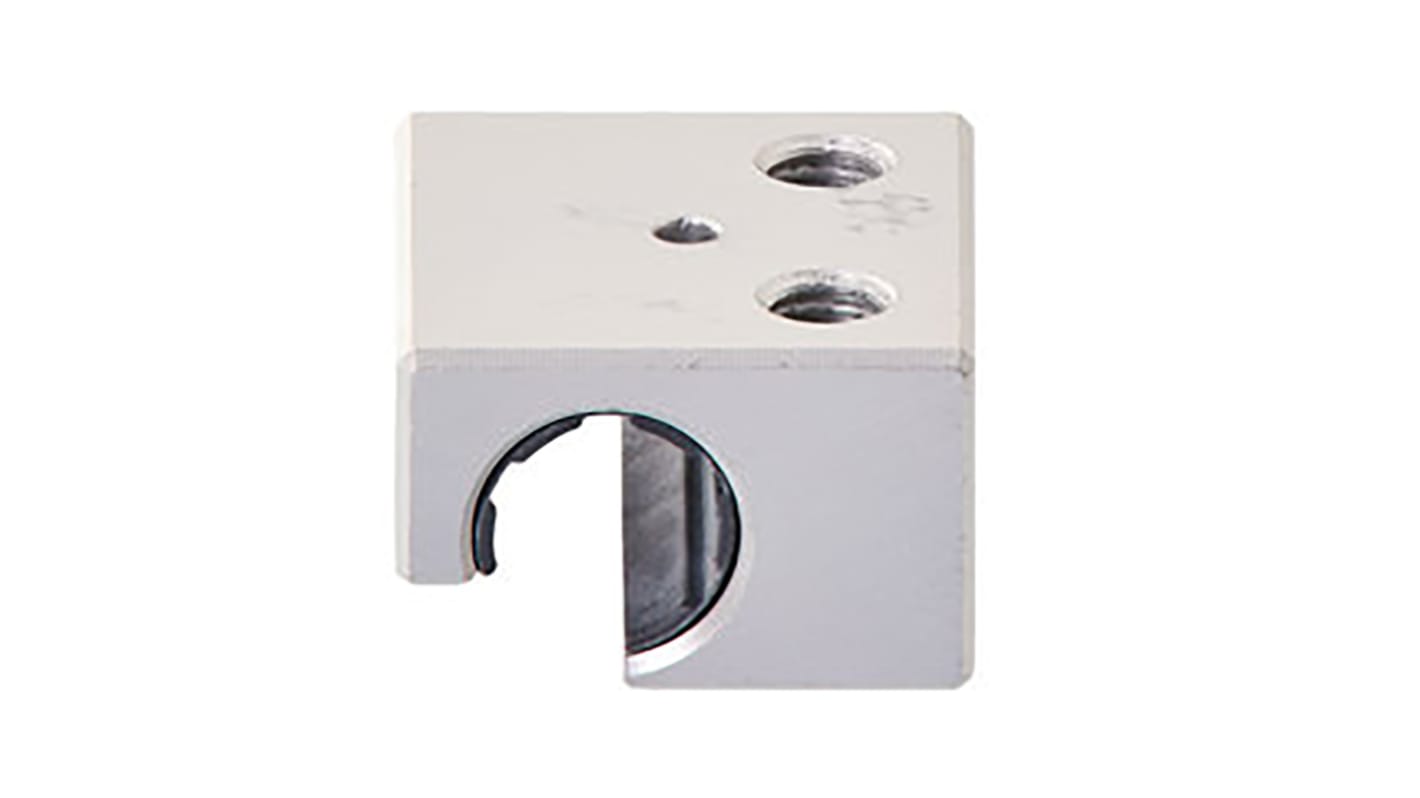

Igus Guide Block WJ200UM-01-10-AL DryLin W Series, 1200 N Dynamic Load

This linear guide carriage provides guided linear motion for automation and assembly tasks within controlled environments. It is manufactured by Igus and belongs to a dust-lubrication-free family suited to cleanroom and semiconductor conditions. The unit is built for integration where repeatable straight-line movement and a compact carriage design are required.

• Static load capacity 7.4 kN enables high-force support under load
• Aluminium body reduces assembly weight while preserving stiffness
• Compact carriage length delivers space-efficient integration
• 63mm carriage width supports stable lateral guidance
• Conforms to cleanroom standards for particle-sensitive operations
• Designed for use in automation systems requiring precise linear travel

• Suitable for pick-and-place equipment in electronics production
• Ideal for wafer handling and semiconductor transfer systems
• Used for guided axes in automated test rigs and inspection lines
• Can be used for component positioning in electrical assembly cells
• Suitable for linear guidance in mechanical prototyping and small machines

The body is made from aluminium, offering a favourable strength-to-weight ratio that eases mounting and reduces inertial loads on drive systems.

It meets DIN EN ISO 14644-1 and SEMI E78-0998 requirements relevant to cleanroom and semiconductor handling conditions.

Design calculations should use the static load rating of 7.4 kN to determine support capacity and safety margins for stationary loads.

The 81mm length and 63mm width give a compact footprint that assists in tight mechanical envelopes while providing lateral stability.
