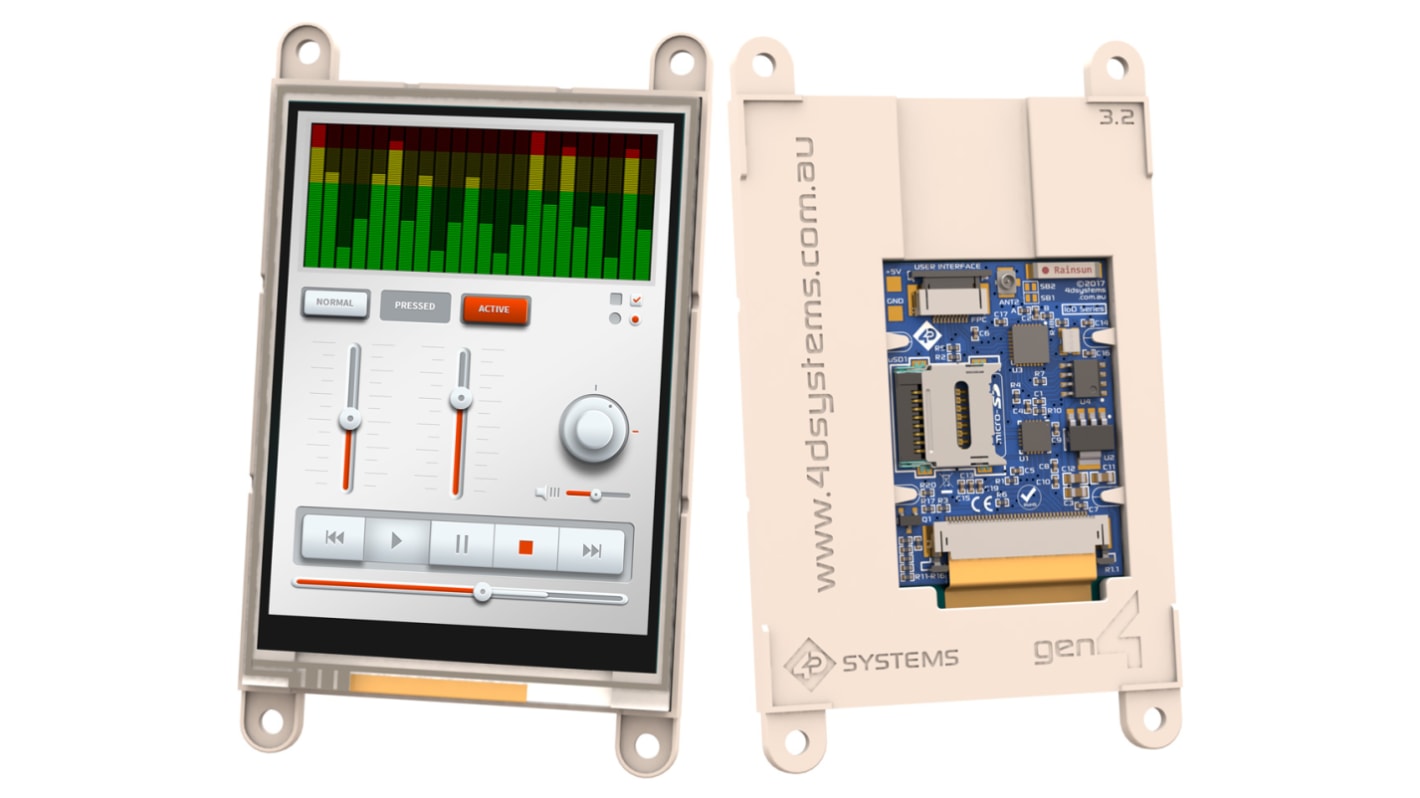

4D Systems SK-gen4-IoD-32T LCD Colour Display Touch Screen, 81.28 mm, 240 x 320 pixel

The processing and WiFi capability is provided by the Espressif ESP8266 SoC. The ESP8266 can utilise the on-board ceramic chip antenna, or an external antenna via a U.FL connector if desired.

The design of the gen4 series makes integrating an HMI display into a final product easy. The display module features a 10-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module, as the display circuitry fits comfortably within the mounting base to maintain a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities.

gen4-IoD displays are programmed using the intuitive Workshop4, 4D System’s IDE that provides multiple development environments and an extensive library of graphics and touch functions. Alternatively the Arduino IDE can also be used.

320 x 240 resolution with RGB 65k true to life colours

Built-in WiFi connectivity

802.11 b/g/n/e/i support

4-wire resistive touch

4 Mbit (512 kb) of flash memory for user application code and data

128 kb of SRAM of which 80 kb is available for the user

10-pin FFC connection for all signals, power, communication and programming

On-board microSD connector for multimedia storage and data logging

4.0 V to 5.5 V operation (single supply)

CE, REACH and RoHS compliant

1 x gen4-IoD Programming Adaptor

1 x 10-way FFC Cable

1 x 4 GB Industrial microSD Card
