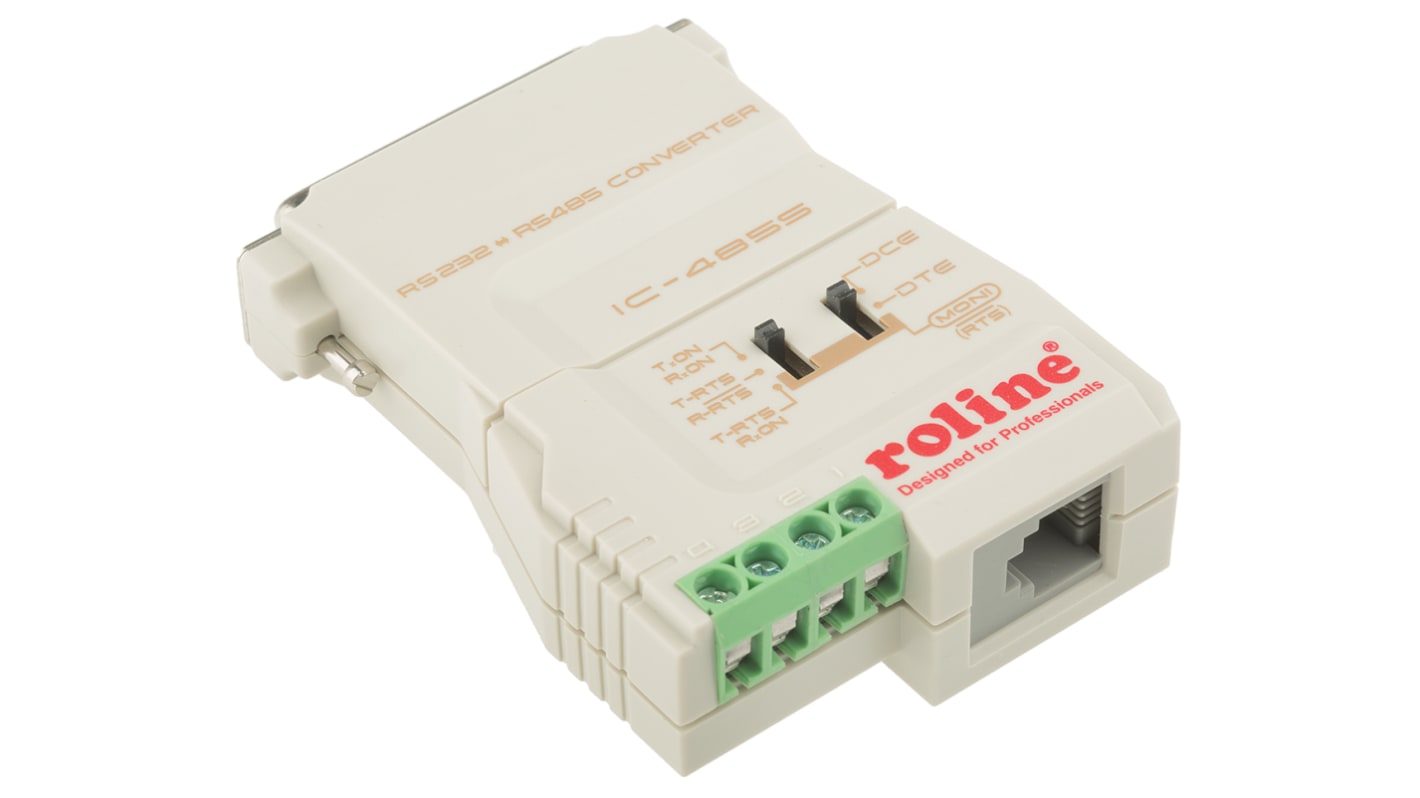

Roline RS232, RS485 D Sub 25 Pin Female to Terminal Block Interface Converter

Bi-directional converter from RS-232 to RS-485 and vice versa Point to point or multiple connection possible (simultaneous monitoring of several devices)DCE/DTE adjustableFull duplex transfer over 4 linesOnly data lines are converted25 pole socket on RS-232 sidePower via supplied mains adapterRobust plastic casingSize 74.5 x 54 x 18.5mm (WxDxH)

The Roline serial converter allows data to be exchanged between the RS232C and RS485 interfaces, commonly used in the industry. It has a transmission speed up to 108kb/s.

Transmission distance of up to 1km with AWG28 (0.14mm2) cable
Point to point or multiple connections possible (simultaneous monitoring of several devices)
DCE/DTE configurable
Monitor function for monitoring the exchange of data between two devices (2 receivers in one device) only with the standard model
Full duplex transmission on 4 lines
Only data lines are converted
Optional connection via RJ11 connector or terminal block (4 terminals)
On the RS232 side is a 25-way sub-D socket
Power is supplied via the included mains adapter which is fitted with a Euro plug
