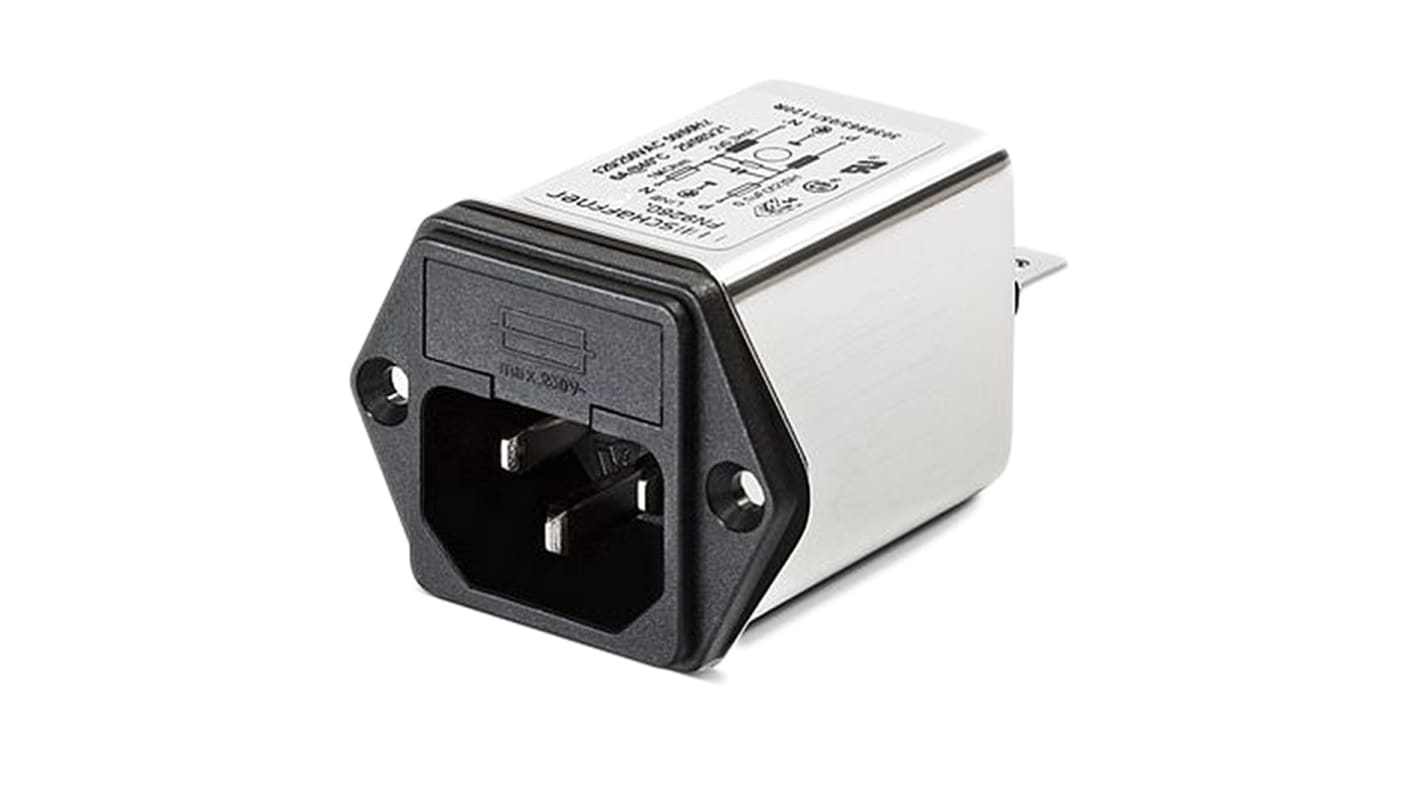

Schaffner 1A, 250 V ac Male Panel Mount IEC Inlet Filter FN9260-1-06, Faston None Fuse

The FN9260 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Can be used in a wide range of applications such as portable electrical & electronic equipment, medical equipment, household equipment, single-phase power supplies, switch-mode power supplies and test & measurement equipment.

Versions up to 10 A are available with fuse holder for one or two fuses
Optional safety version (A type)
Complies with IEC/EN 60601-1
Snap-in versions (S type)

Neutral line must not be fused where it is referenced to earth.

UL recognised component, CSA certified, VDE

The Schaffner IEC inlet filter is a male type, dual fuse, panel mount power entry module. It has a supply voltage rating of 250VAC with a high-performance current rating of 1A. The power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. A wide selection of amperage ratings, output connections and mounting options are possible. The operating frequency of this filter ranging between 0Hz and 400Hz.
Schaffner type fused/fused and switched
.
IEC inlet plugs with integral mains filter are designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 (1/4in) receptacles. Accepts 20mm x 5mm dia. fuses. Fuses are not included.
Warning:
Neutral line must not be fused where it is referenced to the earth.

Convenient, highly-integrated module
Fuse drawer with easy access
Fast-On terminals
Snap-in versions (S type)
Operating temperature ranging between -25°C and 85°C
Connector type IEC/EN 60939

Electrical and electronic equipment
Household equipment
Single-phase power supplies and switch-mode power supplies
Test and measurement equipment.

UL approved
CSA certified
VDE approved
IP40 rated

UL recognised component, CSA certified, VDE

Schaffner Type FN Fused/Fused and Switched

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically RS stock no. 526-0724).,Accept 20 x 5mm dia. fuses. Fuses not included.
