Schurter 3-105-315, 250V ac 10A Screw IEC Connector 2 Pole, Quick Connect
- RS Stock No.:
- 188-9529
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3-105-315
- ผู้ผลิต:
- Schurter
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
มีส่วนลดเมื่อซื้อจำนวนมาก
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 กล่อง กล่องละ 10 ชิ้น)*
THB10,969.10
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB11,736.90
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
หมดสต็อกชั่วคราว
- 30 ชิ้นจะส่งได้หลังจากวันที่ 25 พฤศจิกายน 2569 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 60 ชิ้นจะส่งได้หลังจากวันที่ 23 ธันวาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย | ต่อกล่อง* |
|---|---|---|
| 10 - 10 | THB1,096.91 | THB10,969.10 |
| 20 - 30 | THB1,072.78 | THB10,727.80 |
| 40 + | THB1,049.744 | THB10,497.44 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 188-9529
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 3-105-315
- ผู้ผลิต:
- Schurter
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schurter | |
| Product Type | IEC Connector | |
| Series | DD12 | |
| Current | 10A | |
| Fuse Size | 5 x 20 mm | |
| Orientation | Vertical | |
| Switch Type | 2 Pole | |
| Filter Type | Line | |
| Voltage | 250V ac | |
| Mount Type | Screw | |
| Operating Frequency | 50Hz, 60Hz | |
| IEC Connector Type | C14 | |
| Maximum Operating Temperature | 85°C | |
| Termination Type | Quick Connect | |
| Minimum Operating Temperature | -25°C | |
| Standards/Approvals | No | |
| Depth | 60.9mm | |
| Height | 47mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schurter | ||
Product Type IEC Connector | ||
Series DD12 | ||
Current 10A | ||
Fuse Size 5 x 20 mm | ||
Orientation Vertical | ||
Switch Type 2 Pole | ||
Filter Type Line | ||
Voltage 250V ac | ||
Mount Type Screw | ||
Operating Frequency 50Hz, 60Hz | ||
IEC Connector Type C14 | ||
Maximum Operating Temperature 85°C | ||
Termination Type Quick Connect | ||
Minimum Operating Temperature -25°C | ||
Standards/Approvals No | ||
Depth 60.9mm | ||
Height 47mm | ||

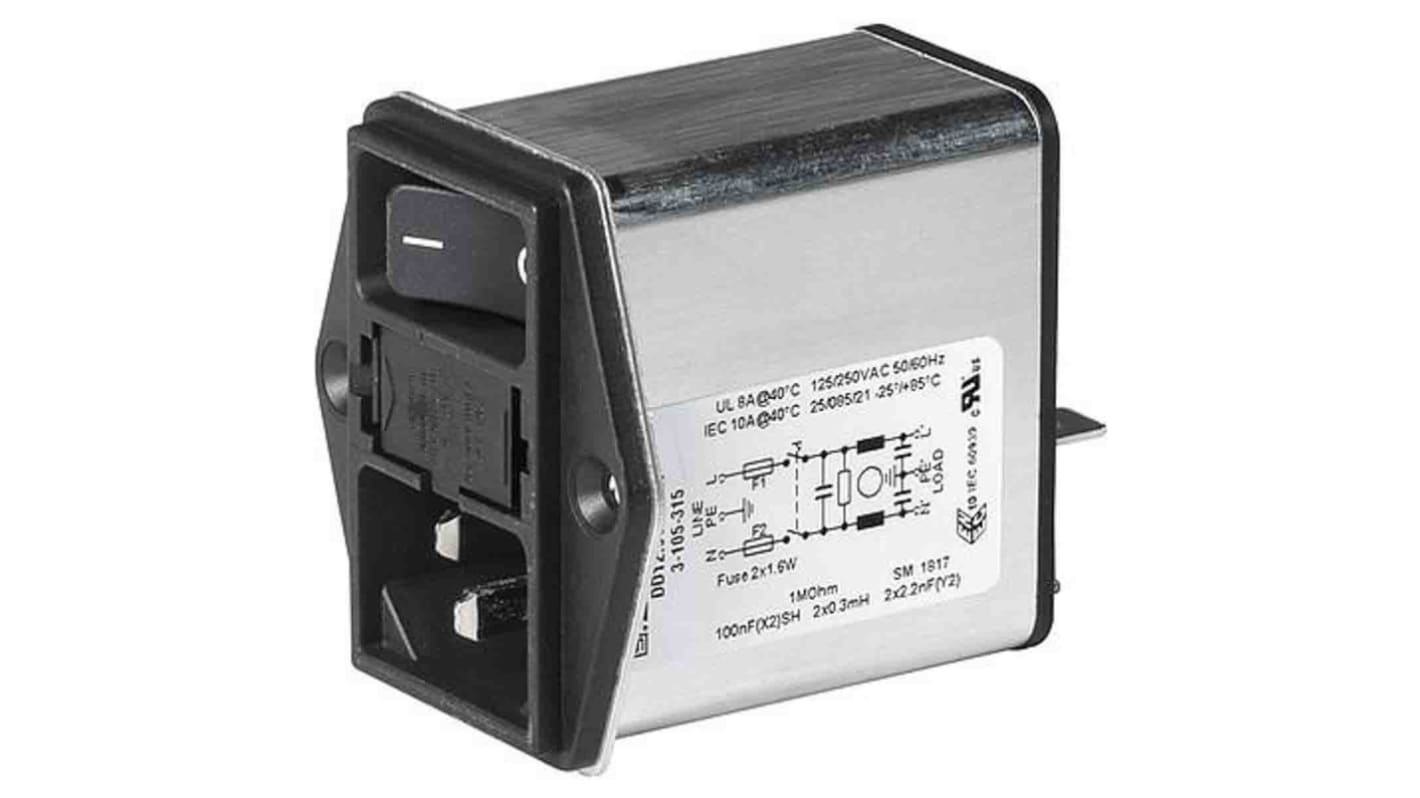

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, Line Switch 2-pole.
Panel mount: Screw-on from front side
4 Functions: Appliance Inlet Protection class I, Line Switch 2-pole, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole, Line filter in standard and medical version
V-Lock notch standard
Quick connect terminals 6.3 x 0.8 mm
Unique Selling Proposition
Various mounting options
Attractive flat design
Switch for highest inrush current
V-Lock cord retaining
Characteristics
Ultra-compact design. Ideal for low profile designs
Aluminium case provides good shielding
All single elements are already wired
Ideal for application with high transient loads
Suitable for use in equipment
Suitable for use in medical equipment
