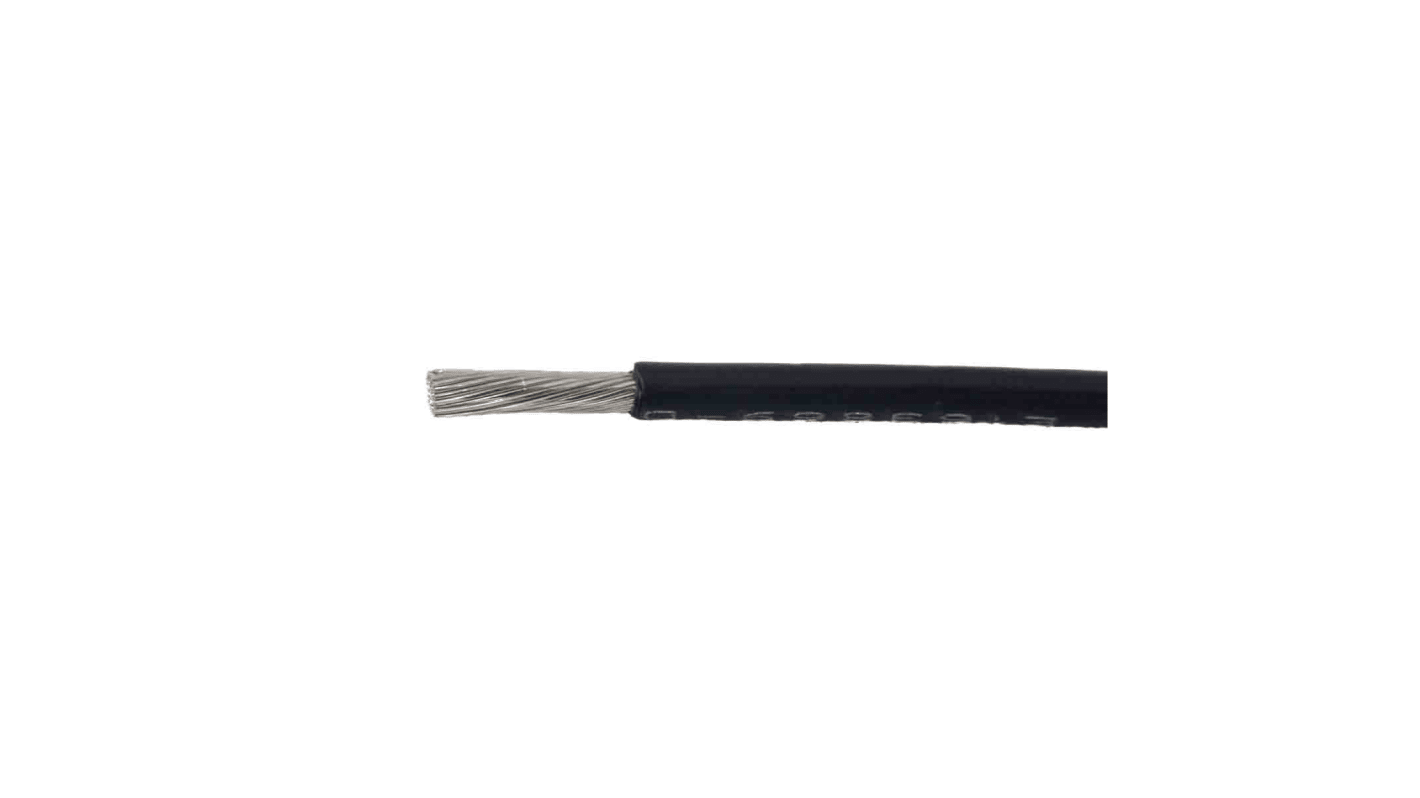

Alpha Wire Ecogen Ecowire Metric Series Black 0.25 mm² Hook Up Wire, 24 AWG, 32/0.10 mm², 50m, Polyphenylene Ether

RS Stock No.:: 201-2705
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 67025 BK321
ผู้ผลิต:: Alpha Wire

Alpha Wire Ecogen Ecowire Metric Series Black 0.25 mm² Hook Up Wire, 24 AWG, 32/0.10 mm², 50m, Polyphenylene Ether

ยอดรวมย่อย (1 รีล รีลละ 50 เมตร)*

THB1,796.65

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,922.40

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

สต็อกสุดท้ายของ RS

250 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ชิ้น	ต่อหน่วย	ต่อม้วน*
50 +	THB35.933	THB1,796.65

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 201-2705
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 67025 BK321
ผู้ผลิต:: Alpha Wire

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Alpha Wire
	Cross Sectional Area	0.25 mm²
	Sheath Colour	Black
	Cable Shape	Single Core
	American Wire Gauge	24 AWG
	Core Strands	32/0.10 mm²
	Length	50m
	Insulation Material	Polyphenylene Ether
	Voltage Rating	600 V
	Outer Diameter	0.64mm
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C
	Conductor Material	Tinned Copper
	Cable Type	Single Core
	Wire Style	UL11028
	Standards Met	UL
	Fire Behaviour	Flame Retardant
	Series	Ecogen Ecowire Metric
	Tri-rated	No
	Insulation Wall Thickness	0.25mm
	Size of Strands	0.1 mm
	Number of Strands	32

	เลือกทั้งหมด
	Brand Alpha Wire
	Cross Sectional Area 0.25 mm²
	Sheath Colour Black
	Cable Shape Single Core
	American Wire Gauge 24 AWG
	Core Strands 32/0.10 mm²
	Length 50m
	Insulation Material Polyphenylene Ether
	Voltage Rating 600 V
	Outer Diameter 0.64mm
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C
	Conductor Material Tinned Copper
	Cable Type Single Core
	Wire Style UL11028
	Standards Met UL
	Fire Behaviour Flame Retardant
	Series Ecogen Ecowire Metric
	Tri-rated No
	Insulation Wall Thickness 0.25mm
	Size of Strands 0.1 mm
	Number of Strands 32

Belden Ecogen Ecowire Metric Series Hook Up Wire, 0.25mm² Cross Sectional Area, 600V Voltage Rating - 67025 BK033

This hook-up wire is a versatile electrical supply tailored for various applications in the automation, electronics, and mechanical industries. With a core cross-sectional area of 0.25mm², this black hook-up wire is constructed from high-quality polyphenylene ether insulation, ensuring durability and reliability. Spanning a length of 100 m, it features a 24 AWG wire design and a voltage rating of 600V, making it suitable for a range of electrical tasks.

Features & Benefits

• Provides a strong conductive pathway with 32 strands of 0.10mm² wire
• Designed for high-voltage applications supporting up to 600V
• Durable polyphenylene ether insulation protects against environmental factors
• Complies with UL11028 standards for safety and efficiency
• 24 AWG wire offers a compact solution for tight spaces
• Ensures consistent performance with a slim outer diameter of 0.64mm

Applications

• Used for internal wiring in electrical devices
• Ideal for connecting circuit boards in automation equipment
• Utilised in mechanical automation systems requiring robust wiring
• Employed in various electronic needing reliable connections

What is the significance of the insulation material used?

The polyphenylene ether insulation provides excellent thermal stability and resilience against chemicals, ensuring longevity of use in various environments.

How does the number of strands affect the performance of this wire?

Having 32 strands enhances flexibility and ease of installation while maintaining conductivity, making it suitable for intricate designs and installations.

In what scenarios would this wire be preferable over thicker gauges?

Choosing a 24 AWG wire is ideal in spaces where weight and flexibility are critical, allowing for easier routing in compact assemblies without compromising performance.
