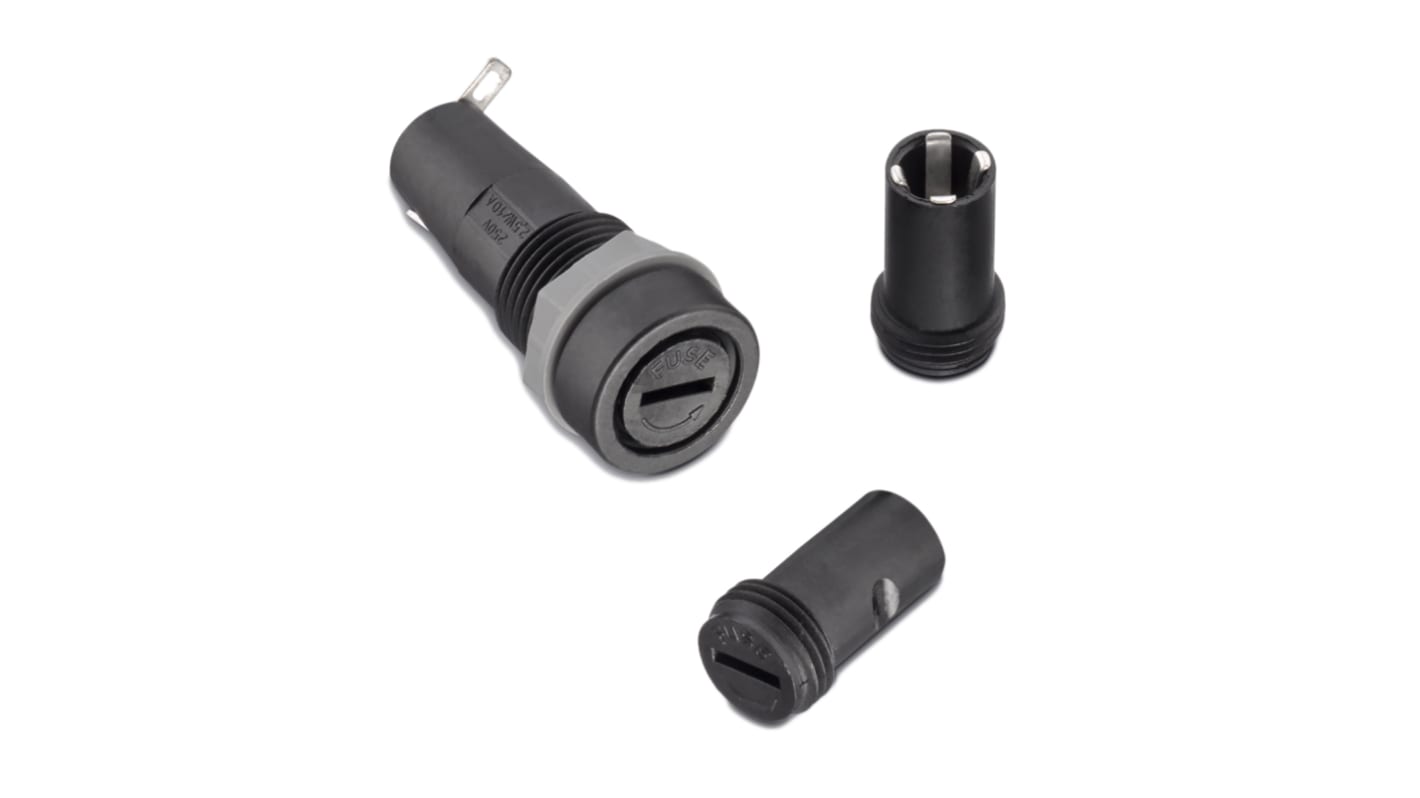

Wurth Elektronik 10A Panel Mount Fuse Holder for 5 x 20mm Fuse, 1P, 250V ac
- RS Stock No.:
- 893-0615
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 696314001002
- ผู้ผลิต:
- Wurth Elektronik
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 893-0615
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 696314001002
- ผู้ผลิต:
- Wurth Elektronik
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Wurth Elektronik | |
| Fuse Holder Type | Panel Mount | |
| Fuse Size | 5 x 20mm | |
| Current Rating | 10A | |
| Voltage Rating | 250V ac | |
| Number of Poles | 1P | |
| Compatible Fuse Diameter | 5mm | |
| Protection Category | PC2 | |
| Contact Material | Copper Alloy | |
| International Protection Rating | IP40 | |
| Compatible Fuse Sizes | Mini | |
| Standards Met | cULus, RoHS Compliant, UL, UL94 V-0, VDE | |
| Compatible Fuse Length | 20mm | |
| Cap Style | Slotted | |
| Terminal Type | Solder | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Wurth Elektronik | ||
Fuse Holder Type Panel Mount | ||
Fuse Size 5 x 20mm | ||
Current Rating 10A | ||
Voltage Rating 250V ac | ||
Number of Poles 1P | ||
Compatible Fuse Diameter 5mm | ||
Protection Category PC2 | ||
Contact Material Copper Alloy | ||
International Protection Rating IP40 | ||
Compatible Fuse Sizes Mini | ||
Standards Met cULus, RoHS Compliant, UL, UL94 V-0, VDE | ||
Compatible Fuse Length 20mm | ||
Cap Style Slotted | ||
Terminal Type Solder | ||
Wurth Panel mount fuse holders
Wurth panel mount fuse holders have a rated current of 10A. The WRSH Shocksafe fuse holders offer glow wire tested plastic to ensure greater safety and resiliance to heat.
Contact plating Matt tin over Nickel.
Contact material Copper alloy.
Suitable 5x20mm fuses.
Contact plating Matt tin over Nickel.
Contact material Copper alloy.
Suitable 5x20mm fuses.
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
