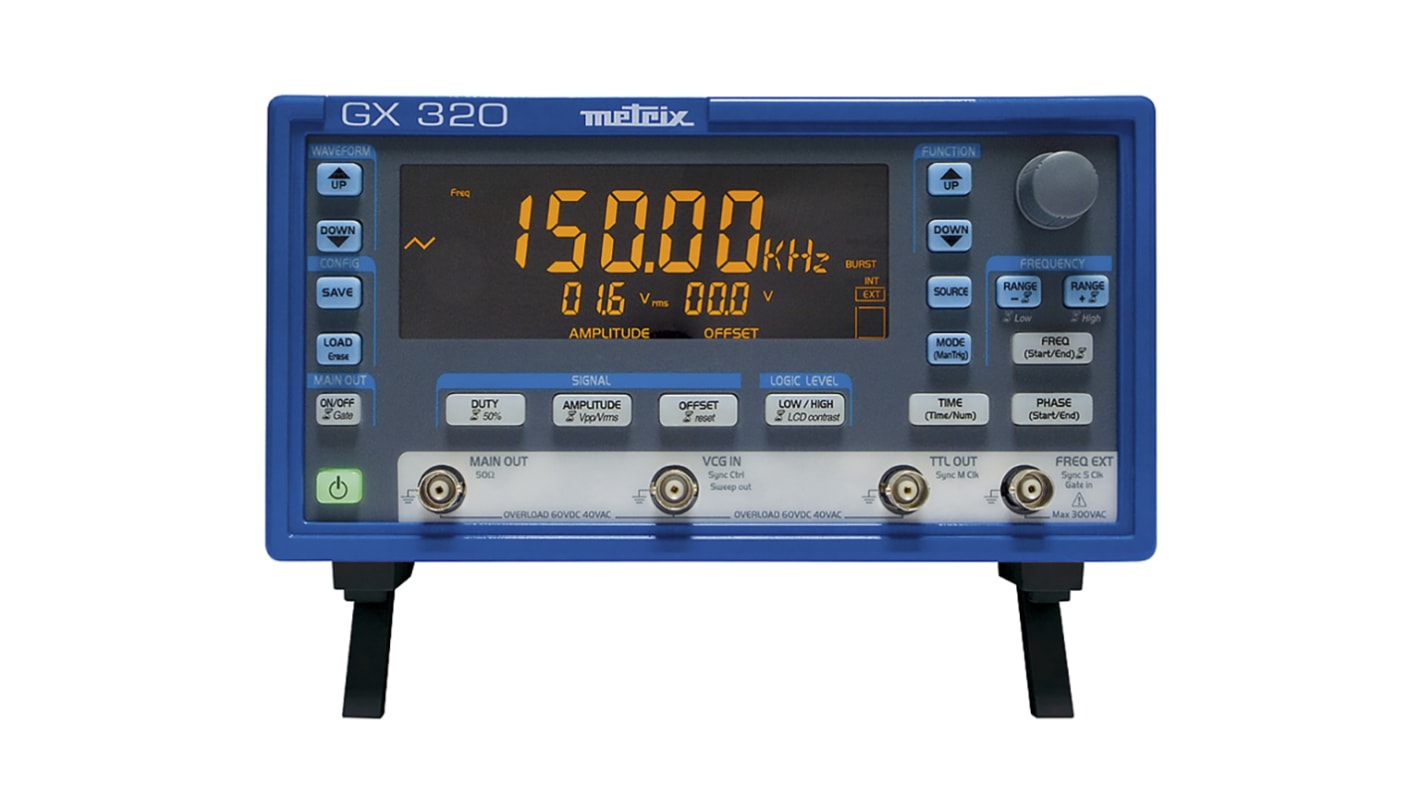

Metrix GX 320-E Function Generator, 0.001Hz Min, 20MHz Max, FM Modulation

ดู Function Generators ทั้งหมด
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
RS Stock No.:
879-3832
Distrelec หมายเลขบทความ:
304-11-214
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
GX320-E
ผู้ผลิต:
Metrix
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Metrix

Maximum Frequency Range Sinewave

20MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

20MHz

Output Impedance

50Ω

Minimum Frequency Range Sinewave

0.001Hz

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.001 Hz

FM Modulation

Yes

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

2MHz

Minimum Frequency Range Triangle/Saw

0.001Hz

Maximum Operating Temperature

+40°C

Internal and External Amplitude Modulation

Yes

Plug Type

RJ45

Interface Type

Ethernet, USB

Model Number

GX 320-E

Dimensions

190 x 227 x 130mm

Internal Linear and Log Sweep

Yes

Input Impedance

1 MΩ

Length

190mm

Height

130mm

Minimum Operating Temperature

0°C

Frequency Range Square Pulse and Arbitrary Waveform

0.001 Hz → 20 MHz

Digital Amplitude and Offset

Yes

Width

227mm

Weight

2.9kg

TTL Output Level

0 → 5V

สถานะRoHS: ได้รับการยกเว้น

COO (Country of Origin):
FR

Metrix GX Series Function Generators GX 305, GX 310, GX 320


Metrix GX Series function generators are versatile, high-performance instruments for education, scientific research and electronic product design. They can be used to generate a variety of signals including waveforms, sine, triangle, square & LOGIC and TTL output. Metrix GX uses Direct Digital Synthesis (DDS) technology which greatly enhances frequency accuracy and stability. Alternating standard form wave generator models 5MHz, GX 305 ( 879-3823 ) and 10MHz, GX 310 ( 879-3826 ) are designed for education & training, R&D and test & production. Model 20MHz, GX 320 ( 879-3839 ) has additional functions including: internal and external AM & FM modulation, GATE, BURST, FSK and PSK; adjustable phase synchronisation of several generators in a cascade arrangement; storage of 15 complete instrument configurations. Models 10MHz GX 310-P ( 879-3820 ) and 20MHz GX 320-E ( 879-3832 ) are fully-programmable, with SCPI standard USB link (USB cable supplied). GX 320-E also has an Ethernet link (Ethernet cable supplied).

DDS technology and frequency accuracy of ± 20 ppm
Frequency adjustment stable to the nearest digit
"LOGIC signal" function for direct adjustment of high and low levels
LIN or LOG sweep, triangle or sawtooth, with adjustable duration from 10 ms to 100 s
LCD screen large (125mm x 45mm) and easy-to-read (5 digits, 20mm high)
100 MHz frequency meter, 300 V CAT I

Supplied with

Mains power lead, CD-Rom containing operating manual in 5 languages, programming manual (in French and English), Labwindows CVI / LabView drivers, USB A/B cable (GX 310-P & GX 320-E only), straight Ethernet cable (GX 320-E only)


Metrix
