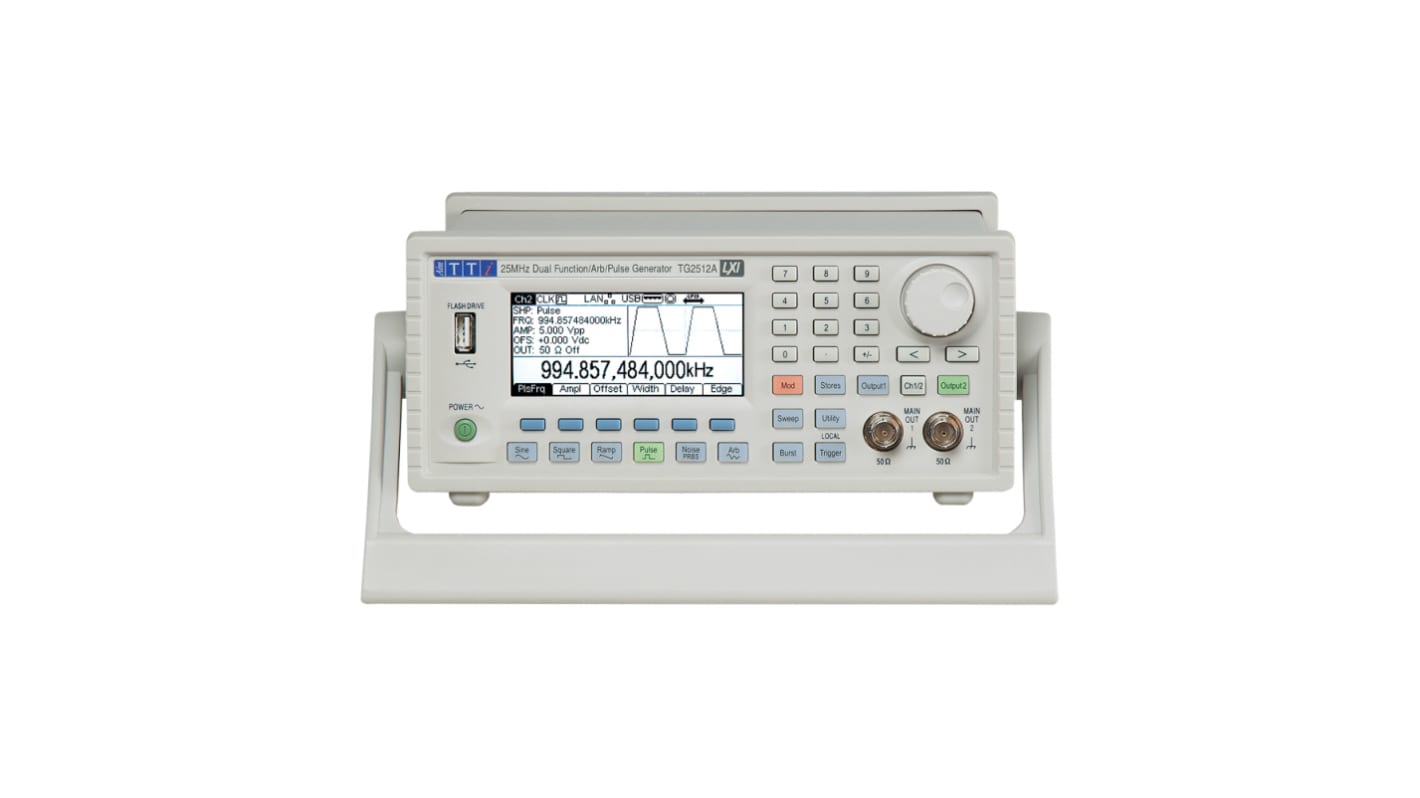

Aim-TTi TG2512A Function Generator, 1μHz Min, 25MHz Max, FM Modulation, Variable Sweep
- RS Stock No.:
- 800-8248
- หมายเลขชิ้นส่วนของผู้ผลิต:
- TG2512A
- ผู้ผลิต:
- Aim-TTi
ยอดรวมย่อย (1 ชิ้น)*
THB43,136.50
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB46,156.06
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 1 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB43,136.50 |
*price indicative
- RS Stock No.:
- 800-8248
- หมายเลขชิ้นส่วนของผู้ผลิต:
- TG2512A
- ผู้ผลิต:
- Aim-TTi
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Aim-TTi | |
| Maximum Frequency Range Sinewave | 25MHz | |
| Number of Channels | 2 | |
| Maximum Frequency Range Square Pulse and Arbitrary Waveform | 25 MHz, 6 MHz, 6.25 MHz | |
| Series | TGxA | |
| Output Impedance | 50Ω | |
| Minimum Frequency Range Sinewave | 1µHz | |
| Variable Sweep | Yes | |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz, 500 μHz | |
| FM Modulation | Yes | |
| Time Base Accuracy | 1ppm | |
| Digital Frequency | Yes | |
| Maximum Frequency Range Triangle/Saw | 500kHz | |
| Minimum Frequency Range Triangle/Saw | 1µHz | |
| Interface Type | LAN, USB | |
| Internal Linear and Log Sweep | Yes | |
| Length | 295mm | |
| Frequency Range Square Pulse and Arbitrary Waveform | 1 μHz → 25 MHz, 1 μHz → 6 MHz, 500 μHz → 6.25 MHz | |
| Dimensions | 295 x 250 x 97mm | |
| Model Number | TG2512A | |
| Operating Temperature Range | +5 → +40 °C | |
| Input Impedance | 5 kΩ | |
| Minimum Operating Temperature | +5°C | |
| Output Amplitude | 20V Pk-Pk | |
| Height | 97mm | |
| Internal and External Amplitude Modulation | Yes | |
| Maximum Operating Temperature | +40°C | |
| Digital Amplitude and Offset | Yes | |
| Weight | 2.7kg | |
| Width | 250mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Aim-TTi | ||
Maximum Frequency Range Sinewave 25MHz | ||
Number of Channels 2 | ||
Maximum Frequency Range Square Pulse and Arbitrary Waveform 25 MHz, 6 MHz, 6.25 MHz | ||
Series TGxA | ||
Output Impedance 50Ω | ||
Minimum Frequency Range Sinewave 1µHz | ||
Variable Sweep Yes | ||
Minimum Frequency Range Square Pulse and Arbitrary Waveform 1 μHz, 500 μHz | ||
FM Modulation Yes | ||
Time Base Accuracy 1ppm | ||
Digital Frequency Yes | ||
Maximum Frequency Range Triangle/Saw 500kHz | ||
Minimum Frequency Range Triangle/Saw 1µHz | ||
Interface Type LAN, USB | ||
Internal Linear and Log Sweep Yes | ||
Length 295mm | ||
Frequency Range Square Pulse and Arbitrary Waveform 1 μHz → 25 MHz, 1 μHz → 6 MHz, 500 μHz → 6.25 MHz | ||
Dimensions 295 x 250 x 97mm | ||
Model Number TG2512A | ||
Operating Temperature Range +5 → +40 °C | ||
Input Impedance 5 kΩ | ||
Minimum Operating Temperature +5°C | ||
Output Amplitude 20V Pk-Pk | ||
Height 97mm | ||
Internal and External Amplitude Modulation Yes | ||
Maximum Operating Temperature +40°C | ||
Digital Amplitude and Offset Yes | ||
Weight 2.7kg | ||
Width 250mm | ||
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- GB
Aim-TTi Function Generator, 5 kΩ Input Impedance, 295 x 250 x 97mm - TG2512A
Features & Benefits
• Wide frequency range of 1 μHz to 25 MHz for diverse applications
• Dual-channel functionality for enhanced flexibility in signal output
• LAN and USB interfaces for easy connectivity and control
• Internal and external modulation options for advanced waveform manipulation
Applications
• Waveform simulation for research and development purposes
• Frequency modulation experiments in educational settings
• Function generation for audio and RF signal processing Applications
