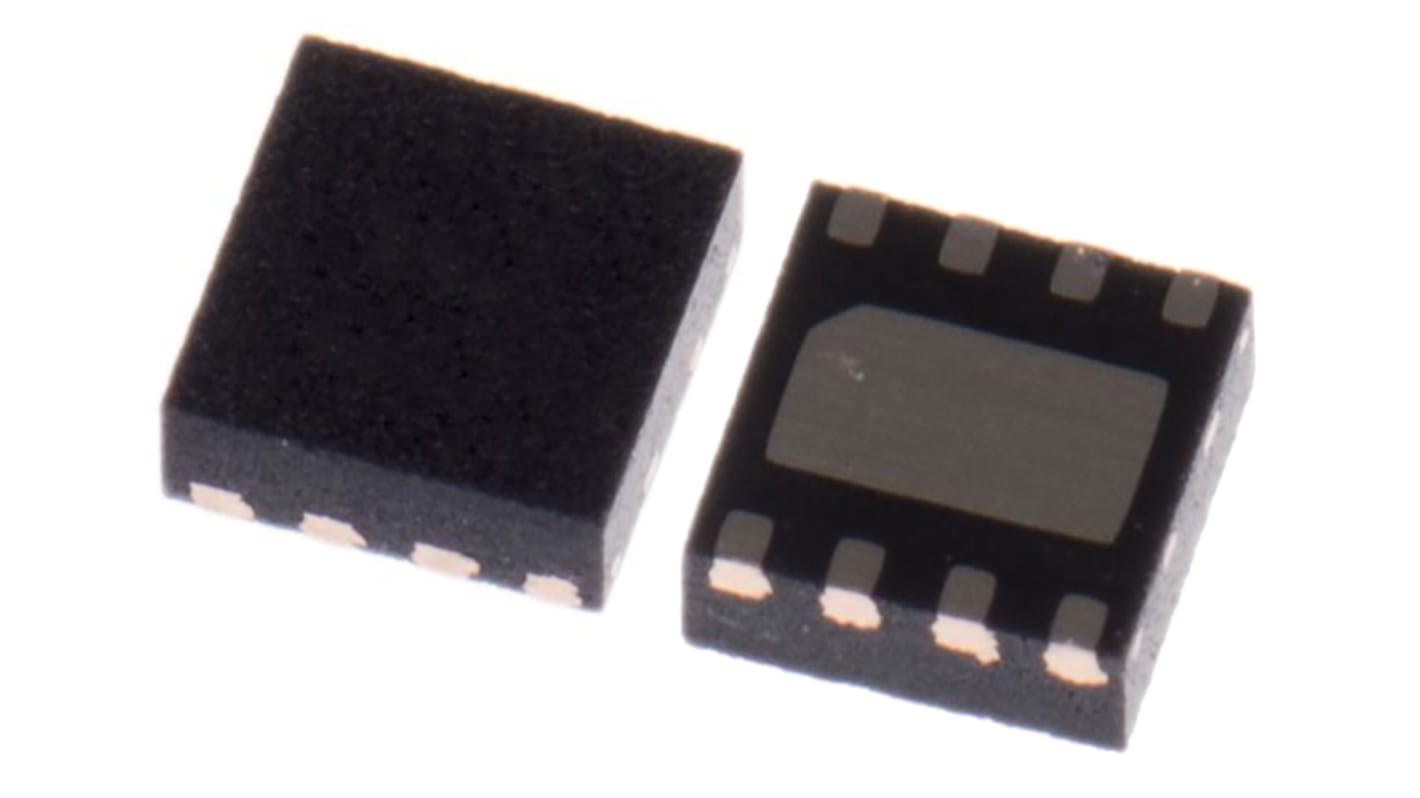

Winbond NAND 1Gbit Serial Flash Memory 8-Pin WSON, W25N01GVZEIG/TUBE
- RS Stock No.:
- 171-2184
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- W25N01GVZEIG/TUBE
- ผู้ผลิต / Manufacturer:
- Winbond
ดู Flash Memory ทั้งหมด
378 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tube of 63)
THB242.256
(exc. VAT)
THB259.214
(inc. VAT)
| Units | Per unit | Per Tube* |
| 63 - 63 | THB242.256 | THB15,262.128 |
| 126 - 189 | THB236.926 | THB14,926.338 |
| 252 + | THB231.839 | THB14,605.857 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 171-2184
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- W25N01GVZEIG/TUBE
- ผู้ผลิต / Manufacturer:
- Winbond
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
1Gb Serial NAND Flash Memory with uniform 2KB+64B page size and set Buffer Read Mode as default
Vcc: 2.7V to 3.6V
Bus width: x1/x2/x4
Operating temperature: Industrial: -40°C to 85°C
Single-Level Cell (SLC) Technology
Density: 1G-bit/128M-byte
Page size: 2,112 bytes (2048 + 64 bytes)
Block size: 64 pages (128K + 4K bytes)
Page read with ECC enable: 50us
SPI clocks: 104MHz
Page program time: 250us(typ.)
Block erase time: 2ms(typ.)
Support OTP memory area
Bus width: x1/x2/x4
Operating temperature: Industrial: -40°C to 85°C
Single-Level Cell (SLC) Technology
Density: 1G-bit/128M-byte
Page size: 2,112 bytes (2048 + 64 bytes)
Block size: 64 pages (128K + 4K bytes)
Page read with ECC enable: 50us
SPI clocks: 104MHz
Page program time: 250us(typ.)
Block erase time: 2ms(typ.)
Support OTP memory area
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
| คุณสมบัติ | Value |
| Memory Size | 1Gbit |
| Interface Type | Serial |
| Package Type | WSON |
| Pin Count | 8 |
| Organisation | 128M x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NAND |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 6.1mm |
| Height | 0.75mm |
| Width | 8.1mm |
| Dimensions | 8.1 x 6.1 x 0.75mm |
| Minimum Operating Temperature | -40 °C |
| Series | W25N |
| Number of Words | 128M |
| Maximum Random Access Time | 7ns |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
378 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tube of 63)
THB242.256
(exc. VAT)
THB259.214
(inc. VAT)
| Units | Per unit | Per Tube* |
| 63 - 63 | THB242.256 | THB15,262.128 |
| 126 - 189 | THB236.926 | THB14,926.338 |
| 252 + | THB231.839 | THB14,605.857 |
| *ตัวบ่งบอกราคา / price indicative | ||
