Norgren Excelon Plus Filter Regulator, 40 μm, 3/8 in, Automatic, 10 bar
- RS Stock No.:
- 212-9104
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82G-3GK-AP3-RMG
- ผู้ผลิต:
- Norgren
ยอดรวมย่อย (1 ชิ้น)*
THB4,835.74
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB5,174.24
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB4,835.74 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 212-9104
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- B82G-3GK-AP3-RMG
- ผู้ผลิต:
- Norgren
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Norgren | |
| Product Type | Filter Regulator | |
| Port Size | 3/8 in | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Flow Rate | 37dm³/s | |
| Connection Thread Standard | G | |
| Series | Excelon Plus | |
| Drain Type | Automatic | |
| Filtration Size | 40μm | |
| Overall Length | 46.5mm | |
| Pressure Gauge Port Size | 1/8 in | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 8573 | |
| Overall Width | 56mm | |
| Overall Height | 238mm | |
| Pressure Gauge Port Thread Standard | G | |
| Pressure Setting Range | 0.3 to 10 bar | |
| Bowl Material | Polycarbonate | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Norgren | ||
Product Type Filter Regulator | ||
Port Size 3/8 in | ||
Maximum Operating Pressure 10 bar | ||
Maximum Flow Rate 37dm³/s | ||
Connection Thread Standard G | ||
Series Excelon Plus | ||
Drain Type Automatic | ||
Filtration Size 40μm | ||
Overall Length 46.5mm | ||
Pressure Gauge Port Size 1/8 in | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 8573 | ||
Overall Width 56mm | ||
Overall Height 238mm | ||
Pressure Gauge Port Thread Standard G | ||
Pressure Setting Range 0.3 to 10 bar | ||
Bowl Material Polycarbonate | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- MX

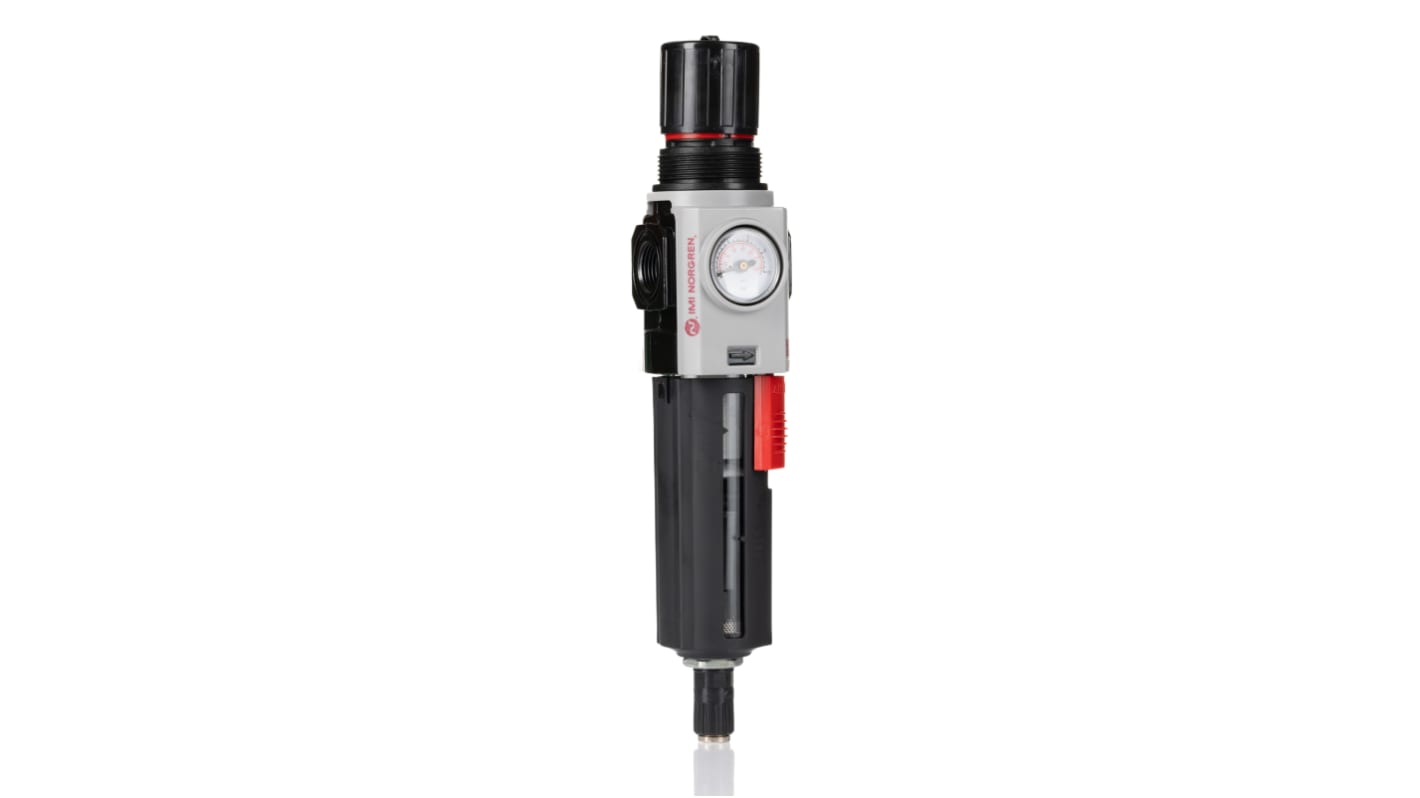

IMI Norgren Filter Regulator, 10 Bar Maximum Operating Pressure, Automatic Drain - Excelon Plus Series - B82G-3GK-AP3-RMG
Get pneumatic equipment ready for action with this filter regulator from IMI Norgren. It combines pressure regulation with filtration in one handy device, to make sure your air supply is prepped for your machines. The integrated gauge and knob make it easy to set to the sweet spot for your system. You can make adjustments between 0.3 and 10 bar to get the pressure exactly right. A 40μm filter and an automatic drain are on hand to efficiently remove particles, ensuring smooth airflow. For added safety, you can secure the polycarbonate bowl with a double lock.
Features & Benefits
• Reliably operates at temperatures between -10°C and +60°C, so toughs it out in harsh manufacturing applications
• Light weight of 0.3kg means it doesn't need much mounting support
• Indicator on the bowl lets you see the current liquid level at a glance
Applications
• Pharmaceutical manufacturing
• Electronics assembly
• Automotive industry
• Food and beverage processing
How easy is this filter regulator to fit into an existing system?
The filter regulator is modular and suitable for inline mounting. It has a standard G3/8 port for simple installation into your existing system.
