- RS Stock No.:
- 176-1738
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Port Connection | G 1/2 | |
| Maximum Operating Pressure | 8 bar | |
| Filtration Size | 20µm | |
| Pressure Gauge Port | G 1/2 | |
| Pressure Gauge Port Thread Size | 1/8 in | |
| Port Connection Thread Size | G 1/2 | |
| Maximum Ambient Operating Temperature | +50°C | |
| Minimum Process Operating Temperature | -10°C | |
| Minimum Operating Pressure | 0bar | |
| Maximum Process Operating Temperature | +50°C | |
| Process Operating Temperature Range | -10 → +50°C | |
| Minimum Ambient Operating Temperature | -10°C | |
| Port Connection Thread Standard | G | |
| Pressure Gauge Port Thread Standard | G | |
| Ambient Operating Temperature Range | -10 → +50°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Port Connection G 1/2 | ||
Maximum Operating Pressure 8 bar | ||
Filtration Size 20µm | ||
Pressure Gauge Port G 1/2 | ||
Pressure Gauge Port Thread Size 1/8 in | ||
Port Connection Thread Size G 1/2 | ||
Maximum Ambient Operating Temperature +50°C | ||
Minimum Process Operating Temperature -10°C | ||
Minimum Operating Pressure 0bar | ||
Maximum Process Operating Temperature +50°C | ||
Process Operating Temperature Range -10 → +50°C | ||
Minimum Ambient Operating Temperature -10°C | ||
Port Connection Thread Standard G | ||
Pressure Gauge Port Thread Standard G | ||
Ambient Operating Temperature Range -10 → +50°C | ||
- COO (Country of Origin):
- IT

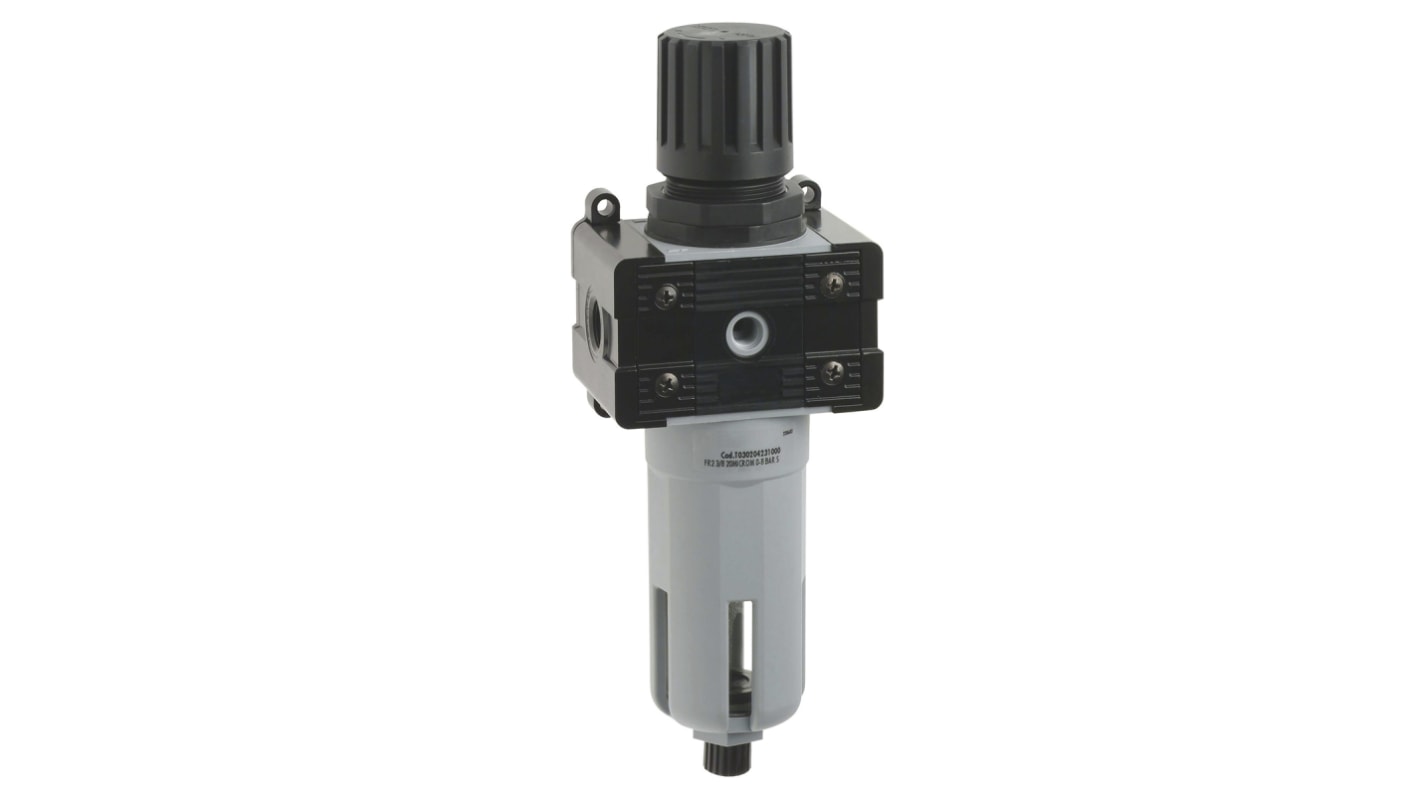

RS PRO Filter Regulator 20 μm G 1/2, 8 bar
Improve the performance of your compressed air system with this RS PRO filter regulator. It combines the functionalities of a filter and regulator in one unit, so you can save space and simplify both piping and installation. You'll find it in a variety of industrial environments, from pharmaceutical production to chemical manufacturing and aerospace.
This filter regulator has a filtration grade of 20 μm (micrometres), which means it removes large particles of dust, dirt and water from the air. The system works in temperatures ranging from -10ºC to +50ºC, so it's suitable for both indoor and outdoor use.
The component has a maximum operating pressure of 8 bar, which means it's best suited to low-pressure settings. This modular product can be integrated with other RS PRO air treatment components using air distributors and connection plates.
This filter regulator has a filtration grade of 20 μm (micrometres), which means it removes large particles of dust, dirt and water from the air. The system works in temperatures ranging from -10ºC to +50ºC, so it's suitable for both indoor and outdoor use.
The component has a maximum operating pressure of 8 bar, which means it's best suited to low-pressure settings. This modular product can be integrated with other RS PRO air treatment components using air distributors and connection plates.
Features and Benefits
• Ambient operating temperature range of -10°C to +50°C
• Process operating temperature range of -10°C to +50°C
• Operating pressure range of 0 to 8 bar
• Filtration size of 20 μm
• Port connection has a thread standard G and thread size of G 1/2
• Pressure gauge port has a thread standard G and thread size of 1/8 in
• Process operating temperature range of -10°C to +50°C
• Operating pressure range of 0 to 8 bar
• Filtration size of 20 μm
• Port connection has a thread standard G and thread size of G 1/2
• Pressure gauge port has a thread standard G and thread size of 1/8 in
