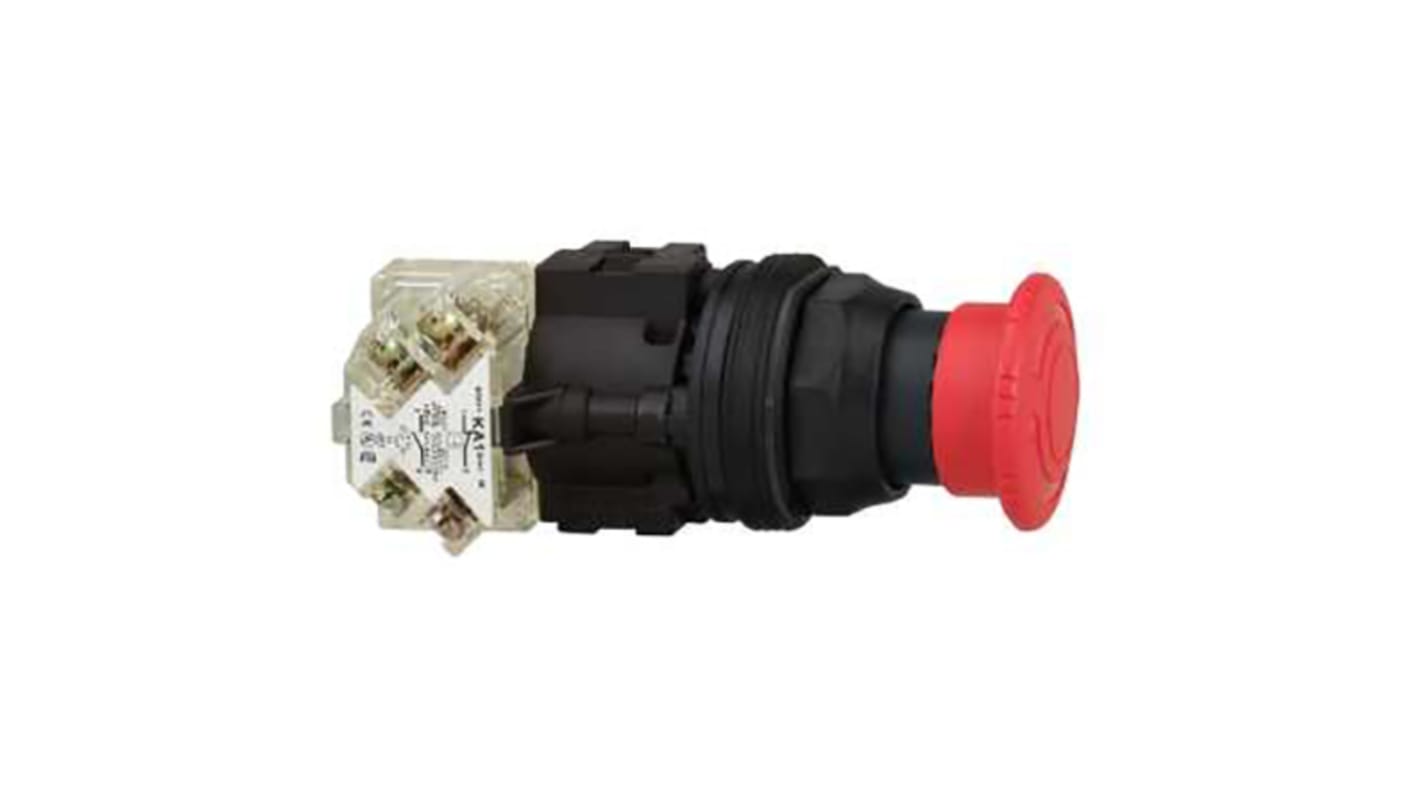

Schneider Electric Harmony 9001K Series Turn to Release Emergency Stop Push Button, Panel Mount, 30 mm Cutout, SPST,
- RS Stock No.:
- 816-2771
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9001KR16H13
- ผู้ผลิต:
- Schneider Electric
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้
- RS Stock No.:
- 816-2771
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 9001KR16H13
- ผู้ผลิต:
- Schneider Electric
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Schneider Electric | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 30mm | |
| Contact Configuration | SPST | |
| Housing Material | Metal | |
| Push Button Actuation | Turn to Release | |
| Series | Harmony 9001K | |
| Illuminated | No | |
| IP Rating | IP66 | |
| Colour | Red | |
| Terminal Type | Screw Clamp | |
| Contact Current | 3A | |
| Head Style | Mushroom | |
| Contact DC Voltage | 125V dc | |
| Contact AC Voltage | 240V ac | |
| Depth | 116mm | |
| Switch Configuration | 1 CO | |
| Standards/Approvals | EN/ISO 13850, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-5-5, EN/IEC 60204-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 4520 | |
| Hazardous Area Certification | No | |
| Head Diameter | 40mm | |
| Length | 114.30mm | |
| Width | 40mm | |
| Push Button Material | Plastic | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Schneider Electric | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 30mm | ||
Contact Configuration SPST | ||
Housing Material Metal | ||
Push Button Actuation Turn to Release | ||
Series Harmony 9001K | ||
Illuminated No | ||
IP Rating IP66 | ||
Colour Red | ||
Terminal Type Screw Clamp | ||
Contact Current 3A | ||
Head Style Mushroom | ||
Contact DC Voltage 125V dc | ||
Contact AC Voltage 240V ac | ||
Depth 116mm | ||
Switch Configuration 1 CO | ||
Standards/Approvals EN/ISO 13850, EN/IEC 60947-5-1, JIS C 852, EN/IEC 60947-5-5, EN/IEC 60204-1, CSA C22.2 No 14, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C 4520 | ||
Hazardous Area Certification No | ||
Head Diameter 40mm | ||
Length 114.30mm | ||
Width 40mm | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- MX
Schneider Electric Harmony 9001K Series Emergency Stop Push Button, 30mm Cutout Diameter, 250V Voltage Rating - 9001KR16H13
This emergency stop push button is designed for panel mounting, making it an essential component in various industrial applications. Featuring a robust construction with a cutout diameter of 30mm, it combines reliability and safety in a Compact design. The push button has a turn-to-release actuation mechanism, enhancing its usability in critical situations. The push button's dimensions include a width and height of 40mm, with a depth of 116mm, ensuring efficient integration within control panels.
Features & Benefits
• Turn to release operation simplifies emergency shutdown processes
• IP66 rating ensures protection against dust and water ingress
• Red mushroom shape is easily identifiable for quick access
• Auxiliary contacts allow for added functionality and control
• Metal bezel contributes to a sturdy design for industrial use
• Designed with a generous supply current of 3A for reliable performance
• IP66 rating ensures protection against dust and water ingress
• Red mushroom shape is easily identifiable for quick access
• Auxiliary contacts allow for added functionality and control
• Metal bezel contributes to a sturdy design for industrial use
• Designed with a generous supply current of 3A for reliable performance
Applications
• Ideal for use in manufacturing equipment requiring emergency stops
• Commonly found in automated production lines for safety compliance
• Utilised in machinery to ensure immediate halting capabilities
• Suitable for integration into various electrical control systems
• Commonly found in automated production lines for safety compliance
• Utilised in machinery to ensure immediate halting capabilities
• Suitable for integration into various electrical control systems
How does the design enhance safety during operation?
The distinct red mushroom shape is designed to be highly visible, ensuring immediate recognition in emergency situations. Its Compact size also allows for convenient placement within reach of operators, facilitating quick access and response.
What materials are used in the push button construction?
The housing is constructed from Durable black plastic, whilst the bezel is MADE of metal, providing both robustness and a professional finish that meets industry standards.
Can it be used in harsh environments?
Yes, the IP66 rating confirms that it is resistant to dust and can withstand high-pressure water jets, making it suitable for use in demanding industrial settings.
