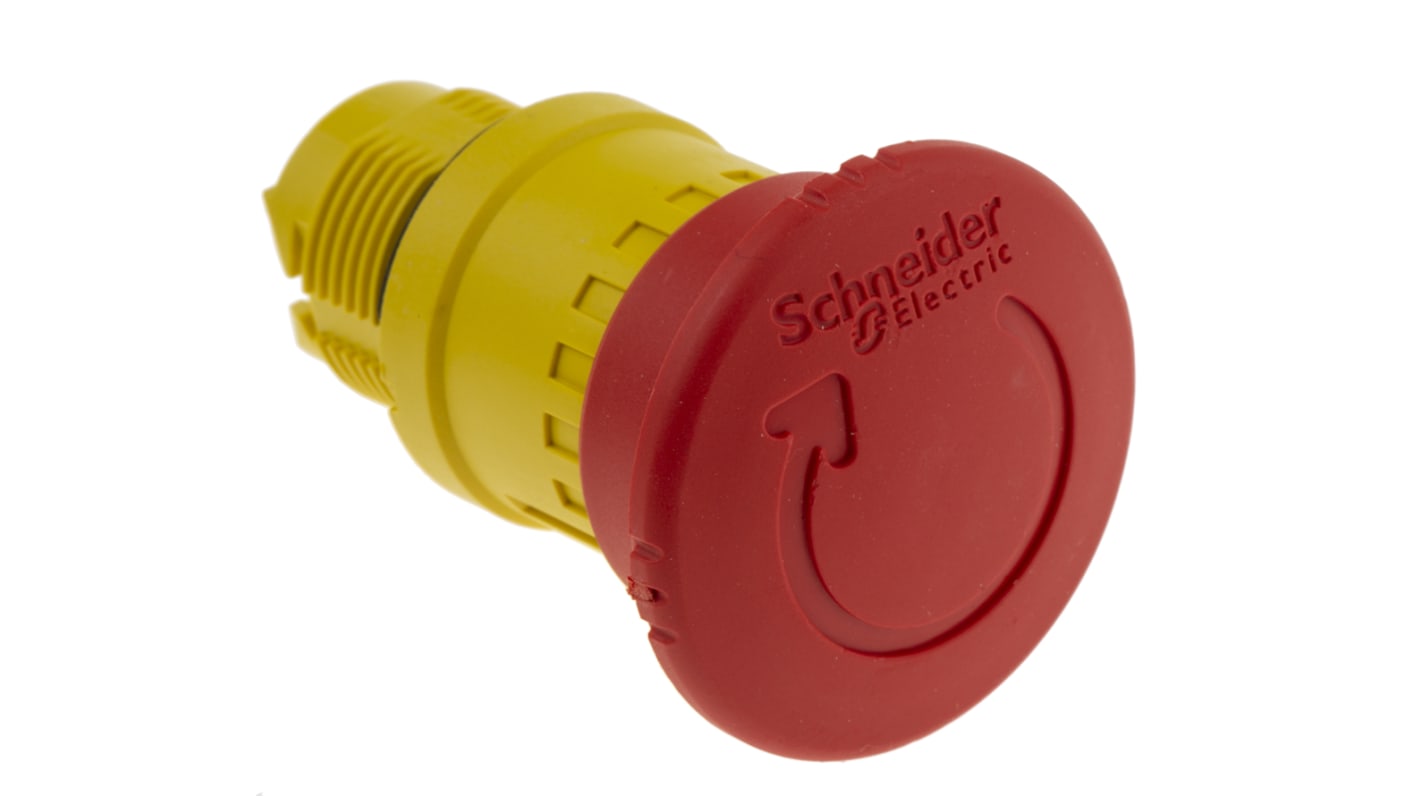

Schneider Electric Harmony XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC
- RS Stock No.:
- 795-1312
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XB5AS8442
- ผู้ผลิต / Manufacturer:
- Schneider Electric
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each
THB3,422.69
(exc. VAT)
THB3,662.28
(inc. VAT)
| Units | Per unit |
| 1 - 1 | THB3,422.69 |
| 2 - 4 | THB3,080.42 |
| 5 + | THB2,772.38 |
- RS Stock No.:
- 795-1312
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- XB5AS8442
- ผู้ผลิต / Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- CZ
รายละเอียดสินค้า / Product Details
Schneider Electric | Harmony XB5 Series | Emergency Stop Push Button
The Harmony XB5 range of modular emergency stop push buttons offers you the reassurance of quality, efficiency and simplicity all in one. Designed with robust, durable material you can use this E-Stop button in a variety of different scenarios and industrial applications.
Features and benefits
• Strong resistance to chemicals (cleaning agents, alcohol, oils & detergents) offering you the flexibility of area of use for your E-stops.
• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel.
• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation.
• Simple, easy and quick panel mounting installation, saving you time and effort
• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more.
• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances.
Protection ratings -
• Conformity with IEC, UL, CSA & CCC EAC standards as well as JIS, CE marking (Marine approvals)
• IP 66 rated (Dust-tight, with no ingress of dust + water protection i.e. powerful jets of water)
• IP 67 rated (Push button is protected against short term immersion)
• IP 69 & 69K (E-stop is protected against close-range high pressure, specifically high-temperature spray downs up to 7,000,000 Pa at 55 °C, distance 0.1 m)
• Shock protection as standard, levelling up to IK03 rating
• NEMA 4X & NEMA 13 remarkably resistant to corrosion and severe environments, dust and water.
• Greater vibration resistance alongside shake-proof terminal screws to prevent the E-stop loosening from its mounting / panel.
• Easily identifiable by its pronounced round red button which is easily operated by all users of any level. The device can then also be reset by a simple 'Turn to release' operation.
• Simple, easy and quick panel mounting installation, saving you time and effort
• Labelled 'Green Premium' by Schneider Electric, affirming their commitment to offering you sustainability. Green Premium products provide you with detail around regulatory compliance, environmental impact and more.
• Mechanical durability of 300000 cycles, providing you with reliable, continuous operation when you need it in those unforeseen circumstances.
Protection ratings -
• Conformity with IEC, UL, CSA & CCC EAC standards as well as JIS, CE marking (Marine approvals)
• IP 66 rated (Dust-tight, with no ingress of dust + water protection i.e. powerful jets of water)
• IP 67 rated (Push button is protected against short term immersion)
• IP 69 & 69K (E-stop is protected against close-range high pressure, specifically high-temperature spray downs up to 7,000,000 Pa at 55 °C, distance 0.1 m)
• Shock protection as standard, levelling up to IK03 rating
• NEMA 4X & NEMA 13 remarkably resistant to corrosion and severe environments, dust and water.
Applications
• Machine & control panels, material handling
• Food/Beverage industries (ideal for use in areas with wash down procedures)
• Commercial applications such as airports, restaurants, office buildings.
• Food/Beverage industries (ideal for use in areas with wash down procedures)
• Commercial applications such as airports, restaurants, office buildings.
XB5AS8442 Harmony XB5 Schneider Electric Emergency Stop Push Button.
- Emergency stop, emergency switching off push button.
- Harmony XB5.
- Bezel –Plastic, dark grey.
- Plastic fixing collar.
- Mounting diameter 22 mm.
- Round shape, standard head type, red mushroom 40 mm diameter (unmarked).
- Release reset, Turn to release, push-pull.
- Operator trigger action /mechanical latching.
- 1 NC Contact, slow break.
- Screw clamp terminal connection.
- 300000 Durability cycles.
- Silver alloy (Ag/Ni) contacts.
- Vibration and shock resistant.
Screw Head Shape.
- Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat 4 mm screwdriver, Slotted compatible with flat 5.5 mm screwdriver.
Protection.
- IP 66 to IEC 60529, IP 67, IP 69, IP 69K, NEMA 13, NEMA 4X, IK 03 to IEC 50102.
Standards.
- EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-5-4, IEC 60364-5-53, EN/IEC 60204-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/ISO 13850, JIS C8201-1.
Certification.
- CSA, LROS (Lloyds register of shipping,) DNV, RINA, BV, UL listed, G.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Mounting Type | Panel Mount |
| Cutout Diameter | 22mm |
| Contact Configuration | 1NC |
| Push Button Actuation | Twist Release |
| Illuminated | No |
| Series | Harmony XB5 |
| Colour | Red |
| Voltage Rating | 600V ac |
| Supply Current | 1.2A |
| Depth | 77.5mm |
| Pole and Throw Configuration | SPST |
| Push Button Material | Plastic |
