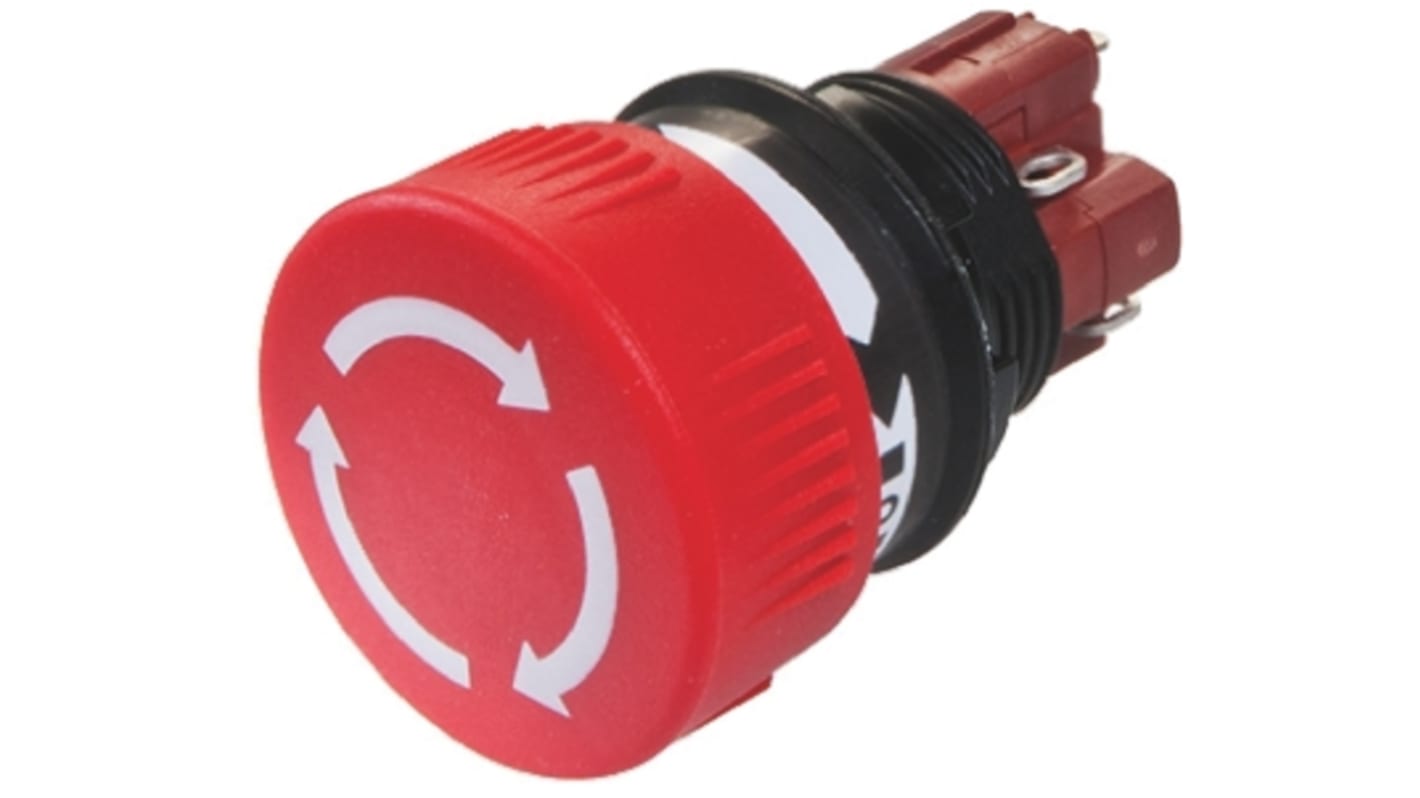

EAO 51-256 Series Maintained Emergency Stop Push Button, Panel Mount, 16 mm Cutout, SPDT, IP65

This push button stop switch from EAO is used to stop operations in the event of emergency. Maintained actuation means you press it once to activate, then twist the knob to release, meaning equipment will stay stopped until you're ready to restart it. It's simple to use thanks to its ergonomic design, while the red colour enables easy identification in the event of an emergency. The component is made of a robust plastic material for resistance to wear and corrosion. Thanks to its IP65 rating, it's protected against dust and low-pressure water jets, making it a good choice for use in harsh environments.

• Solder terminals for a simple and secure connection

• Machine controls

This stop switch has a light weight of just 0.011kg, so it will place minimal strain on your panel.

EAO Stop Switch, Series 51 is a compact design stop switch with less than 19mm back panel depth. The Series 51 Stop Switch utilises a mono block design with an integral switch which minimises the back panel depth and offers an extremely rugged construction that protects the switch from damage. The series 51 Stop Switch has been tested beyond 100,000 actuations. Typical switch applications include medical diagnostic equipment, machine and process controls, hand held terminals, supermarket checkouts and many others.

Back panel depth of only 18.8 mm

ENEC (EN61058-1), CSA, CB
