Omron A22NE-PD Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 1 NO/2 NC, IP65

RS Stock No.:: 188-9177
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: A22NE-L-PD12-N
ผู้ผลิต:: Omron

Omron A22NE-PD Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 1 NO/2 NC, IP65

ยอดรวมย่อย (1 ชิ้น)*

THB2,720.90

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,911.36

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

111 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB2,720.90

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 188-9177
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: A22NE-L-PD12-N
ผู้ผลิต:: Omron

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Omron
	Product Type	Emergency Stop Push Button
	Mount Type	Panel Mount
	Cutout Diameter	22mm
	Contact Configuration	1 NO/2 NC
	Push Button Actuation	Twist Release
	Series	A22NE-PD
	Illuminated	Yes
	IP Rating	IP65
	Colour	Red
	Contact DC Voltage	250V dc
	Contact AC Voltage	250V ac
	Depth	87mm
	Hazardous Area Certification	NO
	Standards/Approvals	No
	Safety Contacts	NC

	เลือกทั้งหมด
	Brand Omron
	Product Type Emergency Stop Push Button
	Mount Type Panel Mount
	Cutout Diameter 22mm
	Contact Configuration 1 NO/2 NC
	Push Button Actuation Twist Release
	Series A22NE-PD
	Illuminated Yes
	IP Rating IP65
	Colour Red
	Contact DC Voltage 250V dc
	Contact AC Voltage 250V ac
	Depth 87mm
	Hazardous Area Certification NO
	Standards/Approvals No
	Safety Contacts NC

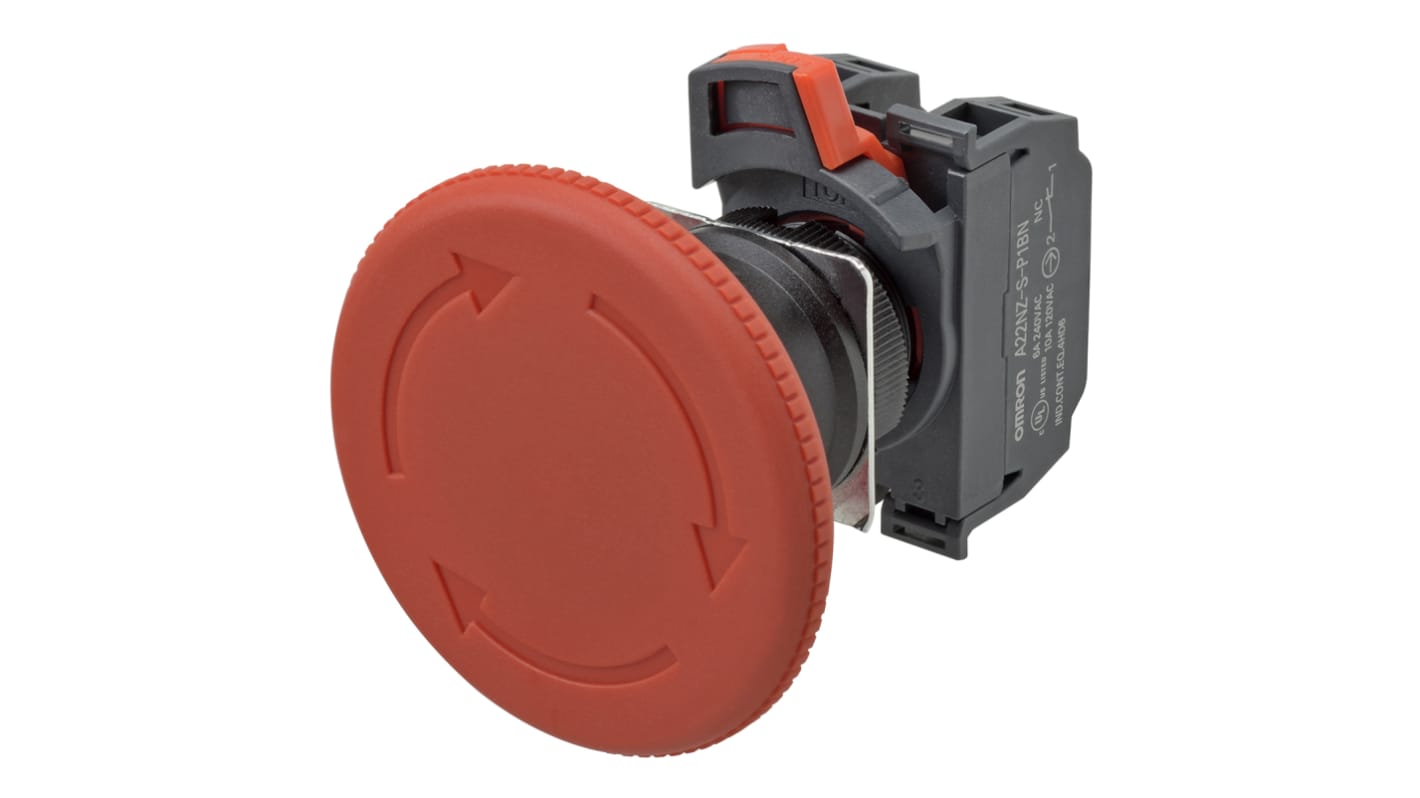

Omron Emergency Stop Push Button, 60mm Head Diameter, IP65 - A22NE-L-PD12-N

This emergency stop push button is a mechanically operated safety control designed to halt machinery functions in industrial settings. It features a large red mushroom head for Rapid manual intervention and is suited to environments where a robust, non-illuminated stop device with a turn-to-reset action is required.

Features & Benefits

• Red 60mm mushroom head for Rapid manual intervention
• Turn-to-reset actuation to prevent accidental restart
• Contact arrangement 2NC 1NO to support safety interlocks
• Rated for 250V AC and 250V DC for versatile system integration
• IP65 protection against dust ingress and water jets
• Push-in terminals for quick, secure wiring connections

Applications

• Suitable for emergency machine stops on factory production lines
• Ideal for integration into control panels for automation systems
• used with electrical cabinets requiring high ingress protection
• Can be used for safety interlocks on mechanical handling equipment
• Suitable for retrofit of safety stations in assembly areas

What type of contact configuration does it use and why is that useful?

It uses two normally closed and one normally open contacts, allowing separate safety circuits and signalling circuits to be wired independently for fault-tolerant shutdown and status indication.

How does the reset mechanism affect restart procedures?

The turn-to-reset mechanism requires a deliberate rotary action to return the actuator, preventing accidental restarts after an emergency stop has been engaged.

What mounting or Terminal considerations should installers note?

The device uses push-in terminals which enable Faster termination without screw clamps and reduce installation time in confined panel spaces.

Is the unit suitable for wet or dusty production areas?

With an IP65 rating, the enclosure resists dust ingress and water jets, making it appropriate for harsh industrial environments.

Can the switch handle both AC and DC control circuits?

Yes, the contacts are specified for use at 250V for both AC and DC applications, supporting a range of control voltage requirements.
