ABB Jokab Smile 11 EAR Tina Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 32.2 mm Cutout,
- RS Stock No.:
- 176-0056
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2TLA030050R0100 Smile 11 EAR Tina
- ผู้ผลิต:
- ABB Jokab
ยอดรวมย่อย (1 ชิ้น)*
THB6,087.33
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB6,513.44
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 8 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB6,087.33 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 176-0056
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2TLA030050R0100 Smile 11 EAR Tina
- ผู้ผลิต:
- ABB Jokab
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ABB Jokab | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 32.2mm | |
| Push Button Actuation | Twist Release | |
| Series | Smile 11 EAR Tina | |
| Illuminated | Yes | |
| IP Rating | IP65 | |
| Colour | Red | |
| Depth | 57mm | |
| Length | 57mm | |
| Standards/Approvals | Toxic Substances Control Act - TSCA, REACH Declaration, Conflict Minerals Reporting Template (CMRT)), RoHS, CSA | |
| Hazardous Area Certification | NO | |
| Width | 0.04m | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ABB Jokab | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 32.2mm | ||
Push Button Actuation Twist Release | ||
Series Smile 11 EAR Tina | ||
Illuminated Yes | ||
IP Rating IP65 | ||
Colour Red | ||
Depth 57mm | ||
Length 57mm | ||
Standards/Approvals Toxic Substances Control Act - TSCA, REACH Declaration, Conflict Minerals Reporting Template (CMRT)), RoHS, CSA | ||
Hazardous Area Certification NO | ||
Width 0.04m | ||
- COO (Country of Origin):
- EE

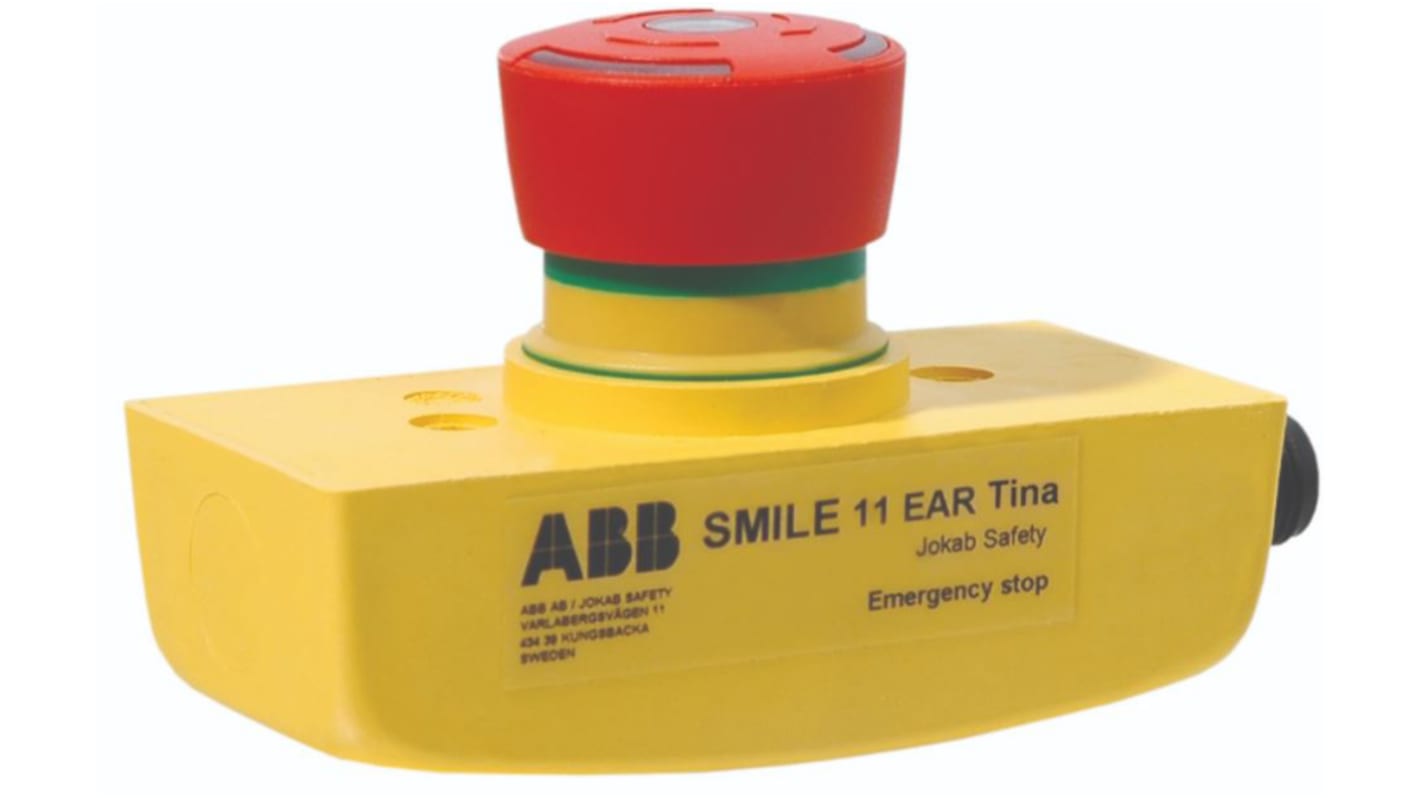

ABB Smile 11 EAR Tina Series Emergency Stop Push Button, Red, 24V Contact DC Voltage - 2TLA030050R0100 Smile 11 EAR Tina
This emergency stop push button provides a clear, illuminated means to halt machinery in industrial settings and is engineered for surface-mounted installations. It is intended for DC control circuits and incorporates a turn-release actuation to reset the control once the stop condition has been addressed. The device is suited to environments requiring ingress protection and features an M12 connector for electrical termination.
Features and Benefits:
• 24V DC contact voltage for low-voltage control applications
• IP65 enclosure rating protects against dust and water jets
• Red illuminated actuator for Rapid Visual status indication
• Turn-release mechanism prevents accidental reactivation
• M12 Terminal simplifies secure connectorised wiring
• Complies with CSA and RoHS for documented regulatory coverage
• IP65 enclosure rating protects against dust and water jets
• Red illuminated actuator for Rapid Visual status indication
• Turn-release mechanism prevents accidental reactivation
• M12 Terminal simplifies secure connectorised wiring
• Complies with CSA and RoHS for documented regulatory coverage
Applications
• Suitable for factory automation emergency shut-down circuits
• Ideal for control panels on production machinery
• Used with conveyor systems requiring visible E-stop indication
• Can be used for safety interfaces on test rigs and benches
• Suitable for retrofitting to surface-mounted operator stations
• Ideal for control panels on production machinery
• Used with conveyor systems requiring visible E-stop indication
• Can be used for safety interfaces on test rigs and benches
• Suitable for retrofitting to surface-mounted operator stations
What type of connector does it use for wiring?
It uses an M12 connector that enables straightforward plug-in termination and quick replacement without direct Terminal screwing.
How is the actuator returned to the operational state after activation?
The actuator resets via a turn-release action which requires a deliberate rotary motion to clear the stop condition.
Is the unit suitable for use in wet production areas?
The IP65 rating means the enclosure is protected against ingress of dust and low-pressure water jets, making it appropriate for many wet-area applications.
Which nominal voltage should the control circuit provide?
The contact arrangement is specified for 24V DC operation and should be used within that DC voltage rating.
