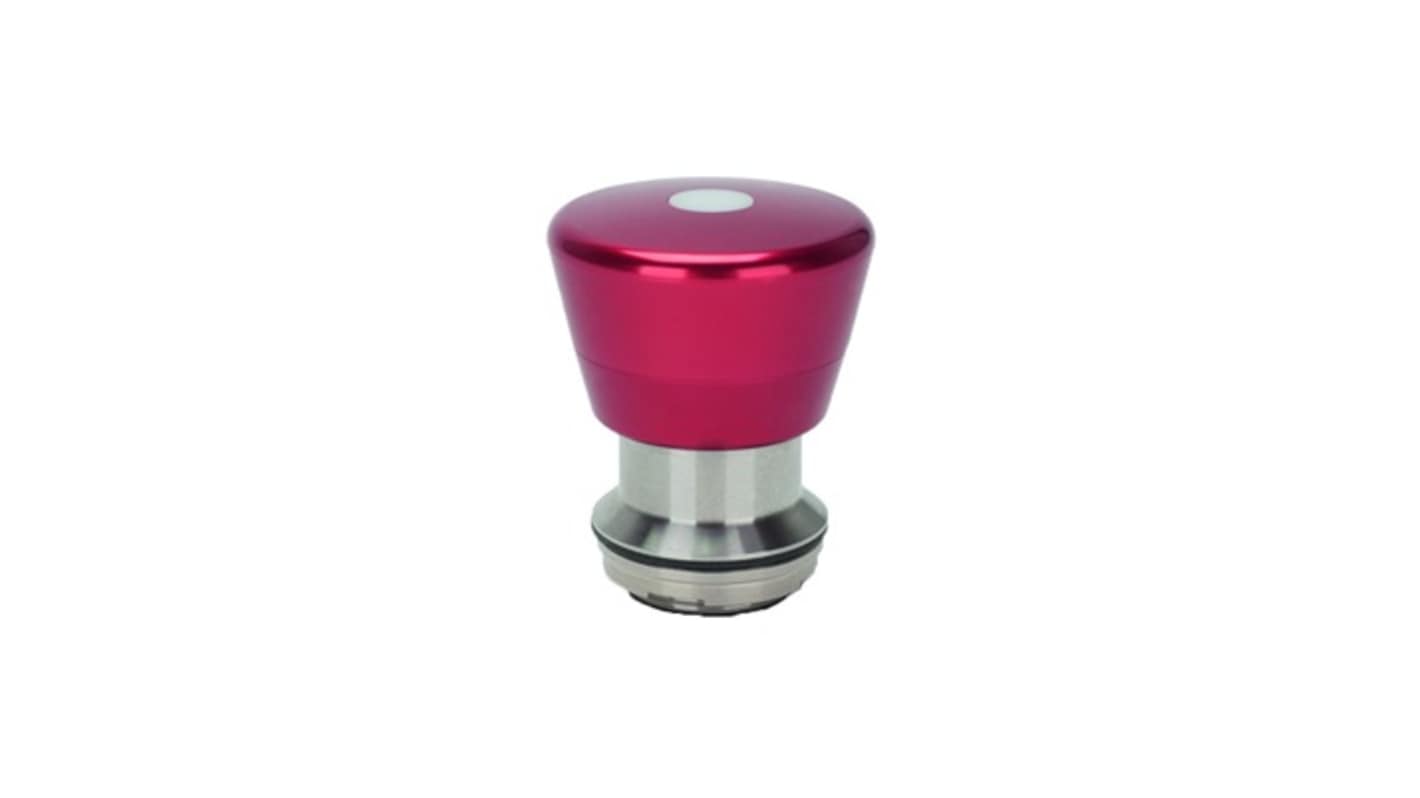

RAFI RAFIX 22 FSR Series Latching Emergency Stop Push Button, PCB, 22.3 mm Cutout, DPST, IP67, IP69K, IP65
- RS Stock No.:
- 523-390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1.30.283.611/0300
- ผู้ผลิต:
- RAFI
หมดสต็อกชั่วคราว
- RS Stock No.:
- 523-390
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1.30.283.611/0300
- ผู้ผลิต:
- RAFI
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RAFI | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | PCB | |
| Cutout Diameter | 22.3mm | |
| Contact Configuration | DPST | |
| Push Button Actuation | Latching | |
| Series | RAFIX 22 FSR | |
| Illuminated | No | |
| IP Rating | IP67, IP69K, IP65 | |
| Colour | Red | |
| Contact Current | 100mA | |
| Contact DC Voltage | 35V dc | |
| Contact AC Voltage | 250V ac | |
| Depth | 49.4mm | |
| Hazardous Area Certification | CE | |
| Standards/Approvals | RoHS Compliant, DIN EN 60529, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14, IEC 60068-2-33, REACH Compliant | |
| Length | 31.3mm | |
| Head Diameter | 31.3mm | |
| Width | 29.8mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RAFI | ||
Product Type Emergency Stop Push Button | ||
Mount Type PCB | ||
Cutout Diameter 22.3mm | ||
Contact Configuration DPST | ||
Push Button Actuation Latching | ||
Series RAFIX 22 FSR | ||
Illuminated No | ||
IP Rating IP67, IP69K, IP65 | ||
Colour Red | ||
Contact Current 100mA | ||
Contact DC Voltage 35V dc | ||
Contact AC Voltage 250V ac | ||
Depth 49.4mm | ||
Hazardous Area Certification CE | ||
Standards/Approvals RoHS Compliant, DIN EN 60529, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14, IEC 60068-2-33, REACH Compliant | ||
Length 31.3mm | ||
Head Diameter 31.3mm | ||
Width 29.8mm | ||
- COO (Country of Origin):
- HU
The RAFI Emergency stop round collar control devices are defined at RAFI as modular elements, consisting of an actuating element, if necessary a coupling and an individual contact or lighting unit. Actuating elements (such as pushbuttons, emergency stop actuators, etc.) have the intended tactility, reset and function only when assembled with the appropriate switching elements.
Emergency stop in classic design
Small installation depth 9.2 mm PCB or 27 mm QC
Connection types printed circuit board connection PCB or flat quick-connect terminals QC
PCB switching elements minimize assembly errors
