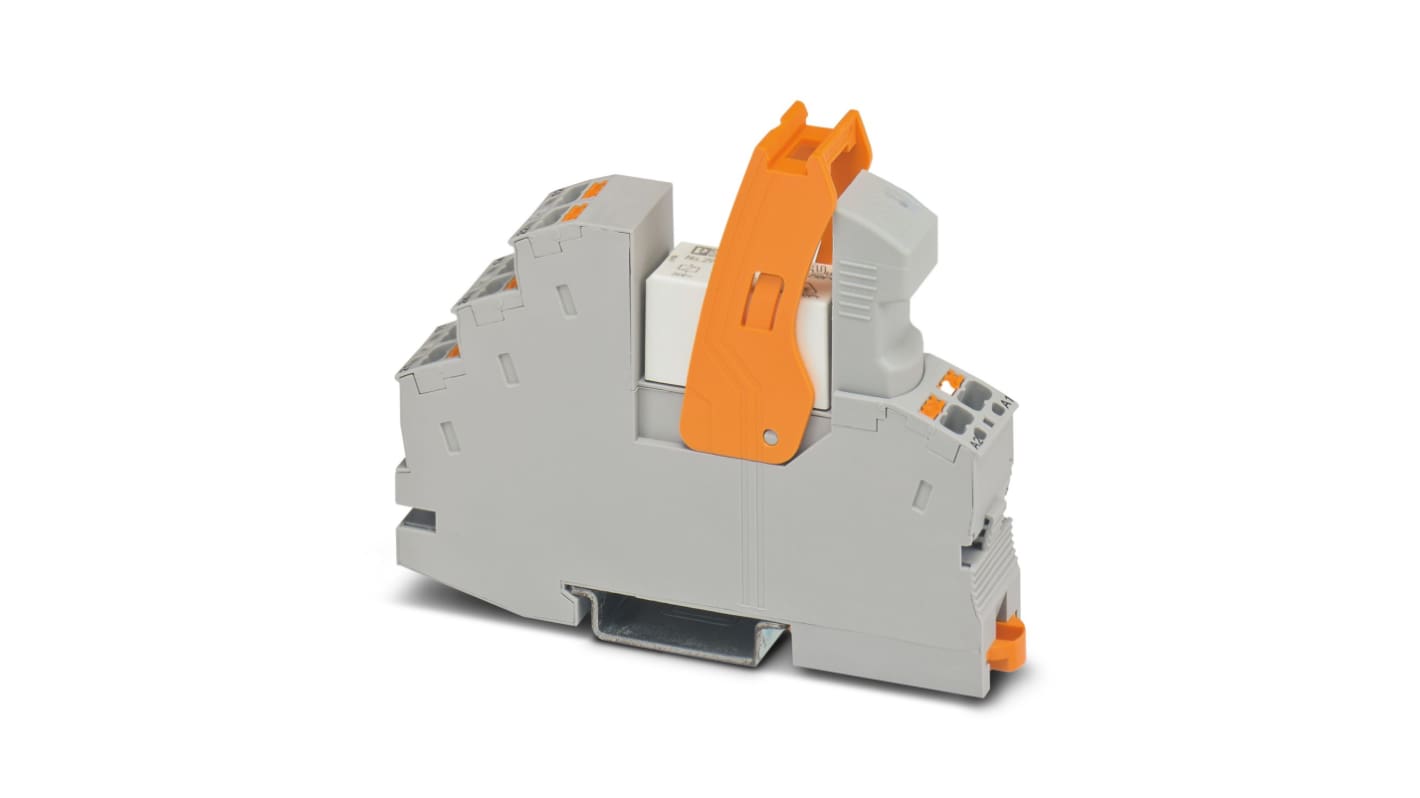

Phoenix Contact RIF-1-RPT-LDP-12DC/1X21 Series Relay Module, DIN Rail Mount, 12V dc Coil, SPDT, 1-Pole

RS Stock No.:: 890-3907
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 2906224
ผู้ผลิต:: Phoenix Contact

Phoenix Contact RIF-1-RPT-LDP-12DC/1X21 Series Relay Module, DIN Rail Mount, 12V dc Coil, SPDT, 1-Pole

ยอดรวมย่อย (1 ชิ้น)*

THB323.14

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB345.76

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

13 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB323.14

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 890-3907
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: 2906224
ผู้ผลิต:: Phoenix Contact

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Phoenix Contact
	Coil Voltage	12V dc
	Contact Configuration	SPDT
	Mounting Type	DIN Rail
	Number of Poles	1
	Series	RIF-1-RPT-LDP-12DC/1X21
	Maximum Input Voltage	16.8V dc
	Minimum Input Voltage	9.6V
	Terminal Type	Plug In, Screw
	Switching Voltage	12 → 250V ac/dc
	Depth	75mm
	Height	96mm
	Length	75mm
	Contact Material	Silver Alloy
	Input Current	33mA
	Turn On Time	8ms
	Life	3 x10^7 Cycles
	Standards Met	DIN EN 50178, IEC 62103
	Maximum Operating Temperature	+70°C
	Relay Switching Classification	Pre-Assembled Relay Module
	Turn Off Time	10ms
	Accessory Type	Relay Module
	Operating Temperature Range	-40 → +70°C
	Minimum Operating Temperature	-40°C
	Input Voltage Range	9.6 → 16.8V dc
	Dimensions	75 x 96 x 16mm

	เลือกทั้งหมด
	Brand Phoenix Contact
	Coil Voltage 12V dc
	Contact Configuration SPDT
	Mounting Type DIN Rail
	Number of Poles 1
	Series RIF-1-RPT-LDP-12DC/1X21
	Maximum Input Voltage 16.8V dc
	Minimum Input Voltage 9.6V
	Terminal Type Plug In, Screw
	Switching Voltage 12 → 250V ac/dc
	Depth 75mm
	Height 96mm
	Length 75mm
	Contact Material Silver Alloy
	Input Current 33mA
	Turn On Time 8ms
	Life 3 x10^7 Cycles
	Standards Met DIN EN 50178, IEC 62103
	Maximum Operating Temperature +70°C
	Relay Switching Classification Pre-Assembled Relay Module
	Turn Off Time 10ms
	Accessory Type Relay Module
	Operating Temperature Range -40 → +70°C
	Minimum Operating Temperature -40°C
	Input Voltage Range 9.6 → 16.8V dc
	Dimensions 75 x 96 x 16mm

Datasheet 2906224

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: CN

Phoenix Contact RIF-1-RSC

Phoenix Contact RIF-1-RPT-LDP-12DC/1X21 Series Relay Module, 12V DC Coil Voltage, SPDT Contact Configuration - 2906224

This relay module is designed for various industrial applications, featuring a compact design with dimensions of 75 x 96 x 16 mm. The device operates with a coil voltage of 12V DC, making it ideal for integration into automation systems. Its robust construction ensures reliable performance under a wide range of operating conditions.

Features & Benefits

• Utilises a 12V DC coil voltage for versatile powering options
• SPDT contact configuration facilitates complex circuit management
• Designed for DIN rail mounting for easy installation in enclosures
• Plug-in terminal type enhances ease of connection and maintenance
• Operating temperature range of -40 to +70 °C supports diverse environments
• Capable of handling switching voltages from 12 to 250V AC/DC

Applications

• Suitable for controlling industrial machinery and equipment
• Used in automation systems requiring compact relay solutions
• Ideal for in electrical panels for effective switching
• Employed in control circuits within the mechanical industry

What is the input current rating, and how does it affect operation?

The input current rating is 33 mA, which ensures efficient energy use while maintaining reliable switching performance for various devices.

Can this module handle high-temperature environments?

Yes, it functions optimally within an operating temperature range of -40 to +70 °C, making it suitable for challenging conditions.

What distinguishes the plug-in terminal type from other connection methods?

The plug-in terminal type offers quick disconnection and reconnection, simplifying maintenance and reducing installation times compared to other methods.
