Phoenix Contact DEK-REL Series Interface Relay, DIN Rail, 24V dc Coil, SPDT, 9mA

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB2,900.64

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB3,103.68

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • 194 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น
ต่อหน่วย
1 - 9THB2,900.64
10 - 49THB2,842.63
50 +THB2,339.49

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
308-1276
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
2964500
ผู้ผลิต:
Phoenix Contact
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Phoenix Contact

Product Type

Interface Relay

Coil Voltage

24V dc

Coil Resistance

2.67kΩ

Contact Configuration

SPDT

Mount Type

DIN Rail

Series

DEK-REL

Terminal Type

Screw

Switching Current

6A

Coil Current

9mA

Switching DC Voltage

250V dc

Minimum Operating Temperature

-20°C

Switching AC Voltage

250V ac

Maximum Operating Temperature

50°C

Contact Material

Silver Alloy

Standards/Approvals

RoHS, REACH

Width

6.2mm

Length

80mm

Height

56mm

COO (Country of Origin):
CN

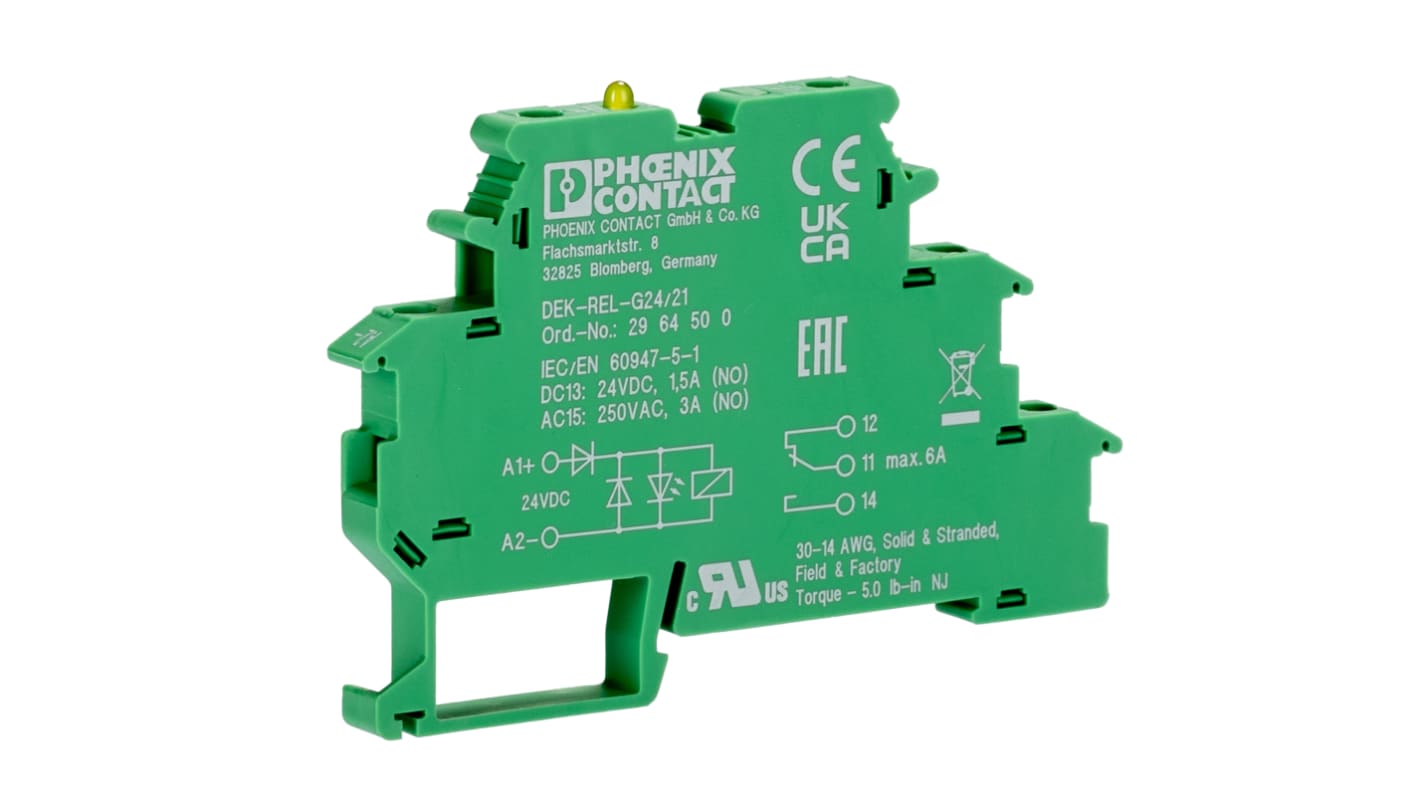

Phoenix Contact Interface Relay, 8ms Turn-On Time, Screw Terminal Type - DEK-REL-G24/21 - 2964500


When you need to communicate switching signals between components with significant voltage differences, choose this interface relay from Phoenix Contact. It provides galvanic isolation that prevents unwanted currents from flowing between different parts of your system. This helps avoid interference and increases safety by protecting against electric shocks.

You can mount this relay on a DIN rail, so it's quick and easy to install into your industrial automation setup. Screw termination achieves a solid connection and makes maintenance straightforward. With its speedy turn-on time of 8ms, you can count on this unit when you need to get things up and running fast. The housing has an IP67 rating, indicating that the relay is well protected against dust, high-pressure water jets and immersion. Although there's a lot of functionality packed into this relay, it measures up at just 6.2mm wide, so it fits easily into busy setups. You can use it in manufacturing plants, treatment facilities and mechanical workshops.

Features & Benefits


• LED switching indicator for at-a-glance status checks

• 250V switching voltage suits high-power applications

• Safe to use in a temperature range between -20°C and +50°C

Note

Use of EB 80-DIK... bridges in the DEK terminal blocks: Absorption of humidity from the ambient air as well as an unfavourable tolerance between a larger number of DEK terminal blocks and the EB 80-DIK... bridge may cause (minor) expansion of the DEK housing. When the EB 80-DIK... bridges are used, therefore, it is recommended that these be disconnected after about 10 to 12 DEK terminal blocks and a wire bridge to the next DEK terminal block be inserted in their place.
