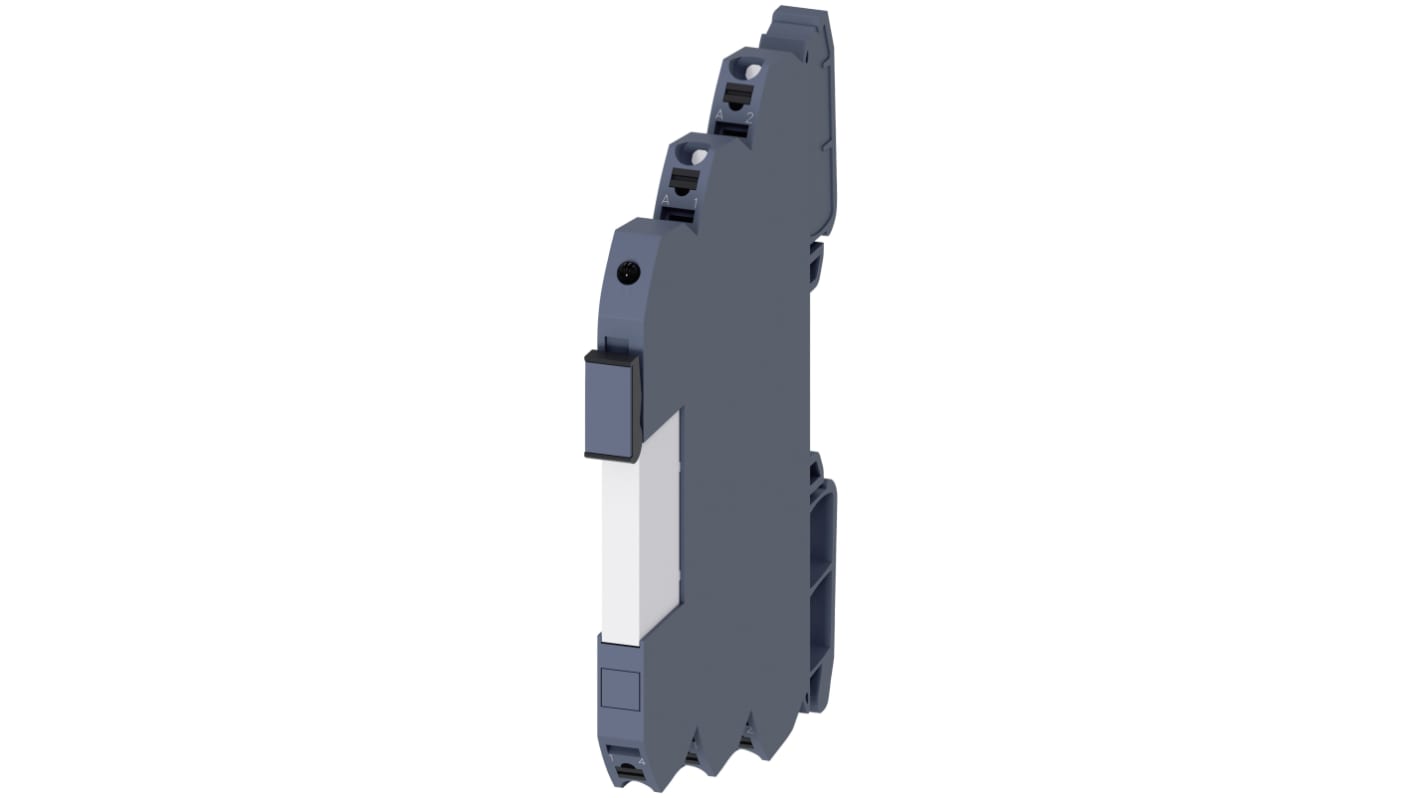

Siemens SIRIUS 3RQ3 Output Coupler with Plug-In Series Relay, Snap-On Rail Mount, 24V ac/dc Coil

ยอดรวมย่อย (1 ชิ้น)*

THB1,923.26

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,057.89

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
กำลังจะเลิกผลิต
  • 5 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น
ต่อหน่วย
1 +THB1,923.26

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
175-2341
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
3RQ3118-2AB00
ผู้ผลิต:
Siemens
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Siemens

Coil Voltage

24V ac/dc

Mounting Type

Snap-On Rail Mount

Series

SIRIUS 3RQ3 Output Coupler with Plug-In

Terminal Type

Cage Clamp

Depth

76mm

Height

93mm

Length

93mm

Contact Material

Silver Alloy

Input Current

6A

Relay Switching Classification

Plug-In Relay

Accessory Type

Relay Coupler

Operating Temperature Range

-25 → +60°C

Dimensions

6.2 x 93 x 76mm

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-25°C

Relay Type

Plug-In Module

Standards Met

CE

COO (Country of Origin):
TN

Siemens Relay, 24V AC/DC Coil Voltage, 6A Input Current - 3RQ3118-2AB00


This relay is an essential element in automation and control systems, designed for effective use across various electrical applications. The 24V relay has dimensions of 6.2mm in width, 93mm in height, and 76mm in depth. It features a plug-in module design that utilises a spring terminal for efficient connection. With an operating temperature range from -25 to +60°C, it provides consistent performance in varied environments.

Features & Benefits


• CE certified relay ensures compliance with safety standards
• AgSnO2 contact relay enhances switching longevity
• Snap-on rail mount design simplifies installation
• Operating frequency up to 72,000 1/h maximises efficiency
• Monostable switching behaviour ensures stable operation

Applications


• Suitable for controlling motors and machinery
• Effective in challenging electrical environments
• Integrated within safety and interlocking systems

Can it operate in low temperatures?


Yes, it functions effectively in temperatures as low as -25°C.

Is it user-friendly for installation?


Yes, the snap-on design facilitates quick mounting.

Can it handle multiple control circuits?


It supports various control and auxiliary circuit configurations.

Does it require specific terminal connections?


It uses spring-loaded terminals for straightforward connections.
