- RS Stock No.:
- 175-7759
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SK-gen4-35DT
- ผู้ผลิต / Manufacturer:
- 4D Systems
ดูหมวดหมู่นี้
สินค้าหมดและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
ขออภัย เราไม่มีสินค้าในสต็อกและไม่สามารถสั่งซื้อล่วงหน้าได้ในขณะนี้
ราคา / Price Each
THB3,320.35
(exc. VAT)
THB3,552.77
(inc. VAT)
Units | Per unit |
1 - 9 | THB3,320.35 |
10 - 49 | THB3,253.94 |
50 + | THB3,188.86 |
- RS Stock No.:
- 175-7759
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SK-gen4-35DT
- ผู้ผลิต / Manufacturer:
- 4D Systems
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- AU
รายละเอียดสินค้า / Product Details

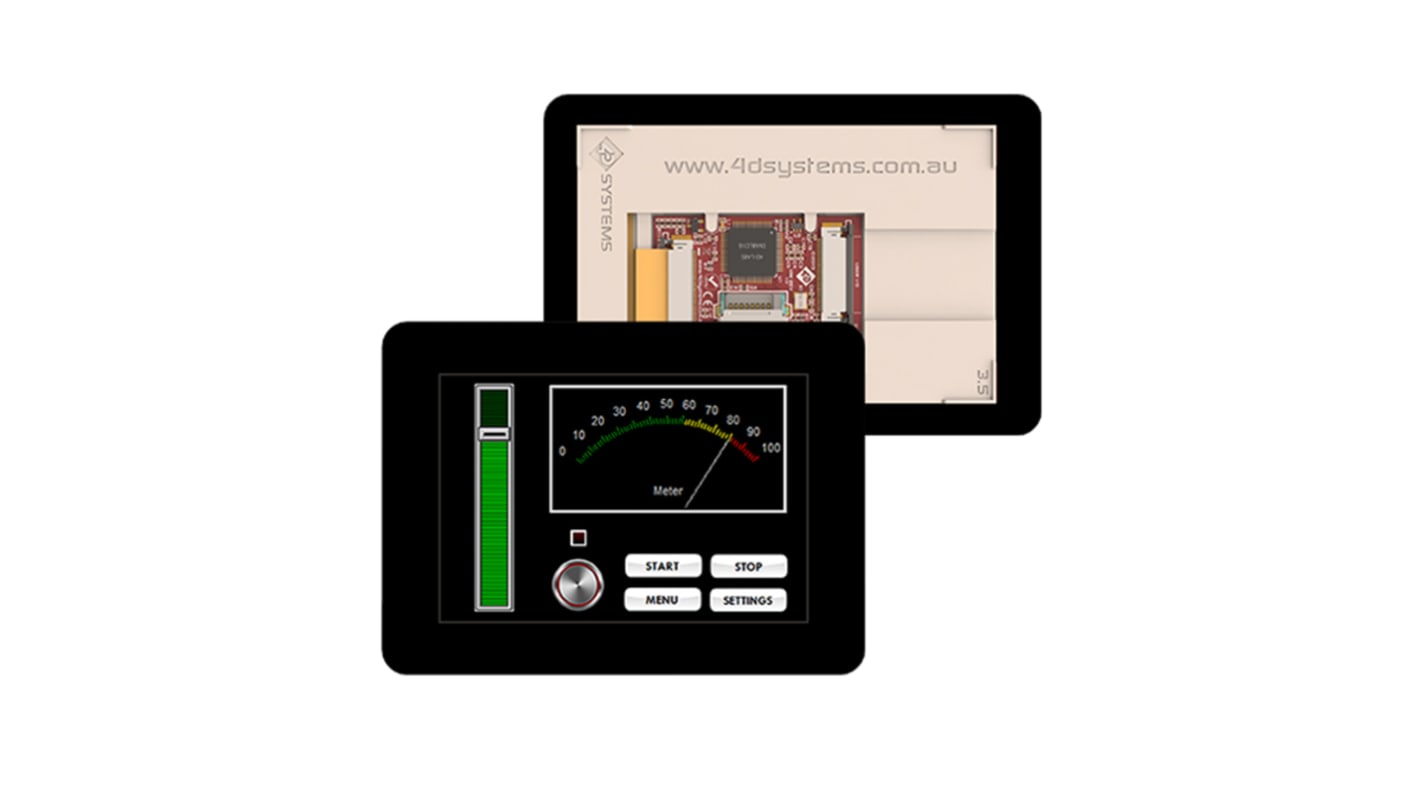

4D Systems Gen4 3.5in Display Module Starter Kit
The 4D Systems Gen4 display module starter kit is a 3.5in integrated colour TFT LCD with resistive touch powered by the well-known 4D systems Diablo16 graphics processor, which offers an array of functionality and options for designer users. The operating supply voltage range between 4V and 5.5V. This display module includes Gen4 integrated display module, gen4-IB Interface board, Gen4 Programming Adaptor (gen4-PA), 4GB micro-SD Card, 5-way cable for easy connection to a breadboard or host via the gen4-IB and 30-way 150mm FFC cable accessory boards for a range of functionality advancements.
Features and Benefits
16 x general-purpose I/O pins support fast 8-bit parallel data transfer through upper 8 bits
32kb SRAM memory for user application code and data
Display full-colour images with 320x480 Resolution, RGB 65K true to life colours
It has PWM audio pin driven by WAV files from micro-SD card and for sound generation, for an external amplifier.
On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
One SPI dedicated for SD card and 3x configurable SPI channels available.
Three I2C channel interface
32kb SRAM memory for user application code and data
Display full-colour images with 320x480 Resolution, RGB 65K true to life colours
It has PWM audio pin driven by WAV files from micro-SD card and for sound generation, for an external amplifier.
On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
One SPI dedicated for SD card and 3x configurable SPI channels available.
Three I2C channel interface
Applications
Embedded applications
Raspberry Pi
Raspberry Pi
Resolution 320x480
Brightness 182 cd/m2
Controller DIABLO16
Storage Temperature -30°C to +80°C
Connector 30 way FPC
Display Viewing Area (mm) 73.44 x 48.96
Module Dimensions (mm) 101.10 x 56.60 x 7.00
Supply Voltage 5.0V DC
Colours RGB 65K
Brightness 182 cd/m2
Controller DIABLO16
Storage Temperature -30°C to +80°C
Connector 30 way FPC
Display Viewing Area (mm) 73.44 x 48.96
Module Dimensions (mm) 101.10 x 56.60 x 7.00
Supply Voltage 5.0V DC
Colours RGB 65K
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Diagonal Display Size | 3.5in |
Display Technology | Resistive Touch Screen |
Kit Classification | Starter Kit |
Kit Name | Gen4 Diablo16 |
