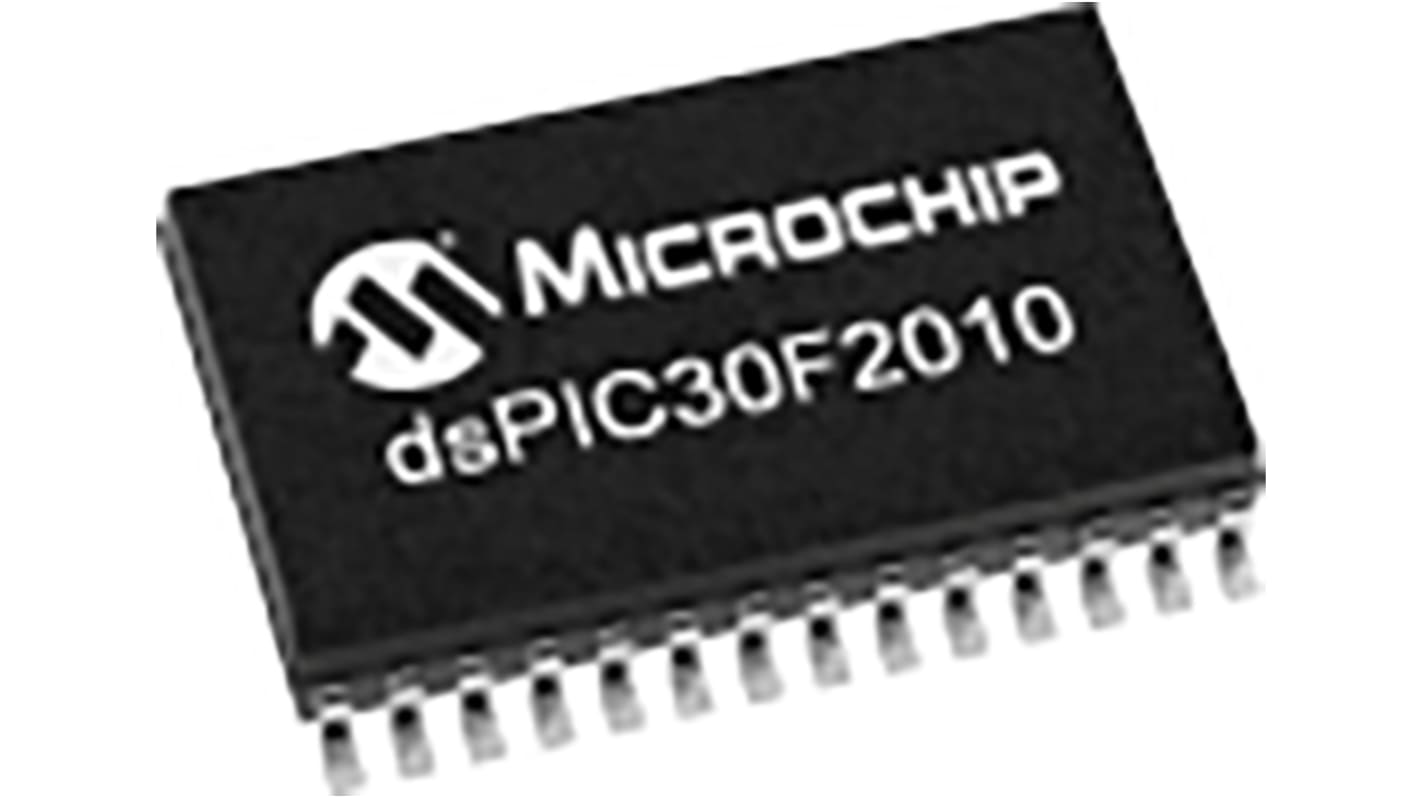

DSPIC30F2010-20I/SO Microchip DSPIC, 16bit Digital Signal Processor 40MHz 12 kB Flash 28-Pin SOIC

RS Stock No.:: 177-1576
หมายเลขชิ้นส่วนของผู้ผลิต:: DSPIC30F2010-20I/SO
ผู้ผลิต:: Microchip

DSPIC30F2010-20I/SO Microchip DSPIC, 16bit Digital Signal Processor 40MHz 12 kB Flash 28-Pin SOIC

ไม่พร้อมจำหน่ายในตอนนี้

เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ RS ตั้งใจที่จะลบสินค้านี้ออกจากกลุ่มผลิตภัณฑ์ในเร็วๆ นี้

RS Stock No.:: 177-1576
หมายเลขชิ้นส่วนของผู้ผลิต:: DSPIC30F2010-20I/SO
ผู้ผลิต:: Microchip

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Maximum Frequency	40MHz
	Series	DSPIC
	Device Million Instructions per Second	20MIPS
	Data Bus Width	16bit
	RAM Size	512 kB
	Program Memory Size	12 kB
	Program Memory Type	Flash
	Numeric and Arithmetic Format	ALU
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	28
	Typical Operating Supply Voltage	5.5 V
	Number of UART Channels	1
	Number of I2C Channels	1
	Number of Timers	2
	Number of SPI Channels	1
	Pulse Width Modulation	1 (2 x 16 bit)
	Dimensions	17.9 x 7.5 x 2.35mm
	Width	7.5mm
	PWM Resolution	16bit
	Minimum Operating Temperature	-40 °C
	ADC Channels	6
	Number of PWM Units	1
	Number of ADC Units	1
	ADC Resolution	10bit
	Length	17.9mm
	Maximum Operating Temperature	+85 °C
	Timer Resolution	16 bit, 32bit
	PWM Channels	2
	Height	2.35mm
	Timers	1 (1 x 32 bit), 1 (3 x 16 bit)
	ADCs	1 (6 x 10 bit)

	เลือกทั้งหมด
	Brand Microchip
	Maximum Frequency 40MHz
	Series DSPIC
	Device Million Instructions per Second 20MIPS
	Data Bus Width 16bit
	RAM Size 512 kB
	Program Memory Size 12 kB
	Program Memory Type Flash
	Numeric and Arithmetic Format ALU
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 28
	Typical Operating Supply Voltage 5.5 V
	Number of UART Channels 1
	Number of I2C Channels 1
	Number of Timers 2
	Number of SPI Channels 1
	Pulse Width Modulation 1 (2 x 16 bit)
	Dimensions 17.9 x 7.5 x 2.35mm
	Width 7.5mm
	PWM Resolution 16bit
	Minimum Operating Temperature -40 °C
	ADC Channels 6
	Number of PWM Units 1
	Number of ADC Units 1
	ADC Resolution 10bit
	Length 17.9mm
	Maximum Operating Temperature +85 °C
	Timer Resolution 16 bit, 32bit
	PWM Channels 2
	Height 2.35mm
	Timers 1 (1 x 32 bit), 1 (3 x 16 bit)
	ADCs 1 (6 x 10 bit)

Datasheet

COO (Country of Origin):: US

dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.

Additional Features:
High-Performance dsPIC30F core
Modified Harvard architecture
compiler optimized instruction set architecture
24-bit wide instructions, 16-bit wide data path
Up to 30 MIPS operation
DSP Engine for math intensive operations
Modulo and Bit-Reversed Addressing modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single cycle hardware fractional/ integer multiplier
Single cycle Multiply-Accumulate (MAC) operation
40-stage Barrel Shifter
Dual data fetch
Operating Conditions
Wide operating voltage range (2.5V to 5.5V)
Industrial and Extended temperature ranges
Peripheral Features High current sink/source I/O pins: 25 mA/25 mA
Optionally pair up 16-bit timers into 32-bit timer modules
3-wire SPI™ modules (supports 4 Frame modes)
I2C™ moduleg
