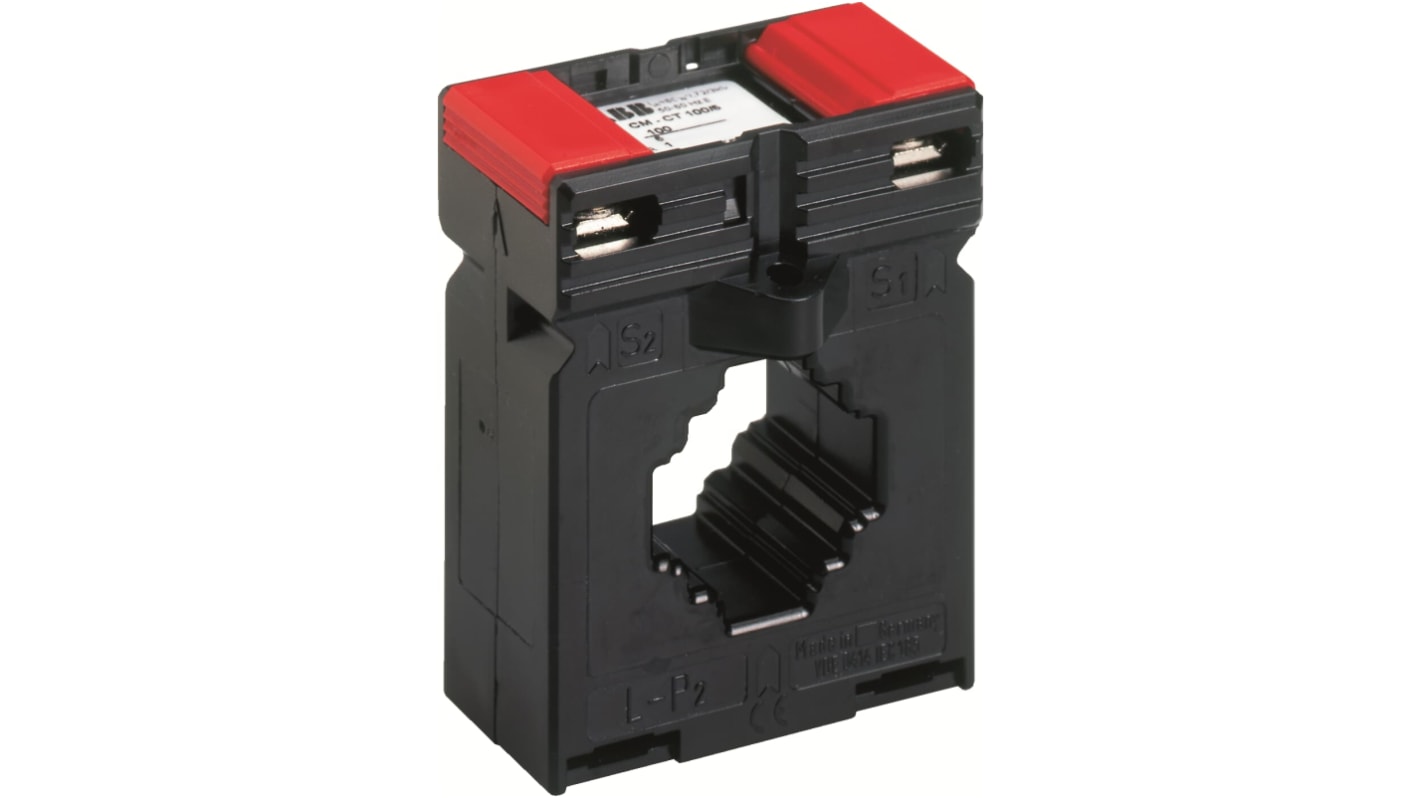

ABB CM Series Current Transformer 500 A 50 mm Bore
- RS Stock No.:
- 237-3177
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1SVR450117R5300
- ผู้ผลิต:
- ABB
ยอดรวมย่อย (1 ชิ้น)*
THB2,129.26
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,278.31
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,129.26 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 237-3177
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 1SVR450117R5300
- ผู้ผลิต:
- ABB
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ABB | |
| Product Type | Current Transformer | |
| Series | CM | |
| Secondary Current | 5 A | |
| Terminal Type | Screw | |
| Primary Current | 500A | |
| Width | 61 mm | |
| Weight | 0.21kg | |
| Length | 78.5mm | |
| Standards/Approvals | CSA, IEC/EN 61869-1, CE, UL 2367, UL 1604, IEC/EN 63000, UL 508, IEC/EN 61869-2 | |
| Depth | 48mm | |
| Mount Type | Snap-On, DIN Rail | |
| Maximum Operating Frequency | 60Hz | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 50 mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ABB | ||
Product Type Current Transformer | ||
Series CM | ||
Secondary Current 5 A | ||
Terminal Type Screw | ||
Primary Current 500A | ||
Width 61 mm | ||
Weight 0.21kg | ||
Length 78.5mm | ||
Standards/Approvals CSA, IEC/EN 61869-1, CE, UL 2367, UL 1604, IEC/EN 63000, UL 508, IEC/EN 61869-2 | ||
Depth 48mm | ||
Mount Type Snap-On, DIN Rail | ||
Maximum Operating Frequency 60Hz | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 50 mm | ||
- COO (Country of Origin):
- DE
ABB Series CM Current Transformer, 500:5 Current Ratio, 500A Input Current - 1SVR450117R5300
This current transformer by ABB with a current ratio of 500:5 is a vital component in electrical systems. It accurately measures current levels and ensures the smooth operation of machinery.
Features & Benefits
• Bore size of 50mm for easy installation
• High accuracy current ratio of 500:5
• Compact design for space-saving installation
• Sensor technology for precise measurements
• Suitable for single-phase monitors
Applications
• Ideal for measuring current in electrical systems
• Used for monitoring and controlling power consumption
Can it measure high current levels accurately?
Yes, this current transformer is designed to accurately measure current levels up to 500 A.
Will it work with single-phase monitors?
Yes, it is specifically designed to be suitable for single-phase monitors.
Is it easy to install?
Yes, the compact design of this transformer allows for easy and space-saving installation.
Does it require any additional accessories for mounting?
It comes with foot angle, insulating protective cap, and bar fastening screws for easy mounting.
What standards does it comply with?
This current transformer complies with standards such as IEC/EN 61869-1 and IEC/EN 61869-2.
