RS PRO Current Transformer 600 A 21 mm Bore

ยอดรวมย่อย (1 ชิ้น)*

THB2,229.40

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB2,385.46

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
มีในสต็อก
  • เพิ่มอีก 46 ชิ้นจะส่งได้หลังจากวันที่ 06 เมษายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 +THB2,229.40

*ตัวบ่งบอกราคา / price indicative

TH - SK- PDP
RS Stock No.:
171-8854
Distrelec หมายเลขบทความ:
304-05-349
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Product Type

Current Transformer

Secondary Current

5A

Terminal Type

Wire

Minimum Operating Temperature

-5°C

Primary Current

600A

Maximum Operating Temperature

55°C

Width

108mm

Depth

51mm

Standards/Approvals

UL94V-0, IEC 61869-1, IEC 60044-1, IEC 61010-2

Mount Type

Busbar, Wall, Cable

Maximum Operating Frequency

60Hz

Minimum Operating Frequency

50Hz

Bore Size

21mm

COO (Country of Origin):
IN

RS PRO Current Transformers

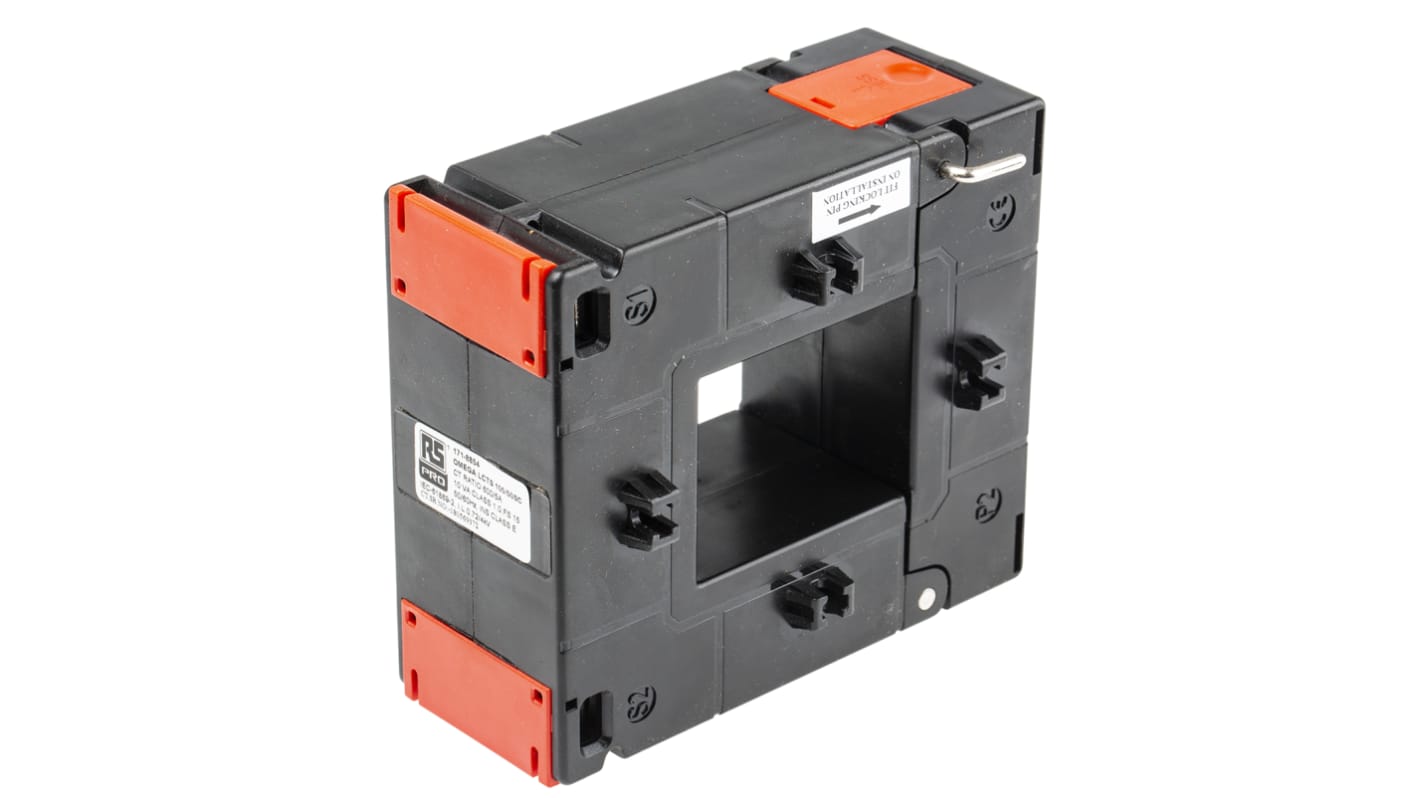

The RS PRO base mounted split core transformer has a current ratio of 600:5. It offers an efficient method by which the current can be measured without breaking the conductor, thereby reducing installation and commissioning time. It is a surface mounted device.

Features and Benefits


• Cost-effective moulded case

• Flame retardant grade enclosure

• Insulation class: E

• Operating temperature ranges between 20°C and 70°C

• System voltage 720V max

• Test voltage 3kV 50Hz 1min

Applications


• Commercial electric power distribution

• Electrical substations

Certifications


• IEC - 61010 - 2

• IEC 60044-1/IEC 61869-1

• IP20 rated

• UL94V-0
