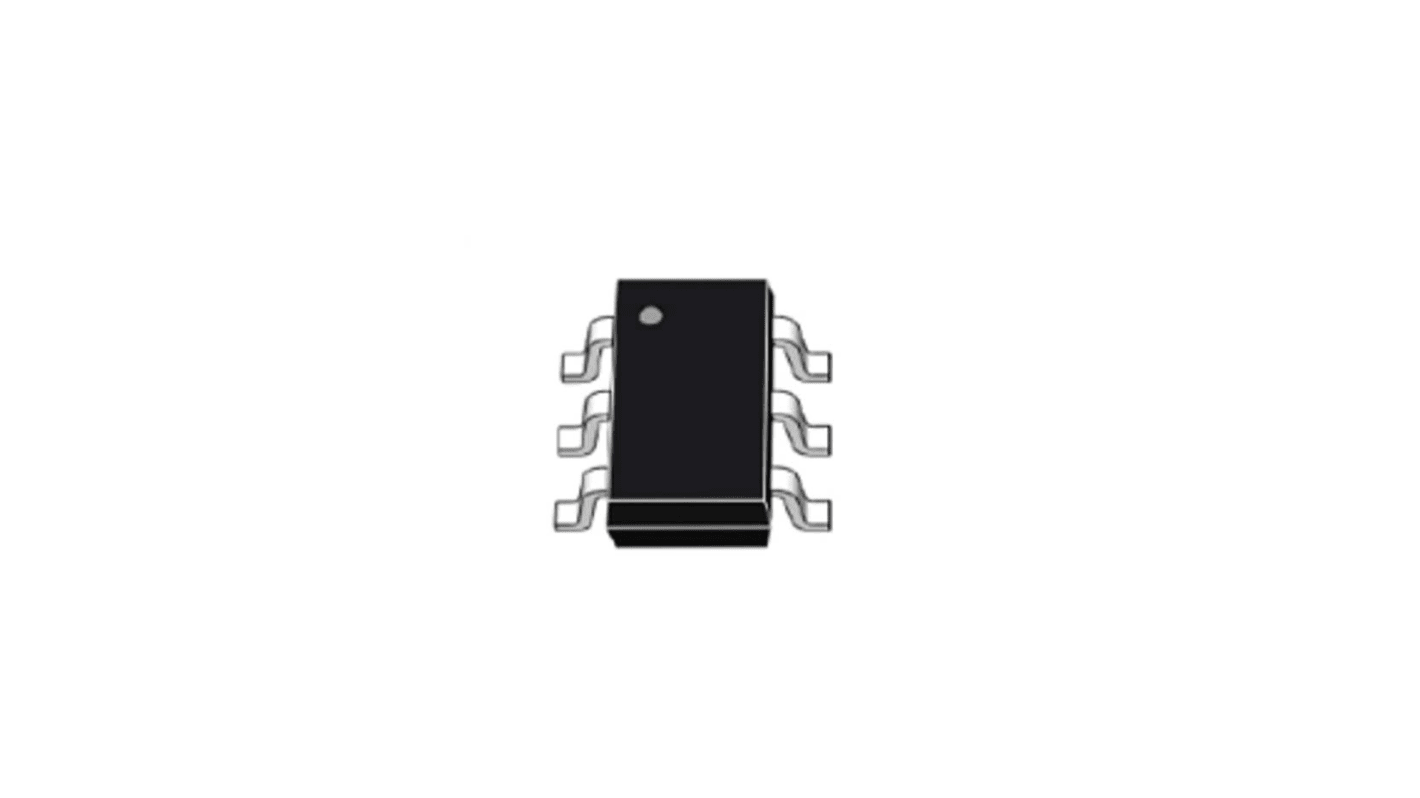

TSC213ICT STMicroelectronics, Current Sense Amplifier Single Bidirectional 6-Pin SC-70
- RS Stock No.:
- 203-3516
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSC213ICT
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 07/04/2025, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each (On a Reel of 3000)
THB47.146
(exc. VAT)
THB50.446
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | THB47.146 | THB141,438.00 |
| 6000 - 9000 | THB45.732 | THB137,196.00 |
| 12000 + | THB44.36 | THB133,080.00 |
| *ตัวบ่งบอกราคา / price indicative | ||
- RS Stock No.:
- 203-3516
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TSC213ICT
- ผู้ผลิต / Manufacturer:
- STMicroelectronics
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
The STMicroelectronics TSC210, TSC212 and TSC213 is a series of low/high side bi-directional zero-drift, current sense amplifier. It can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. There are three different versions available, each of them having a different gain. It is designed with a specific zero-drift architecture, which can achieve high precision. The TSC21x may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops.
Available in QFN10 (1.8x1.4) and SC70-6 type of package
Gain error is 1% max where as gain drift is 20 ppm/°C max
Offset drift is 0.1 μV/°C max
Gain error is 1% max where as gain drift is 20 ppm/°C max
Offset drift is 0.1 μV/°C max
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 V, 26 V |
| Minimum CMRR | 120dB |
| Number of Channels per Chip | 1 |
| Output Type | Bidirectional |
| Package Type | SC-70 |
| Pin Count | 6 |
