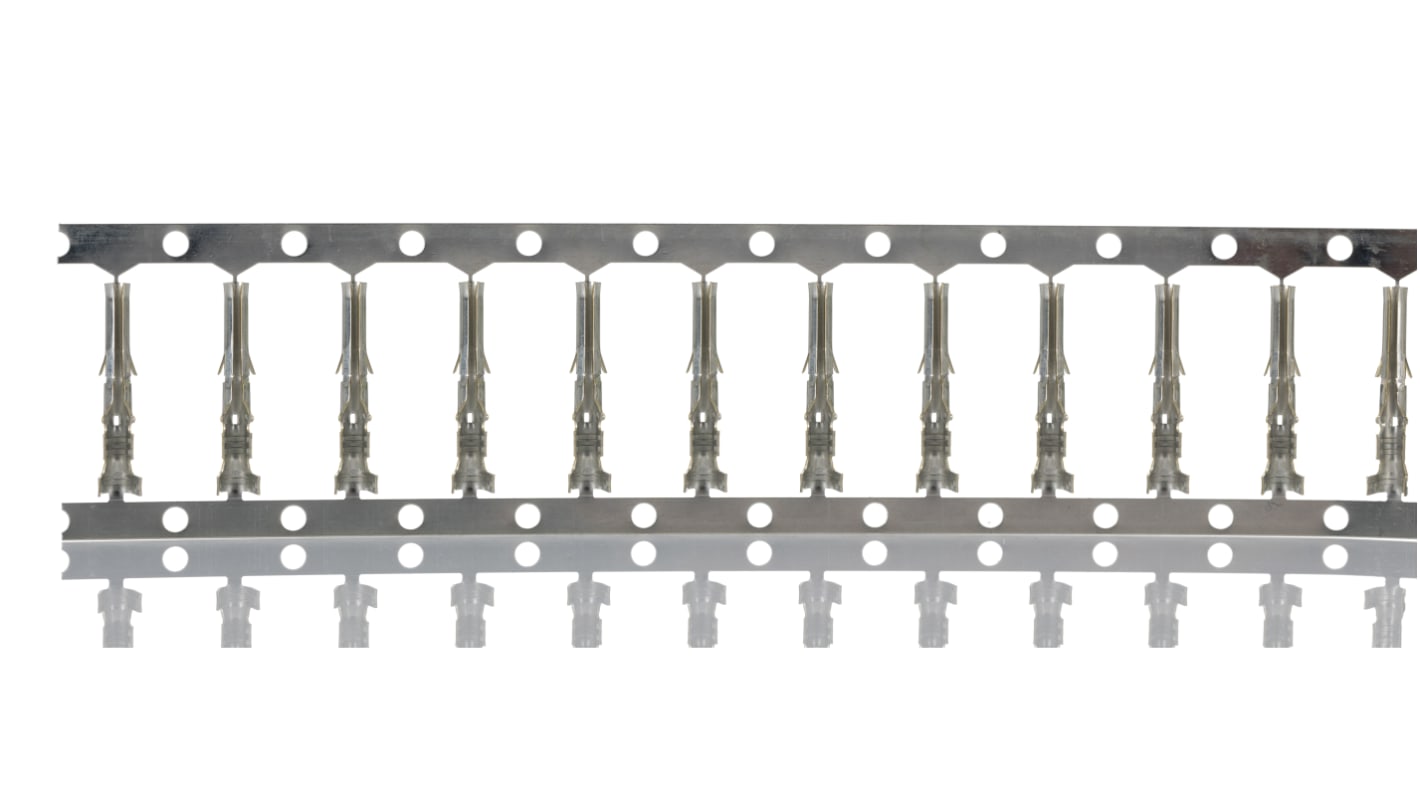

Molex STANDARD .062" Series Female Crimp Terminal, Crimp or Compression Termination, 24AWG Min, 18AWG Max

A range of 1.57mm Diameter Standard .062" Pin and Socket Crimp Terminal contacts available as gold-plated or tinned versions for use with receptacles housings stock number 236-2928 typically and for plug housings 236-2984 typically

• Shell Material: Nylon UL 94-V2
• Colour: Neutral (natural nylon)
• Current Rating: 5V
• Voltage: 250V
• 1 to 36 circuit housing
• Passive (friction) lock
• Round terminals may be oriented in any direction

• Consumer Electronics
• Communications
• Networking
• Portable Devices

See stock number 501-051 for Ratcheting Hand Crimp Tool.
See stock number 710-6499 for none ratchet type Hand Crimp Tool.
See stock number 178-6935 for Insertion Tool.
See stock number 178-6957 for Extraction Tool.

Don't settle for iffy signal relays in your conductors. Get this female crimp terminal from Molex to transmit reliable power and data to and from your PCB. In situations where extra protection is needed, you have the option to pair it with a Molex receptacle (236-2928). Using the crimp terminal is easy – simply push your wire into the casing and crimp it with pliers to achieve a firm hold.

• Highly conductive tin-plated brass contacts for reliable signal relays
• 24 to 18AWG wire size range for wide compatibility
• Enclosed tube style makes handling wires easier

• Mobile phones and tablets
• Gaming consoles
• Industrial control systems
• Aerospace applications
• Medical equipment

No special maintenance is necessary. All you need to do is check the condition of the terminal whenever you're conducting routine servicing of your electrical system.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.
