Hirose HNC Series Male Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max
- RS Stock No.:
- 184-6160
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HNC-2.5S-D-A(15)
- ผู้ผลิต:
- Hirose
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ถุง ถุงละ 100 ชิ้น)*
THB363.80
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB389.30
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย | ต่อถุง* |
|---|---|---|
| 100 - 100 | THB3.638 | THB363.80 |
| 200 - 300 | THB3.558 | THB355.80 |
| 400 + | THB3.481 | THB348.10 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 184-6160
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- HNC-2.5S-D-A(15)
- ผู้ผลิต:
- Hirose
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Hirose | |
| Product Type | Crimp Terminal | |
| Gender | Male | |
| For Use With | HNC Series Connector | |
| Series | HNC | |
| Current | 3A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size mm² | 0.3mm² | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Contact Resistance | 10mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Hirose | ||
Product Type Crimp Terminal | ||
Gender Male | ||
For Use With HNC Series Connector | ||
Series HNC | ||
Current 3A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 26AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size mm² 0.3mm² | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Contact Resistance 10mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||

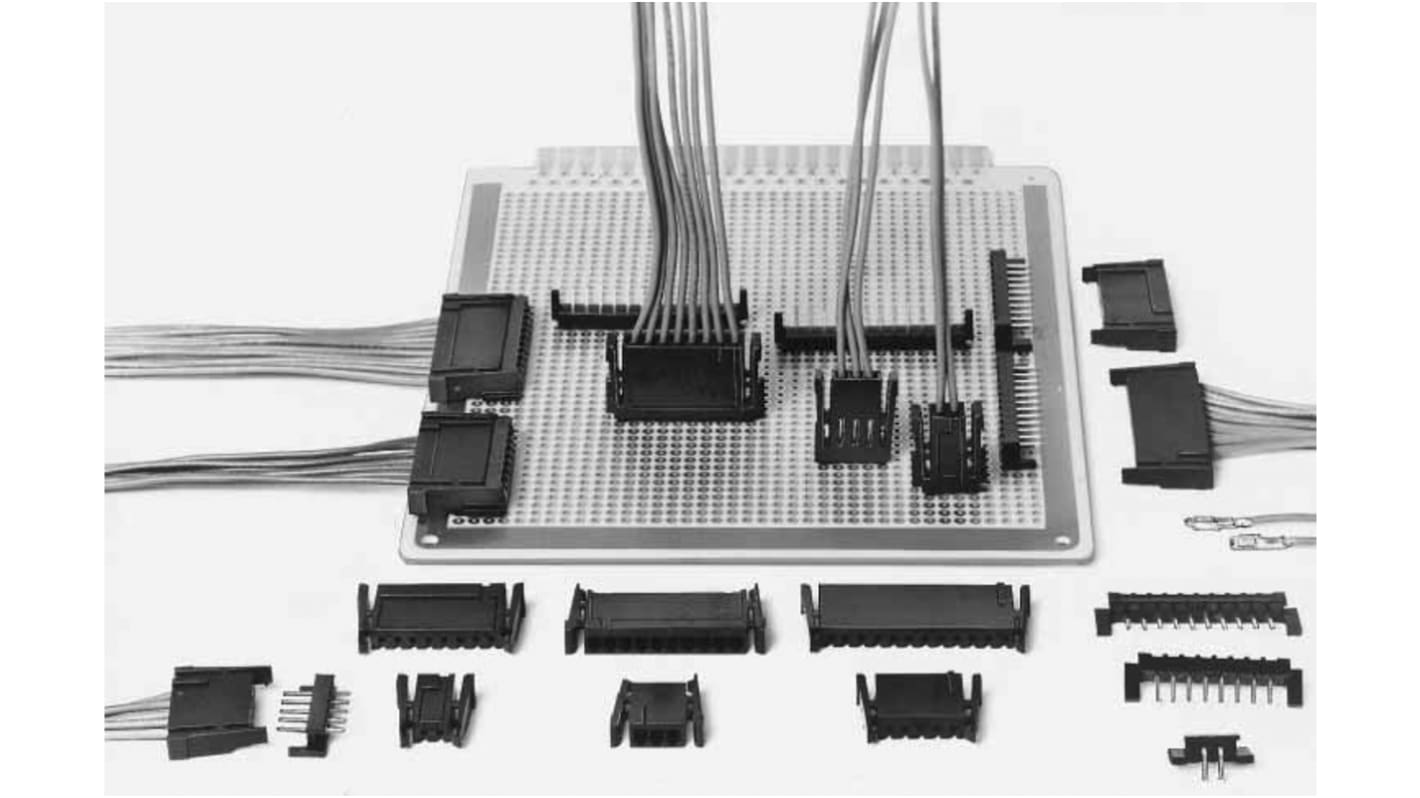

2.5mm Pitch Connector for Discrete Wire Connection
Full Lock Mechanism
Thin Type Connector Mounting height when the connector is used at the right angle : 4.8mm
Mechanism to Prevent Mis-insertion
Tin Plating and Gold Plating Variation
Full Lock Mechanism The connector is equipped with the full lock mechanism so as not be removed, unless locks are reset on both sides. This mechanism is activated effectively to prevent extraction by cable hooking or other causes.
Thin Type Connector Mounting height when the connector is used at the right angle : 4.8mm
Mechanism to Prevent Mis-insertion This thin type connector is equipped with the mechanism to prevent mis- insertion.
Tin Plating and Gold Plating Variation Two kinds of tin plating and gold plating types are available, and can be chosen according to application. The tin plating is also set to a light operating touch.
Applications
Various business equipment, financial terminals
