มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB651.18
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB696.76
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 44 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 24 | THB651.18 |
| 25 - 49 | THB632.95 |
| 50 + | THB520.92 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 810-0704
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Bore Size | 24 mm | |
| Size | 10 to 24 mm | |
| Product Type | Coupler | |
| Outside Diameter | 36 mm | |
| Maximum Speed | 3000rpm | |
| Torque Rating | 20Nm | |
| Misalignment - Angular | 2° | |
| Misalignment - Parallel | 1mm | |
| Material | Steel | |
| Series | FCGX24 | |
| Bore Type | Un-Bored | |
| Standards/Approvals | No | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Bore Size 24 mm | ||
Size 10 to 24 mm | ||
Product Type Coupler | ||
Outside Diameter 36 mm | ||
Maximum Speed 3000rpm | ||
Torque Rating 20Nm | ||
Misalignment - Angular 2° | ||
Misalignment - Parallel 1mm | ||
Material Steel | ||
Series FCGX24 | ||
Bore Type Un-Bored | ||
Standards/Approvals No | ||
สถานะRoHS: ได้รับการยกเว้น
- COO (Country of Origin):
- IT

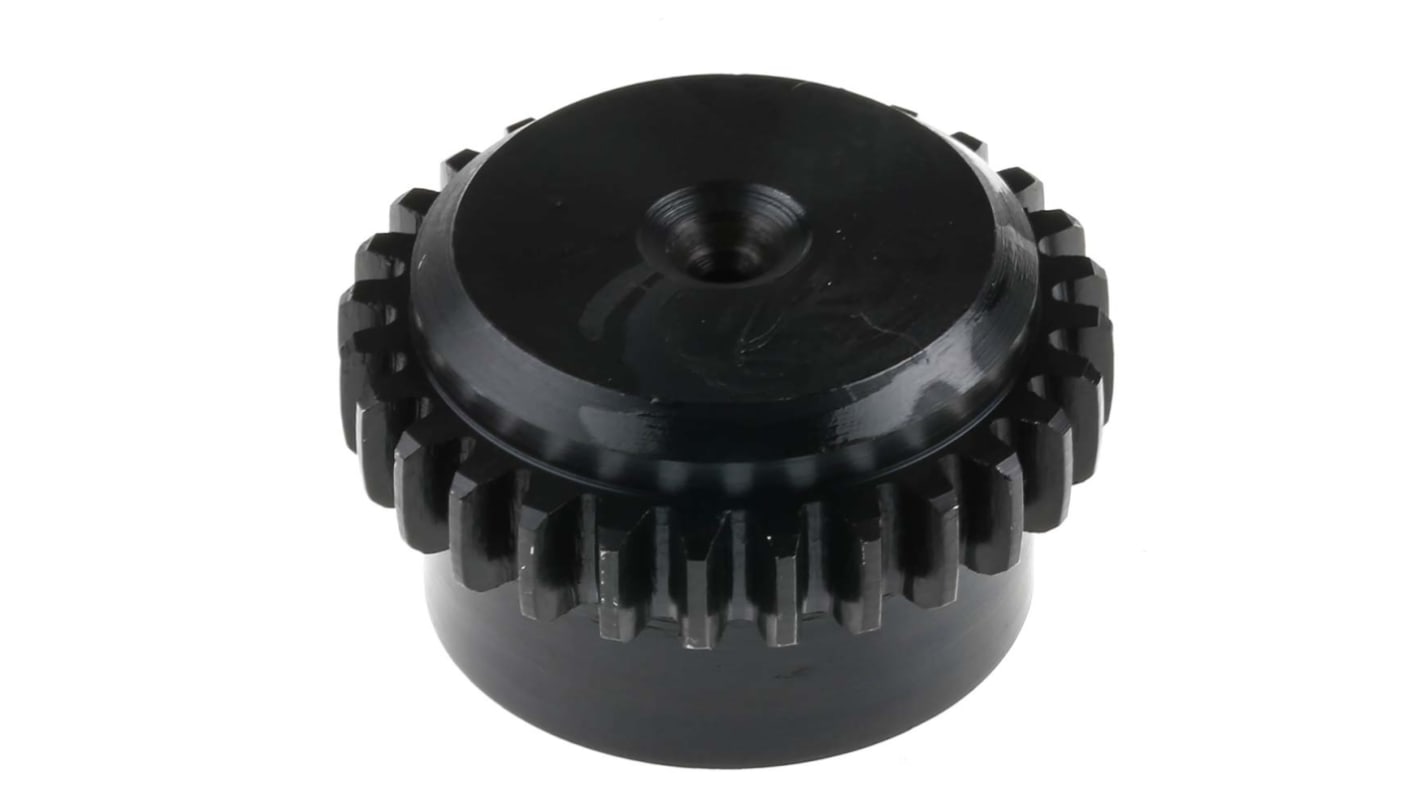

RS PRO 36 mm OD Coupler
This barrel gear coupler from RS PRO is designed to provide a maintenance-free way to absorb axial, angular and radial misalignment. This item consists of two fully-machined steel hubs. A coupler sleeve is available separately, which reduces the costs incurred if just one part needs to be replaced.
The two hubs are provided unbored, so you can finish them to your exact requirements. This also ensures that they're fast and easy to fit once you have bored them to the required size. The curved teeth on the coupling hubs let them transmit torque by meshing with the axially parallel involute gear teeth of the sleeve. This gear coupler remains effective up to a maximum speed of 10,500 rpm.
The coupler is designed to work without the need for any lubrication. Its typical uses include connecting your motor to a pump, gearbox or electric actuator.
Features and Benefits
• Barrel gear coupling hub
• Provided unbored for maximum flexibility
• Bore size range of 10 mm to 24 mm
• Outside diameter of 36 mm
• Maximum speed of 10,500 rpm
• Parallel misalignment tolerance of 1 mm
• Angular misalignment tolerance of 2°
• Torque rating of 20 Nm
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
