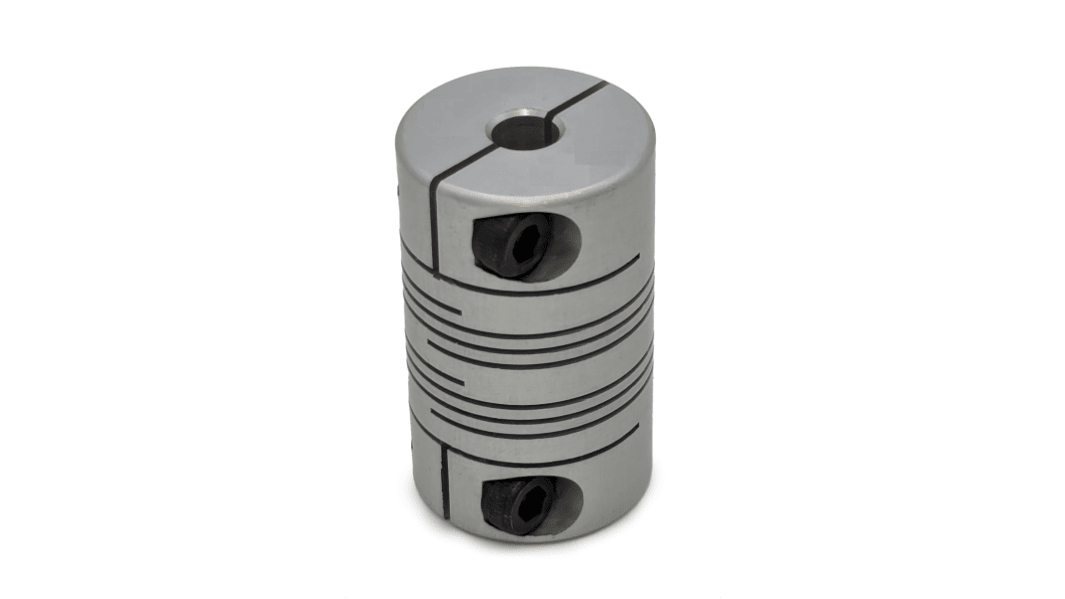

A BCC series six beam coupling for use where a degree of motion is required between shafts. Each coupling is manufactured as a single piece eliminating mechanical joints and possible failure points.
The clamp fastening beam coupling is constructed from Aluminium for strength and will delivery increased torque capacity with higher torsional stiffness. The BCC series coupling is designed with two sets of cuts around the centre accommodating a higher level of parallel misalignment compared to single beam couplings.
The BCC series coupling features a M4 socket head cap screw at each end for easy installation.
Features and Benefits
BCC six beam coupling
8mm bore
25.4mm outer diameter
38.1mm length
28.37mm maximum clearance diameter
Clamp fastening
One piece Aluminium 7075 A
M4 socket screws
+0.025 mm / -0.000 mm bore tolerance
+0.000 mm / -0.013 mm recommended shaft tolerance
