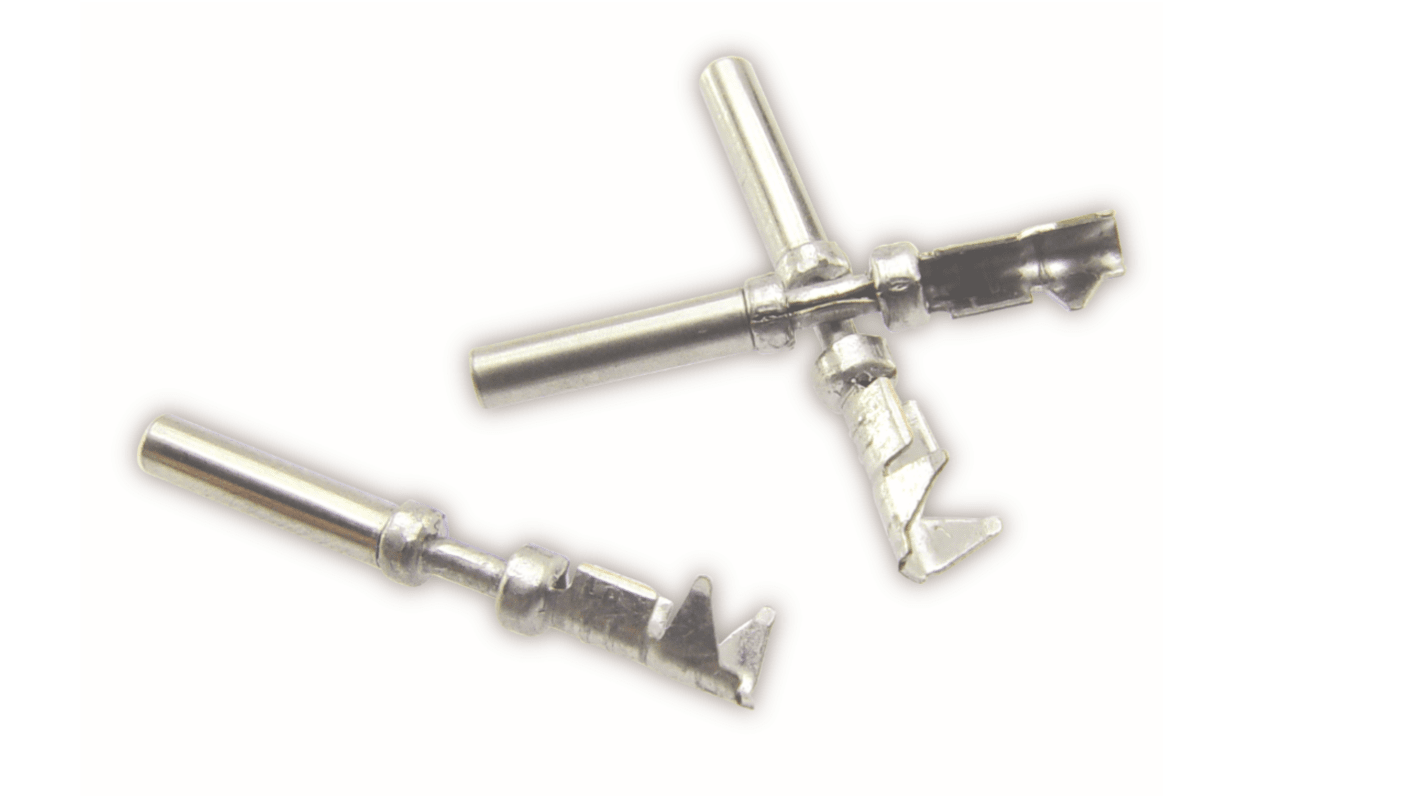

ITT Cannon Female Crimp Crimp Contact, Contact Size 1.65 mm, Wire Size 20AWG, 22 AWG
- RS Stock No.:
- 287-136
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 031-8639-120
- ผู้ผลิต:
- ITT Cannon
รับส่วนลดสำหรับการซื้อจำนวนมาก
เพิ่มอีก 10 ชิ้นเพื่อประหยัดได้ THB19.80
ดูตัวเลือกการกำหนดราคาในการซื้อปริมาณมากยอดรวมย่อย (1 ชิ้น)*
THB65.99
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB70.61
(รวมภาษีมูลค่าเพิ่ม)
ไม่สามารถเข้าถึงข้อมูลสต็อกได้ในขณะนี้ - โปรดกลับมาตรวจสอบอีกครั้งภายหลัง
ชิ้น | ต่อหน่วย | การประหยัด |
|---|---|---|
| 1 - 9 | THB65.99 | - |
| 10 - 24 | THB64.01 | THB19.80 |
| 25 + | THB61.45 | THB113.50 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 287-136
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 031-8639-120
- ผู้ผลิต:
- ITT Cannon
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | ITT Cannon | |
| Product Type | Crimp Contact | |
| Gender | Female | |
| Contact Size | 1.65 mm | |
| Wire Size | 20AWG, 22AWG | |
| Current | 22A | |
| Series | VG95234 | |
| For Use With | CA Bayonet / VG95234 Connectors | |
| Contact Type | Socket | |
| Length | 37.8mm | |
| Contact Plating | Silver | |
| Voltage | 4500Vrms | |
| Contact Material | Copper Alloy | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | VG95234 standard, RoHS | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand ITT Cannon | ||
Product Type Crimp Contact | ||
Gender Female | ||
Contact Size 1.65 mm | ||
Wire Size 20AWG, 22AWG | ||
Current 22A | ||
Series VG95234 | ||
For Use With CA Bayonet / VG95234 Connectors | ||
Contact Type Socket | ||
Length 37.8mm | ||
Contact Plating Silver | ||
Voltage 4500Vrms | ||
Contact Material Copper Alloy | ||
Termination Type Crimp | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals VG95234 standard, RoHS | ||
- COO (Country of Origin):
- DE
The ITT Cannon Socket Contact is designed according to the VG95234 specification, offering a reliable and versatile connector solution. An improvement over the MIL-C-5015 series, the CA Bayonet features a proven reverse bayonet coupling design that provides excellent vibration protection with a simple 120° turn.
Rugged aluminium shell for severe conditions
Bayonet coupling with rigid stainless steel roller bolts for fast and reliable mating
Audible sound and colour marked snap in position ensure additional coupling security
