Polamco, 91Size 10 Straight Circular Connector Backshell, For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603
- RS Stock No.:
- 241-1301
- Mfr. Part No.:
- 91D1-10-05-1-ZB
- Brand:
- Polamco
Bulk discount available
Subtotal (1 unit)*
THB5,776.39
(exc. VAT)
THB6,180.74
(inc. VAT)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- เพิ่มอีก 45 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 50 ชิ้นจะส่งได้หลังจากวันที่ 03 สิงหาคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
Units | Per unit |
|---|---|
| 1 - 4 | THB5,776.39 |
| 5 - 24 | THB5,603.12 |
| 25 - 49 | THB5,429.74 |
| 50 - 99 | THB5,314.23 |
| 100 + | THB5,198.68 |
*price indicative
- RS Stock No.:
- 241-1301
- Mfr. Part No.:
- 91D1-10-05-1-ZB
- Brand:
- Polamco
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Polamco | |
| For Use With | MIL-DTL-26482 Series I, PATT 105, PATT 603 | |
| Shell Size | 10 | |
| Body Orientation | Straight | |
| Housing Material | Aluminium Alloy | |
| Spring Clip Size | 1 | |
| Thread Size | UNEF 9/16-24 | |
| Length | 34mm | |
| Series | 91 | |
| Select all | ||
|---|---|---|
Brand Polamco | ||
For Use With MIL-DTL-26482 Series I, PATT 105, PATT 603 | ||
Shell Size 10 | ||
Body Orientation Straight | ||
Housing Material Aluminium Alloy | ||
Spring Clip Size 1 | ||
Thread Size UNEF 9/16-24 | ||
Length 34mm | ||
Series 91 | ||
Non Compliant
- COO (Country of Origin):
- GB

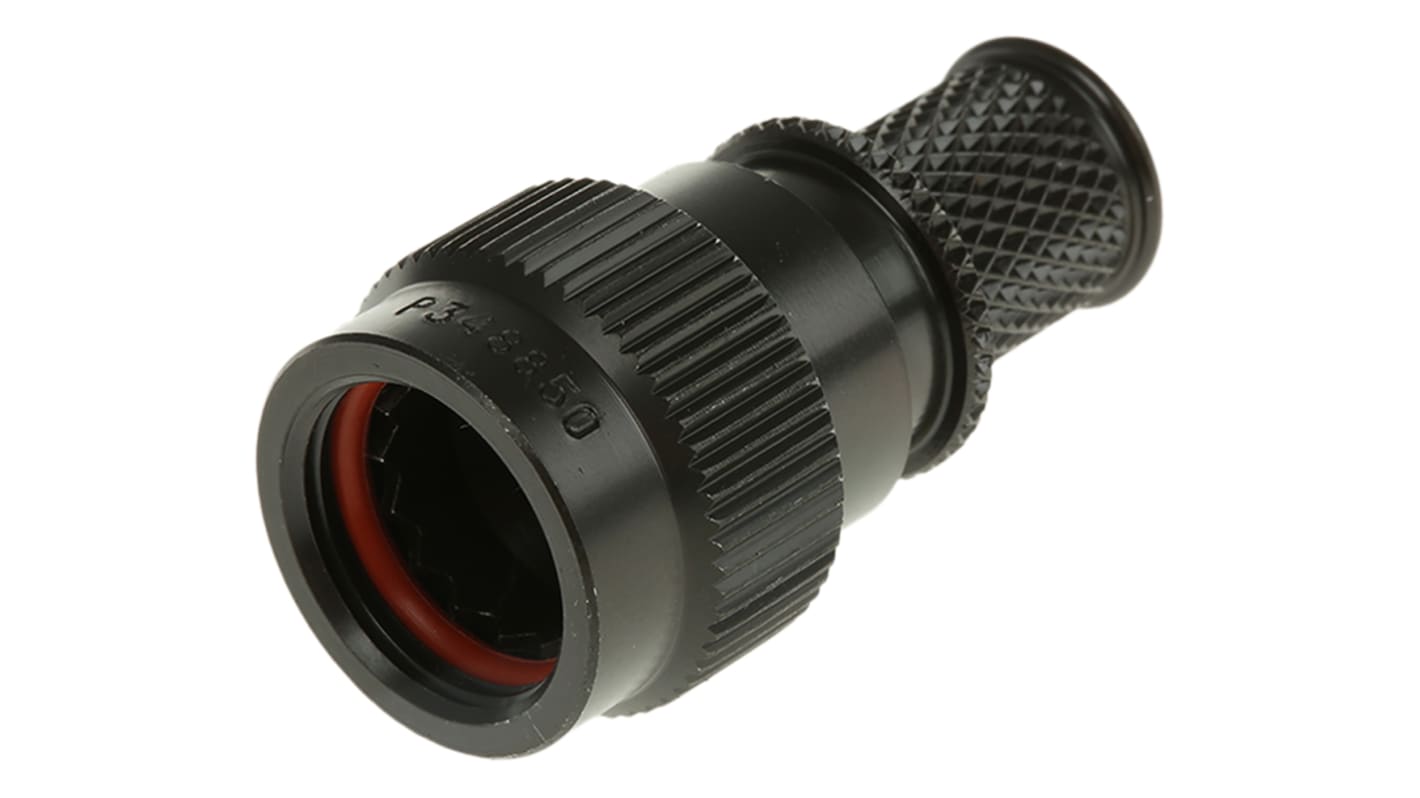

Polamco Coupling Backshell
The Polamco 91 series spin coupling backshell of size 10 is used in conjunction with heat-shrink boots or spring clips to terminate braided cable jacket. The threaded coupling end rotates separately from the body so that cable is not twisted upon removal of backshell from the connector body. The mating interface of this backshell features anti-rotation teeth and a sealing 'O' ring. The length of this backshell is 34mm.
Note:
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors, Series 2 fits the commercial threaded (MIL-C-5015) connectors, Series 3 fits the industrial bayonet (MIL-C-5015) connectors, Series 4 fits professionally threaded (MILD38999) connectors.
Note:
Series 1 fits all 62GB, AB05 and MIL-C-26482(US) solder connectors, Series 2 fits the commercial threaded (MIL-C-5015) connectors, Series 3 fits the industrial bayonet (MIL-C-5015) connectors, Series 4 fits professionally threaded (MILD38999) connectors.
Features and Benefits
Aluminium alloy housing with an olive drab zinc cobalt finish
Cable size ranges between 7.92mm and 15.5mm
Straight body orientation
Cable size ranges between 7.92mm and 15.5mm
Straight body orientation
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
