Microchip AC102015, Chip Programming Adapter Debugger Adapter Board for Atmel-ICE, MPLAB ICD 4 and MPLAB PICkit 4

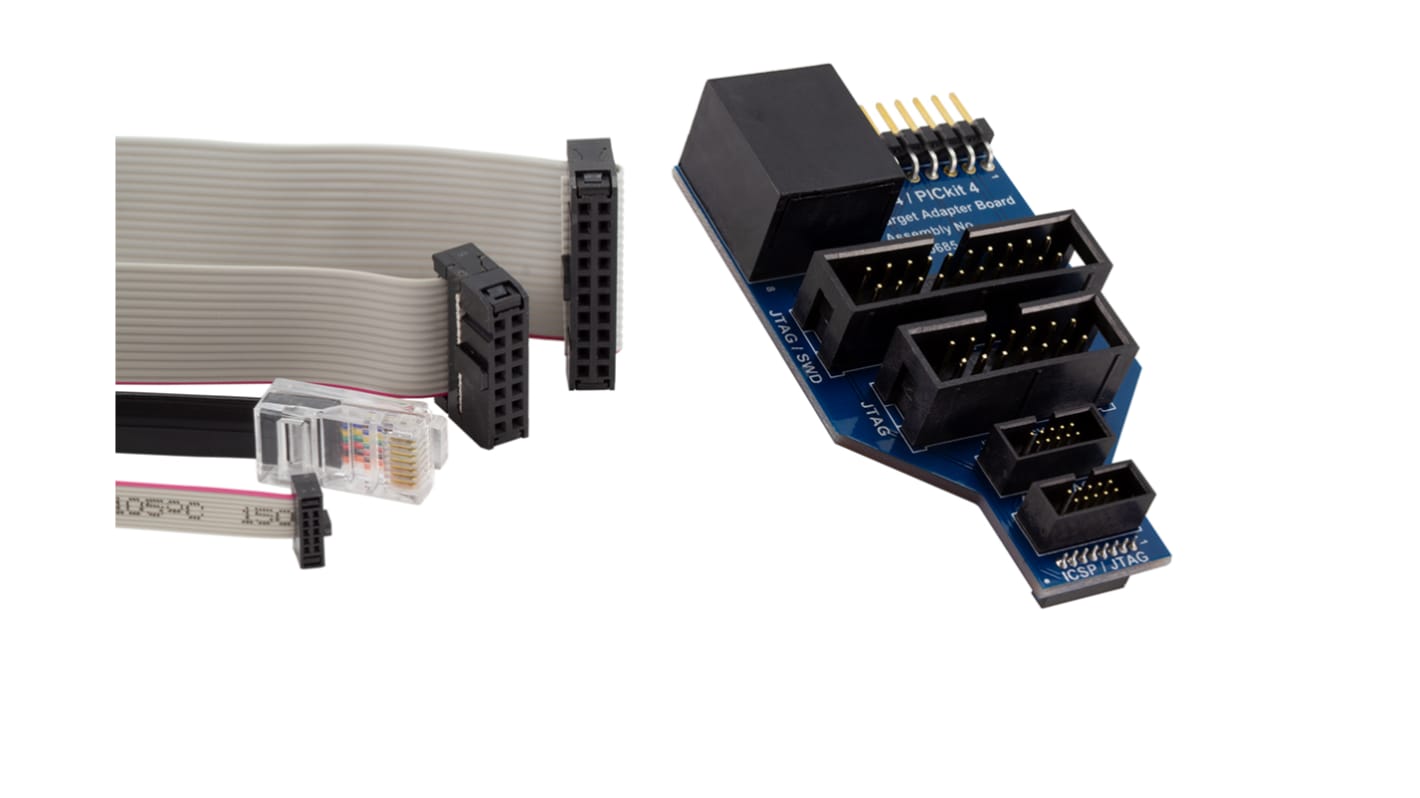

The Microchip Technology Chip programming adapter is a connectivity board. It supports JTAG, SWD and ICSP protocols in multiple connector formats. It is useful for debugging legacy AVR Xplained demonstration boards with MPLAB PICkit 4 debuggers.

• 1 x 8 -100 mil ICSP (compatible with MPLAB PICkit 4 ICSP)
• 2 x 10 -100 mil DIP (compatible with SEGGER J-link JTAG SWD)
• 2 x 5 -50 mil (compatible with Atmel-ICE and Power Debugger AVR JTAG)
• 2 x 5 -50 mil (compatible with Atmel-ICE and Power Debugger JTAG SWD)
• 2 x 7 -100 mil DIP (compatible with SEGGER J-link EJTAG)
• MPLAB ICD 4/MPLAB PICkit 4 connectivity to small ICSP connector (1 x 6 or 1 x 8 -50 mil SIP ICSP/JTAG)
• RJ11/45 (compatible with MPLAB ICD 4 ICSP/JTAG)

• Atmel-ICE debugging
• Legacy AVR debugging
• Seeger J-Link style connectors
