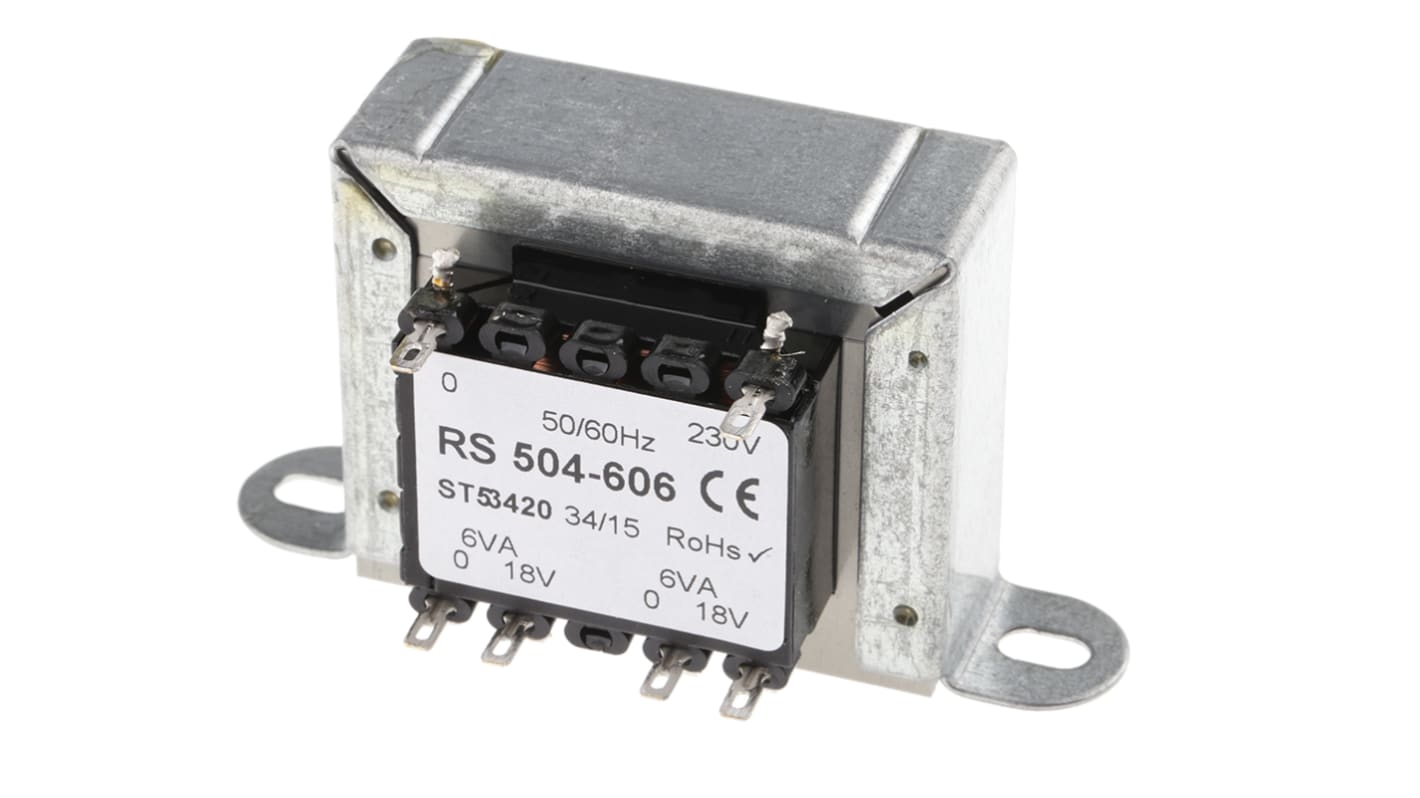

RS PRO 12VA 2 Output Chassis Mounting Transformer, 18V ac, IEC 61558-2-6
- RS Stock No.:
- 504-606
- ผู้ผลิต:
- RS PRO
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB1,168.32
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,250.10
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 40 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 9 | THB1,168.32 |
| 10 - 24 | THB1,143.82 |
| 25 - 49 | THB1,108.75 |
| 50 - 99 | THB1,081.88 |
| 100 + | THB890.39 |
*price indicative
- RS Stock No.:
- 504-606
- ผู้ผลิต:
- RS PRO
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage Rating | 230V ac | |
| Secondary Voltage Rating | 18V ac | |
| Power Rating | 12VA | |
| Number of Outputs | 2 | |
| Mounting Type | Clamp Mount | |
| Primary Winding Resistance | 200Ω | |
| Length | 59mm | |
| Efficiency | 87% | |
| Width | 50mm | |
| Depth | 50mm | |
| Dimensions | 59 x 50 x 50mm | |
| Fixing Hole Diameter | 4.7 x 8.7mm | |
| Weight | 400g | |
| Minimum Operating Frequency | 50Hz | |
| Standards Met | IEC 61558-2-6 | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Temperature | (Ambient) 70°C | |
| Minimum Temperature | -30°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage Rating 230V ac | ||
Secondary Voltage Rating 18V ac | ||
Power Rating 12VA | ||
Number of Outputs 2 | ||
Mounting Type Clamp Mount | ||
Primary Winding Resistance 200Ω | ||
Length 59mm | ||
Efficiency 87% | ||
Width 50mm | ||
Depth 50mm | ||
Dimensions 59 x 50 x 50mm | ||
Fixing Hole Diameter 4.7 x 8.7mm | ||
Weight 400g | ||
Minimum Operating Frequency 50Hz | ||
Standards Met IEC 61558-2-6 | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature (Ambient) 70°C | ||
Minimum Temperature -30°C | ||
- COO (Country of Origin):
- PL
Chassis Mount, Clamp Construction, 230Vac, 6V to 50V
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742
Chassis Mount, Clamp Construction, 230Vac, 6VA to 50VA
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds (example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds (example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Standards
BS3535; EN 60 742
