RS PRO 1 Output 1000 VA Chassis Mount Transformer, 230 V ac, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, RoHS, AS/NZS

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB4,725.19

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB5,055.95

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
คำสั่งซื้อมูลค่าต่ำกว่า THB2,500.00 (ไม่รวมภาษีมูลค่าเพิ่ม) ค่าจัดส่งเพียง THB250.00
มีในสต็อก
  • 102 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 - 24THB4,725.19
25 - 124THB4,607.06
125 +THB4,491.89

*ตัวบ่งบอกราคา / price indicative

Every Spend Counts with RS PRO
RS Stock No.:
504-307
ผู้ผลิต:
RS PRO
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

RS PRO

Primary Voltage

415 V ac

Product Type

Chassis Mount Transformer

Secondary Voltage

230 V ac

Number of Outputs

1

Power

1000VA

Fixing Hole Diameter

7mm

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

130°C

Width

175 mm

Minimum Operating Frequency

50Hz

Length

150mm

Weight

14.6kg

Depth

155mm

Maximum Operating Frequency

60Hz

Standards/Approvals

IEC/BS/EN 61558-2-6, AS/NZS 61558.1, RoHS, AS/NZS 61558.2.6, IEC/BS/EN 61558-1, CE

COO (Country of Origin):
PL

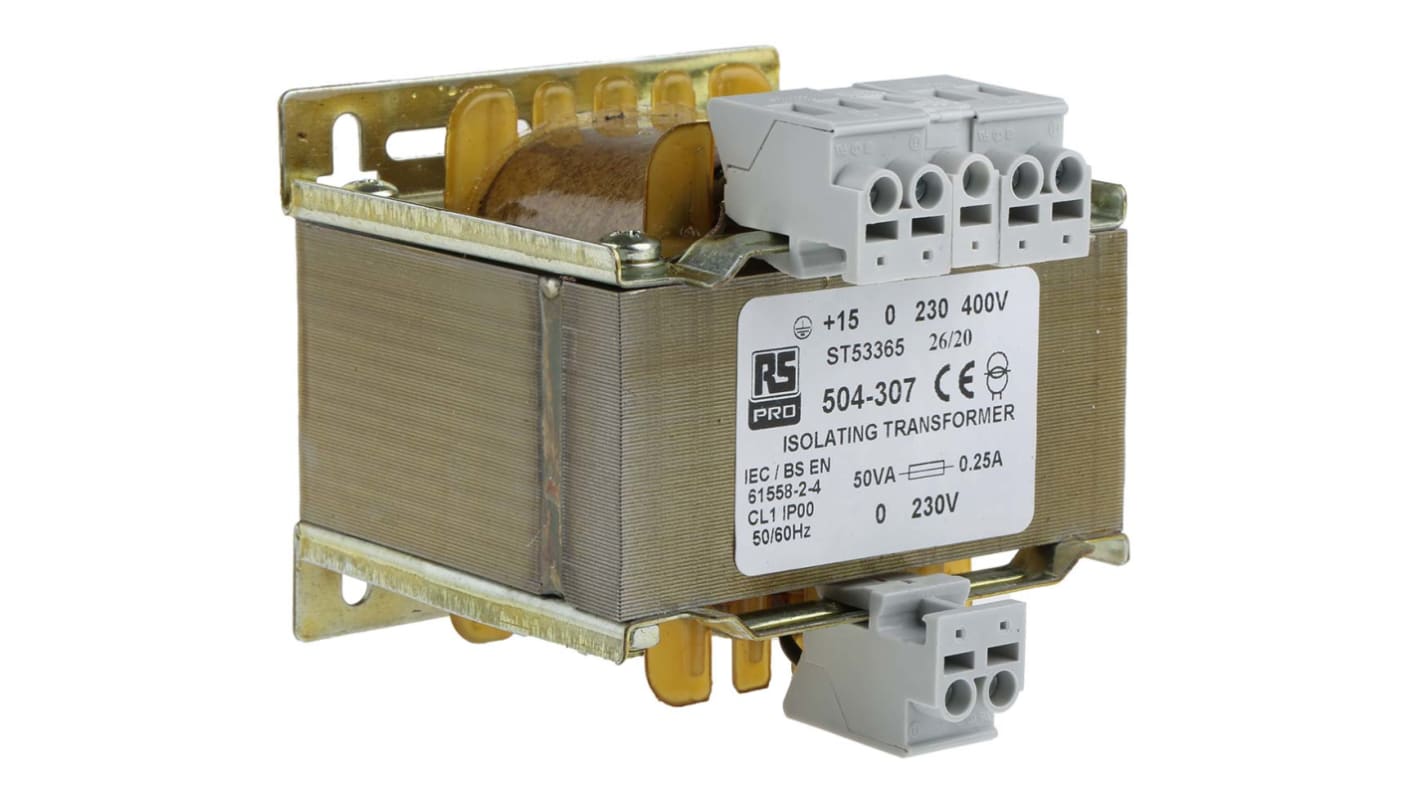

RS PRO Panel Isolation Transformer, Primary voltage 230, 245, 400, 415 V ac, Secondary voltage 230 V ac


It has been over 100 years since the introduction of the first commercial Transformer when the mass production began. Since then, many additional modifications we developed to support various applications, such as electromagnetic, relays, pumps or heating elements.

.

The functionality of the Isolation Transformer has a concept to provide galvanic isolation between the AC power lines (mains) and the connected device, meaning no a DC can cross between the windings.

Today, we are proudly introducing our own branded RS PRO Isolation Transformer with a screw connector for multiple input and brackets for screw fixation. The exceptional isolating property and safety of our Transformer provide step up or step down of line (mains) voltages while reducing the noise coming from the primary to secondary or opposite.

The Isolation Transformers supports different types of equipment, from testing power-related devices to medical isolation equipment. However, they must meet rigorous electrical requirements to make sure no leakage current is in place.

Features and Benefits


  • 100% electrical and flash tested following BS EN 61558-1 regulations

  • Our Transformer provides high-quality safety and isolating properties for use in control circuits and general applications

  • Exceptional low loss noise laminations characterising our Isolation Transformer

  • Thanks to the dual standard primary winding 230/400 V ac with +15 V tap creates input flexibility to your equipment

  • The Transformer has an earth terminal provided whereas the dual secondaries are centre tapped

  • The Isolation Transformer has reliable protection against humidity and rusting thanks to varnish impregnation

  • The Transformer is fully shrouded cage clamp terminal with the voltage markings

  • All the crucial technical information is available on the permanent label attached

  • The Isolation Transformer provides high efficiency with a low regulation design

    • Applications


    The Transformer with isolating properties has an association with the following applications:

  • Medical industry

  • Testing power devices

  • where transfer power between two circuits is mandatory

    • Why RS PRO?


    RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

    Laminated
