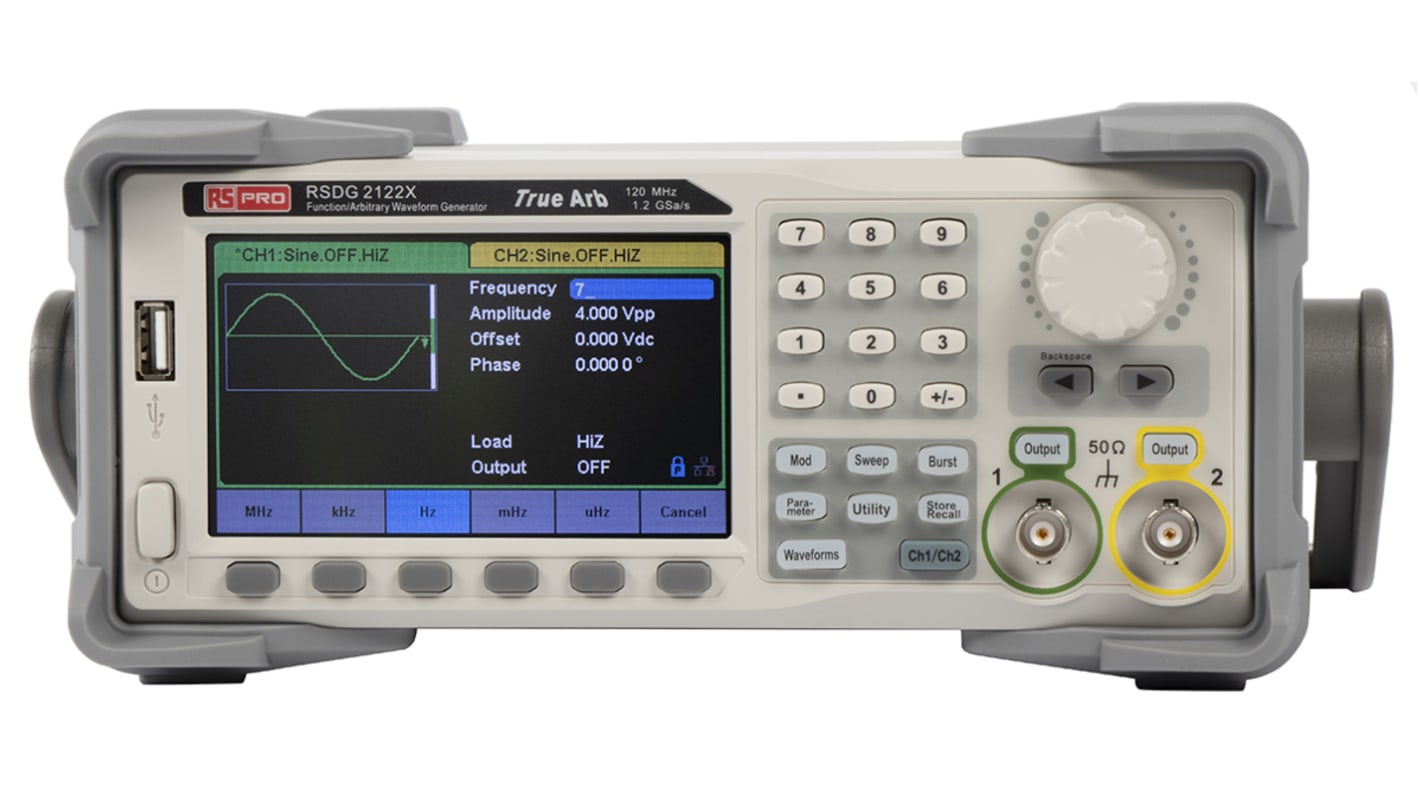

RS PRO Arbitrary Waveform Generator, 120MHz Max, 1 μHz Min
- RS Stock No.:
- 123-6462
- ผู้ผลิต:
- RS PRO
ยอดรวมย่อย (1 ชิ้น)*
THB59,192.20
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB63,335.65
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 13 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
- เพิ่มอีก 10 ชิ้นจะส่งได้หลังจากวันที่ 19 มกราคม 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB59,192.20 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 123-6462
- ผู้ผลิต:
- RS PRO
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | RS PRO | |
| Maximum Frequency | 120MHz | |
| Minimum Frequency | 1 μHz | |
| Maximum Frequency Triangle Ramps | 1MHz | |
| Minimum Frequency Triangle Ramps | 1µHz | |
| Resolution | 1 μHz | |
| Minimum Pulse Width | 100ns | |
| Arbitrary Waveforms | Yes | |
| Inputs | Trigger | |
| Data Entry | Keyboard | |
| Length | 260.3mm | |
| Interface Type | LAN, USB Device, USB Host | |
| Width | 295.7mm | |
| Connector Type | BNC | |
| Weight | 3.4kg | |
| Minimum Operating Temperature | 0°C | |
| Height | 107.2mm | |
| Rise - Fall Time | 22.4s | |
| Sweep | Linear, Logarithmic | |
| Maximum Output Amplitude | 20V Pk-Pk | |
| Dimensions | 260.3 x 295.7 x 107.2mm | |
| Display Type | LCD | |
| Maximum Operating Temperature | +40°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand RS PRO | ||
Maximum Frequency 120MHz | ||
Minimum Frequency 1 μHz | ||
Maximum Frequency Triangle Ramps 1MHz | ||
Minimum Frequency Triangle Ramps 1µHz | ||
Resolution 1 μHz | ||
Minimum Pulse Width 100ns | ||
Arbitrary Waveforms Yes | ||
Inputs Trigger | ||
Data Entry Keyboard | ||
Length 260.3mm | ||
Interface Type LAN, USB Device, USB Host | ||
Width 295.7mm | ||
Connector Type BNC | ||
Weight 3.4kg | ||
Minimum Operating Temperature 0°C | ||
Height 107.2mm | ||
Rise - Fall Time 22.4s | ||
Sweep Linear, Logarithmic | ||
Maximum Output Amplitude 20V Pk-Pk | ||
Dimensions 260.3 x 295.7 x 107.2mm | ||
Display Type LCD | ||
Maximum Operating Temperature +40°C | ||
- COO (Country of Origin):
- CN
RS Pro RSDG2000X Series Function/Arbitrary Waveform Generators
RS Pro RSDG2000X Series function/arbitrary waveform generators represent great value while also offering innovative features. The proprietary TrueArb & EasyPulse techniques help resolve weaknesses of traditional DDS generators when generating arbitrary, square and pulse waveforms. Using these techniques RSDG2000X can provide users with a variety of high fidelity, low jitter signals to meet the ever-growing demand for more complex and extensive applications.
Features and Benefits
Dual-channel function/arbitrary waveform generator
40 MHz, 80 MHz or 120 MHz bandwidth (depending on choice of model)
20 Vpp maximum output amplitude
High fidelity output with 80 dB dynamic range
High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution (no detail in waveforms will be lost)
Innovative TrueArb technology, based on point-by-point architecture, supports any 8 pts ∼ 8 Mpts Arb waveform with sampling rate in range 1 μSa/s ∼ 75 MSa/s
Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings wide range and high precision in pulse width and rise/fall times adjustment
Analog and digital modulation types AM, DSB-AM, FM, PM, PSK, FSK, ASK, PWM
Sweep and Burst function, Harmonics mode supported
196 built-in arbitrary waveforms
High precision Frequency Counter
Standard interfaces USB Device, USB Host, LAN (VXI-11)
4.3 inch touch screen display for easier operation
Dimensions 260.3 x 107.2 x 295.7 mm
Weight 4.42 kg
40 MHz, 80 MHz or 120 MHz bandwidth (depending on choice of model)
20 Vpp maximum output amplitude
High fidelity output with 80 dB dynamic range
High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution (no detail in waveforms will be lost)
Innovative TrueArb technology, based on point-by-point architecture, supports any 8 pts ∼ 8 Mpts Arb waveform with sampling rate in range 1 μSa/s ∼ 75 MSa/s
Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings wide range and high precision in pulse width and rise/fall times adjustment
Analog and digital modulation types AM, DSB-AM, FM, PM, PSK, FSK, ASK, PWM
Sweep and Burst function, Harmonics mode supported
196 built-in arbitrary waveforms
High precision Frequency Counter
Standard interfaces USB Device, USB Host, LAN (VXI-11)
4.3 inch touch screen display for easier operation
Dimensions 260.3 x 107.2 x 295.7 mm
Weight 4.42 kg
Supplied with
Quick start guide, product certification, power cord, calibration certificate, BNC coaxial cable, CD (including datasheet and application software package)
