Maxim Integrated MAX7408 Low Pass Filter Active Filter 5th
- RS Stock No.:
- 191-5027P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX7408EUA+
- ผู้ผลิต:
- Maxim Integrated

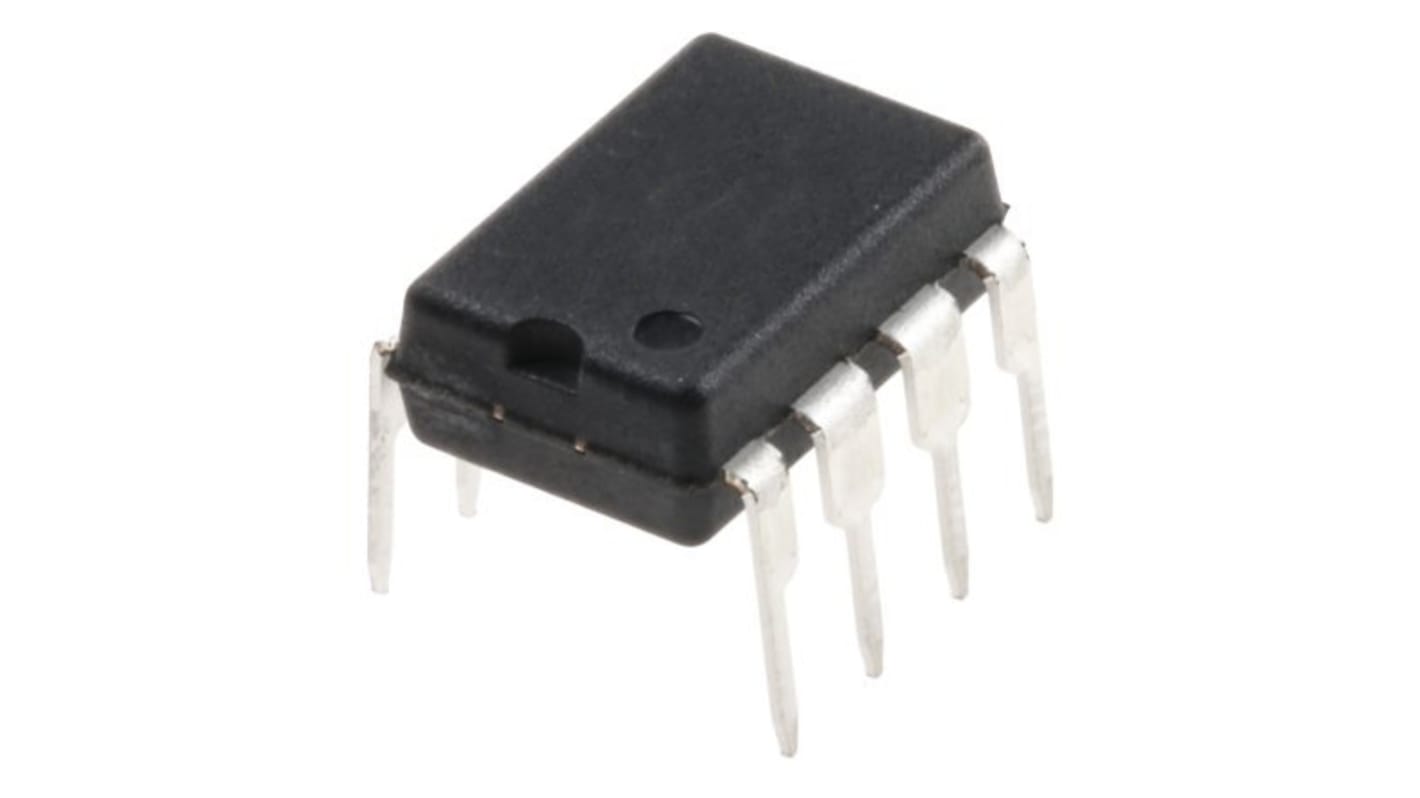

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย 5 ชิ้น (จัดส่งในหลอด)*
THB1,581.77
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB1,692.495
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
สต็อกสุดท้ายของ RS
- 265 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย |
|---|---|
| 5 + | THB316.354 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 191-5027P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- MAX7408EUA+
- ผู้ผลิต:
- Maxim Integrated
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Maxim Integrated | |
| Filter Type | Low Pass Filter | |
| Product Type | Active Filter | |
| Architecture | Switched Capacitor | |
| Cut-off Frequency | 15kHz | |
| Minimum Supply Voltage | 5V | |
| Number of Circuits | 1 | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 5V | |
| Filter Order | 5th | |
| Package Type | DIP | |
| Pin Count | 8 | |
| Length | 3.1mm | |
| Height | 0.95mm | |
| Width | 3.1 mm | |
| Standards/Approvals | No | |
| Series | MAX7408 | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Maxim Integrated | ||
Filter Type Low Pass Filter | ||
Product Type Active Filter | ||
Architecture Switched Capacitor | ||
Cut-off Frequency 15kHz | ||
Minimum Supply Voltage 5V | ||
Number of Circuits 1 | ||
Mount Type Surface | ||
Maximum Supply Voltage 5V | ||
Filter Order 5th | ||
Package Type DIP | ||
Pin Count 8 | ||
Length 3.1mm | ||
Height 0.95mm | ||
Width 3.1 mm | ||
Standards/Approvals No | ||
Series MAX7408 | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
The MAX7408/MAX7411/MAX7412/MAX7415 5th-order, lowpass, elliptic, switched-capacitor filters (SCFs) operate from a single +5V (MAX7408/MAX7411) or +3V (MAX7412/MAX7415) supply. The devices draw only 1.2mA of supply current and allow corner frequencies from 1Hz to 15kHz, making them ideal for low-power post-DAC filtering and anti-aliasing applications. They can be put into a low-power mode, reducing supply current to 0.2μA.
Two clocking options are available: self-clocking (through the use of an external capacitor) or external clocking for tighter cutoff-frequency control. An offset-adjust pin allows for adjustment of the DC output level.
The MAX7408/MAX7412 deliver 53dB of stopband rejection and a sharp rolloff with a transition ratio of 1.6. The MAX7411/MAX7415 achieve a sharper rolloff with a transition ratio of 1.25 while still providing 37dB of stop-band rejection. Their fixed response limits the design task to selecting a clock frequency.
5th-Order, Elliptic Lowpass Filters
Low Noise and Distortion: -80dB THD + Noise
Clock-Tunable Corner Frequency (1Hz to 15kHz)
Single-Supply Operation
+5V (MAX7408/MAX7411)
+3V (MAX7412/MAX7415)
Low Power
1.2mA (operating mode)
0.2μA (shutdown mode)
Available in 8-Pin μMAX®/DIP Packages
Low Output Offset: ±4mV
Applications
ADC Anti-Aliasing
CT2 Base Stations
Post-DAC Filtering
Speech Processing
