IC Sockets

Electrical devices contain integrated circuits (ICs) which are installed onto a printed circuit board (PCB). IC sockets are connectors which allow ICs to be fitted and removed easily. The socket is mounted onto the board and houses the chip. Unlike soldering, which is permanent, IC sockets are important as they enable you to remove or interchange the components without damaging them. This also protects the IC from potential heat damage caused by soldering.


Programmable chips and microcontrollers are a great example where IC sockets are used. They allow for easy removal for testing, programming or replacement. This enables you to choose and test the right chip for the application, replace any failures in the circuit or upgrade a device when required.


Types of IC Socket


  • DIL Sockets (Dual-in-line) have two parallel rows of pins, available in various numbers to match the relevant IC and are normally very cost-effective. A larger socket can be created by placing two smaller ones together, end-to-end, e.g. two 8 pins become 16-pin.

  • SIL Sockets (Single in-line) has a single line of pins and is frequently used in smaller applications like resistor arrays or boards with short lead pins, such as a desktop computer. There are many different sizes and types available.

  • DIMM Sockets (Dual In-line Memory Module). Random Access Memory (RAM) can be easily installed in computers or laptops using DIMM sockets. These are important components that help to ensure reliable connectivity. They have two separate rows of electrical contacts or pins on either side. It's a general rule that the more pins the higher the RAM it supports. There are various pin sizes available.

  • SIMM Sockets (Single In-line Memory Module). These have a single row of pins which connect memory modules to circuit boards. They are space-saving and can be installed at predetermined angles with positive polarisation to prevent memory modules from being inserted incorrectly. They are used mainly in older computers dating from the 1980s to late 1990s. Available in various sizes and number of pins.

SMD and Through Hole Mount


IC sockets are mounted onto PCBs by surface mount (SMD) or though hole mounting. This refers to the pins on the socket and how they attach to the board. SMD sockets are attached to the surface of the PCB, while through hole sockets are pushed through holes in the PCB.


What are package types?


IC sockets are designed for a specific package type. This refers to the package of the IC, which in an industry standard size, and its pins. Examples of package type include:


  • BGA

  • DIP

  • LGA

  • QFP

  • SOIC

...
อ่านเพิ่มเติม อ่านน้อยกว่า

คัดกรอง / Filters

กำลังดูสินค้า 1 - 20 รายการจาก 161 รายการ / Viewing 1 - 20 of 161 products
ผลการค้นหาต่อหน้า / Results Per Page
รายละเอียดสินค้า / Description ราคา / Price IC Socket Type Package Type Gender Number of Contacts Number of Rows Pitch Body Orientation Contact Material Contact Plating Current Rating Socket Mounting Type Device Mounting Type Voltage Rating Termination Method
RS Stock No. 183-1582
Brand :RS PRO
THB14.312
Each (In a Tube of 19)
Units
PLCC Socket SMD Female 64 - - - Phosphor Bronze Tin over Nickel 1.0A - - 100.0 V Solder
RS Stock No. 372-3318
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.IC234-1444-016N
Brand :Yamaichi
THB9,128.95
Each
Units
Test Socket QFP Female 144 - 0.5mm Straight Beryllium Copper Gold over Nickel - Through Hole - - Solder
RS Stock No. 701-9427
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.540-88-032-17-400
Brand :Preci-Dip
THB26.866
Each: (In a Pack of 5)
Units
PLCC Socket SMD Female 32 - 1.27mm Straight Phosphor Bronze Tin 1.0A - - 100 V ac, 150 V dc Solder

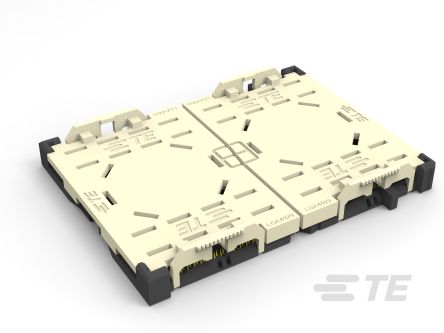

RS Stock No. 718-5252
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.1939738-1
THB242.63
Each
Units
- - - - - - - - - - - - - -
RS Stock No. 674-2567
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.A-CCS 028-Z-SM
Brand :ASSMANN WSW
THB23.902
Each: (In a Pack of 5)
Units
PLCC Socket SMD Female 28 - 1.27mm Straight Phosphor Bronze Tin over Nickel 1.0A - - 100 V ac Solder
RS Stock No. 500-8043
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.IC149-100-014-B5
Brand :Yamaichi
THB7,805.91
Each
Units
Prototyping Socket QFP Female 100 - 0.65mm Straight Copper Alloy Gold - Surface Mount - - Solder
RS Stock No. 549-4876
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.PLP-068-N110-99-HCP-068
Brand :E-TEC
THB257.63
Each
Units
PLCC Socket - Female 68 - 2.54mm Straight Phosphor Bronze Tin over Nickel 1.0A - - - Solder
RS Stock No. 674-2555
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.A-CCS 084-Z-T
Brand :ASSMANN WSW
THB48.108
Each: (In a Pack of 5)
Units
PLCC Socket DIP Female 84 - 1.27mm Straight Phosphor Bronze Tin over Nickel 1.0A - - 100 V ac Solder
RS Stock No. 767-012
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.216-7224-55-1902
Brand :3M
THB885.85
Each
Units
Test Socket SOIC Female 16 2 1.27mm Straight Beryllium Copper Gold over Nickel 1.0A Through Hole - - Solder
RS Stock No. 164-0739
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.1939738-1
THB186.086
Each (In a Box of 200)
Units
- - - - - - - - - - - - - -
RS Stock No. 783-0016
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.3-1437508-6
THB501.48
Each
Units
Transistor Socket - Female 8 - 5.08mm Straight Beryllium Copper Gold 3.0A - - 500 V -
RS Stock No. 674-2561
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.A-CCS 032-Z-SM
Brand :ASSMANN WSW
THB16.47
Each: (In a Pack of 5)
Units
PLCC Socket SMD Female 32 - 1.27mm Straight Phosphor Bronze Tin over Nickel 1.0A - - 100 V ac Solder
RS Stock No. 211-219
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.8444-11B1-RK-TP
Brand :3M
THB40.70
Each (In a Tube of 25)
Units
PLCC Socket - Female 44 - 1.27mm Straight Copper Alloy Tin over Nickel - - - - Solder
RS Stock No. 701-9411
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.540-88-084-24-008
Brand :Preci-Dip
THB55.784
Each: (In a Pack of 5)
Units
PLCC Socket DIP Female 84 - 1.27mm Straight Phosphor Bronze Tin 1.0A - - 100 V ac, 150 V dc Solder
RS Stock No. 401-992
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.W3401G
Brand :Winslow
THB74.098
Each: (In a Pack of 5)
Units
Transistor Socket - Female 8 - - Straight Phosphor Bronze Gold 1.0A - - 100 V dc Solder
RS Stock No. 435-0652
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.W9328
Brand :Winslow
THB644.12
Each
Units
PLCC Socket SMD Male 84 - 1.27mm Right Angle - - - - - - -
RS Stock No. 674-2545
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.A-CCS 044-Z-T
Brand :ASSMANN WSW
THB36.084
Each: (In a Pack of 5)
Units
PLCC Socket DIP Female 44 - 1.27mm Straight Phosphor Bronze Tin over Nickel 1.0A - - 100 V ac Solder
RS Stock No. 182-2961
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.69802-432LF
Brand :Amphenol ICC
THB22.715
Each (On a Reel of 3900)
Units
PLCC Socket SMD Female 32 - 1.27mm - Copper Alloy Tin 1.0A - - 120.0 V Solder
RS Stock No. 182-2967
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.69802-432LF
Brand :Amphenol ICC
THB41.476
Each: (In a Pack of 5)
Units
PLCC Socket SMD - - - - - - - - - - - -
RS Stock No. 543-3540
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.IC160Z-0844-300
Brand :Yamaichi
THB500.006
Each: (In a Pack of 5)
Units
PLCC Socket - Female 84 - 1.27mm Straight Copper Alloy Tin Bismuth Alloy 1.0A - - - Solder
